Manufacture |
EMERSON/EPRO |
|
Model |

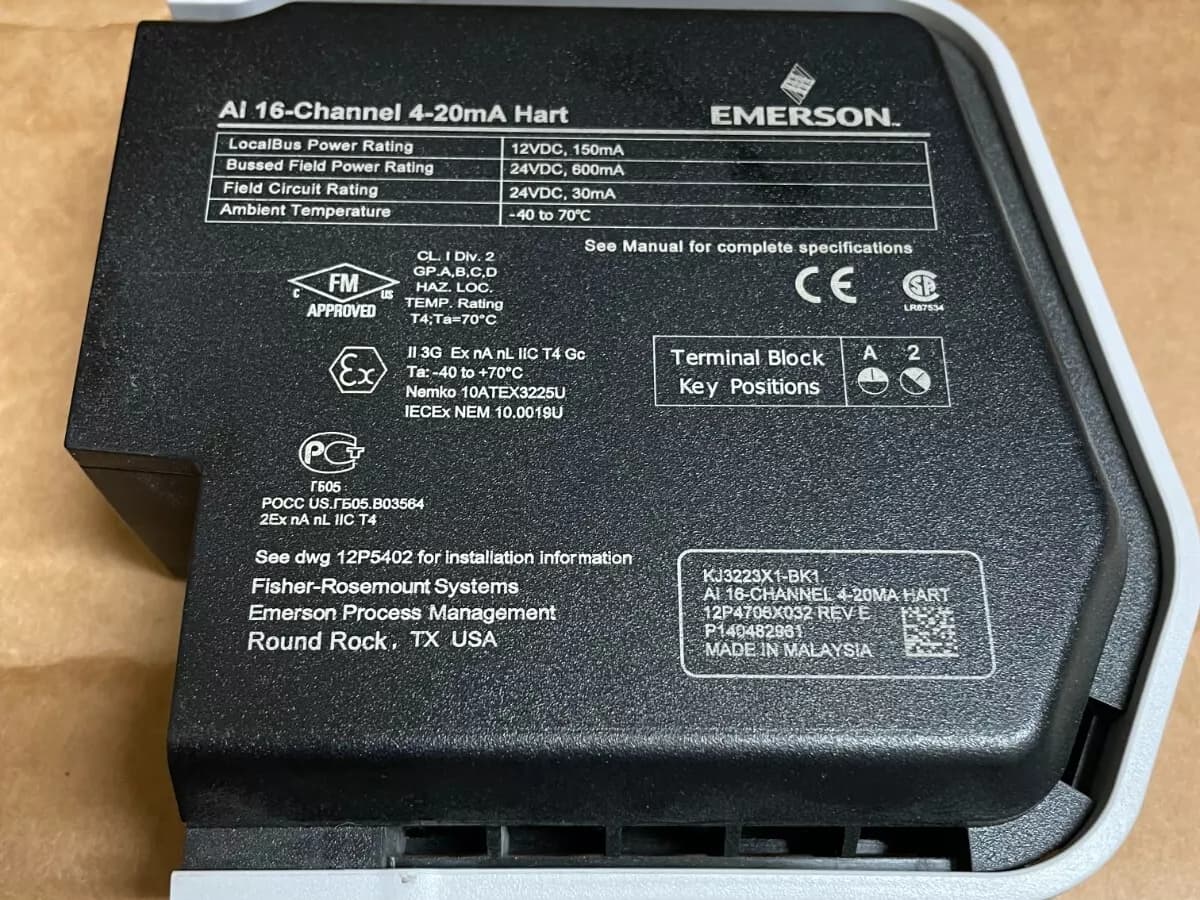

KJ3223X1-BK1 |
| PN No. |
12P4706 |
| Catalog | N/L |
|
Description |
ANALOG INPUT 16-CH 4-20MA HART |
| Origin | U.S.A./Germany |
| HS CODE |
85389091 |
| Dimension |
22*14*5 (CM) |
| Weight | 0.6 kg |
Description:
The AI 8-Channel 4-20 mA HART Card is a specialized analog input card designed for integration into Emerson’s DeltaV S-Series systems. This card provides essential process automation capabilities by receiving and processing analog signals from field devices, facilitating precise control and monitoring in industrial environments.
Specifications
Type : Analog input module.
Channels : 16 AI channels.
Input signal : 4-20mA with HART communication.
Power supply :
Local bus power supply : 12V DC at 150mA.
Bus power supply : 24V DC at 600mA.
Field circuit power supply : 24V DC at 30mA per channel.
Operating temperature : -40°C to +70°C.
Shock resistance: 10g half-sine wave for 11ms.
Vibration resistance: 1 mm from tip to tip (2-13.2 Hz), 0.7 g (13.2-150 Hz).
Airborne contaminants: ISA-S71.04 Class G3.
Relative humidity: 5% to 95% non-condensing.
Safety certificates :
ATEX, IECEx, FM approvals for hazardous areas.
Class I, Division 2, Groups A, B, C, D.
FAQ & Contact:
Q: Are you a trading company or a manufacturer?
A: We are a trading company.
Q: What is your lead time?
A: It usually takes one to three days if we have it in stock. If the goods are not in stock, you need to negotiate.
Q: Does your company provide samples? Is it free or do you charge extra?
A: It depends on the goods you need and the quantity you order.
Q: What are your terms of payment?
A: 100% T/T before shipping. If the quantity is large, we can negotiate.
Datasheet Link:
KJ3223X1-BK1 Emerson Signal Conditioning Isolation Transmitter PDF Datasheet
