Manufacture |
EMERSON/EPRO |
|
Model |
KJ3203X1-BK1 |
| PN No. |
12P4694 |
| Catalog | N/L |
|
Description |
DeltaV Discrete Input Card 32 Channel |
| Origin | U.S.A./Germany |
| HS CODE |
85389091 |
| Dimension |
22*14*5 (CM) |
| Weight | 1 kg |
Description:
KJ3203X1BK1

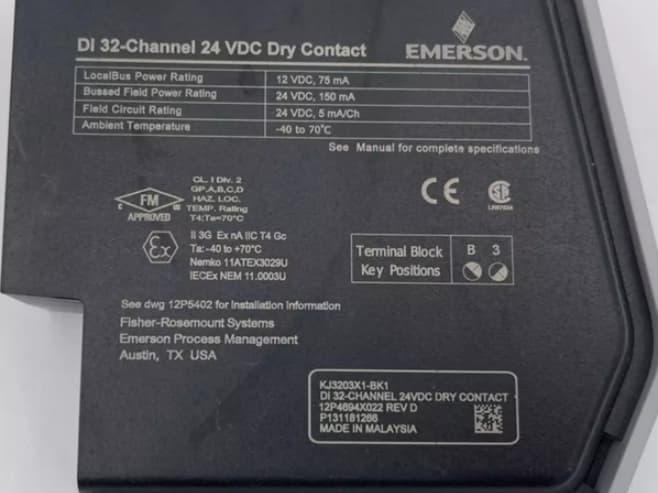

Product Type : S-Series DI 32-Channel 24 VDC Dry Contact CardChannels: It has 32 channels that can handle 24 VDC dry contact inputs.
LocalBus power rating: 12 VDC at 75 mA.
Bussed field power: 24 VDC at 150 mA.
Field circuit rating: 24 VDC at 5 mA/channel.
Environmental Specifications:
Ambient Temperature: -40 to 70°C.
Shock: 10g ½ Sinewave for 11 msec.
Vibration: 1mm Peak to Peak from 5 to 16Hz; 0.5g from 16 to 150Hz.
Airborne Contaminants: Class G3.
Relative Humidity: 5 to 95% Non-Condensing.
Safety: It is designed for use in hazardous atmospheres and has specific instructions for installation, removal, and operation in such areas.
Other Specifications:
Terminal block key: B3 position.
This unit may be removed or inserted while system power is energized under certain conditions.
This unit contains no user serviceable parts and should not be disassembled for any reason.
Calibration is not required.
Life cycle status: End of life, DISCONTINUED by manufacturer.
Designed use: This card is part of the DeltaV Digital Automation System and is used for monitoring and controlling digital signals in an industrial environment.
