Manufacture |
EMERSON/EPRO |
|
Model |
KJ3225X1-BK1 |
| PN No. |
SE4003S6B1 |
| Catalog | N/L |
|
Description |
DELTAV KJ3225X1-BK1 AI 8 CH RTD/RESISTANCE INPUT |
| Origin | U.S.A./Germany |
| HS CODE |
85389091 |
| Dimension |
22*14*5 (CM) |
| Weight | 1kg |
Description:

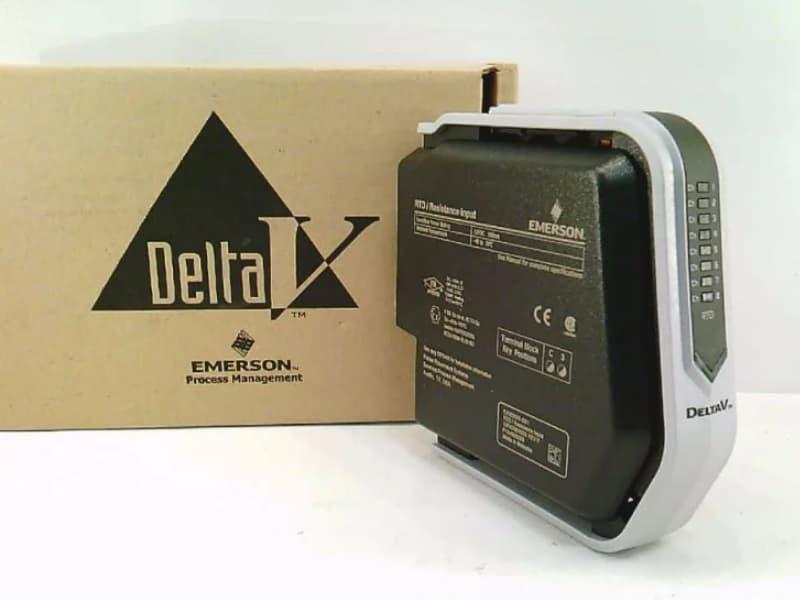

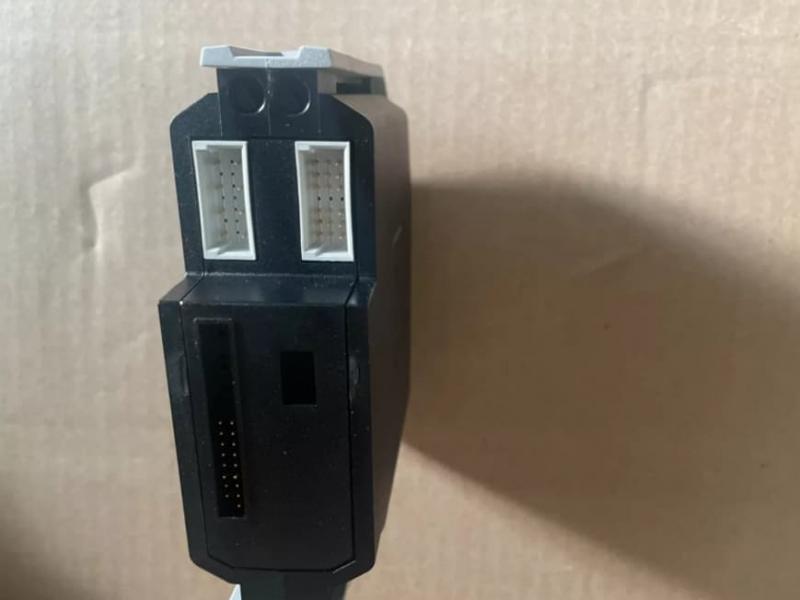

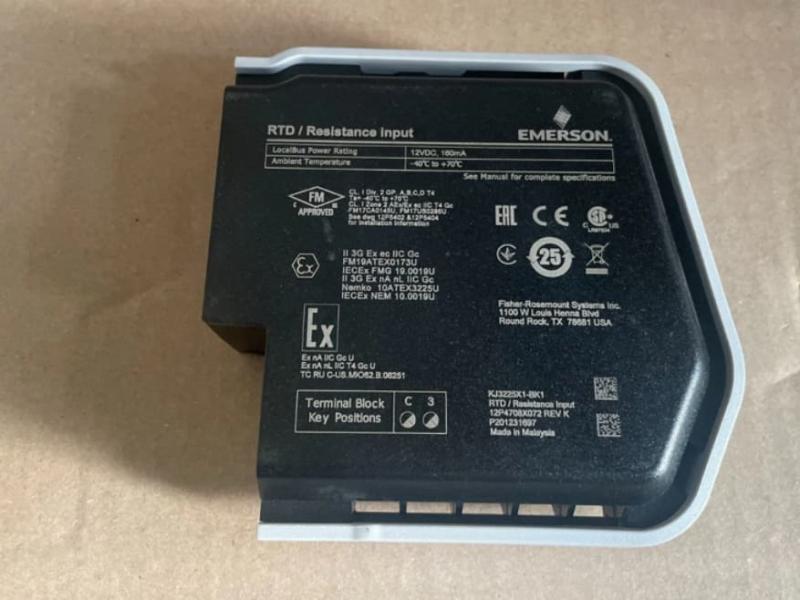

KJ3225X1-BK1
Product Type : DELTAV KJ3225X1-BK1 AI 8 CH RTD/RESISTANCE INPUT
Application: Suitable for hazardous atmospheres (ATEX certified)
Specifications:
Power Supply:Local Bus Power: 12 VDC at 160 mA
Environmental Specifications:
Ambient Temperature: -40°C to +70°C
Shock: 10g 1/2 Sinewave for 11 msec
Vibration: 1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz
Airborne Contaminants: Class G3 (5 to 95% Non-Condensing)
Relative Humidity: 5 to 95% Non-Condensing
Safety: It is designed for use in hazardous atmospheres and has specific instructions for installation, removal, and operation in such areas.
Removal and Insertion: Field power supplied to this device, either at the field terminal or as bussed field power through the Carrier, must be removed before removing or connecting the device. This unit cannot be removed or inserted with system power energized.
Maintenance and Adjustment: This unit contains no user-serviceable parts and should not be disassembled for any reason. Calibration is not required.
Life cycle Status: End of Life - Discontinued.
Can also be installed as a redundant pair for critical applications needing the highest availability. The interfaces automatically detect the presence of the redundant terminal block and are auto-sensed by the system as a redundant pair. There is no additional configuration. Use redundant Serial interfaces with slave devices that support redundant serial ports.
Q: Are you a trading company or a manufacturer?
A: We are a trading company.
Q: What is your lead time?
A: It usually takes one to three days if we have it in stock. If the goods are not in stock, you need to negotiate.
Q: Does your company provide samples? Is it free or do you charge extra?
A: It depends on the goods you need and the quantity you order.
Q: What are your terms of payment?
A: 100% T/T before shipping. If the quantity is large, we can negotiate.
Datasheet Link:
KJ3225X1-BK1 Emerson Signal Conditioning Isolation Transmitter PDF Datasheet
