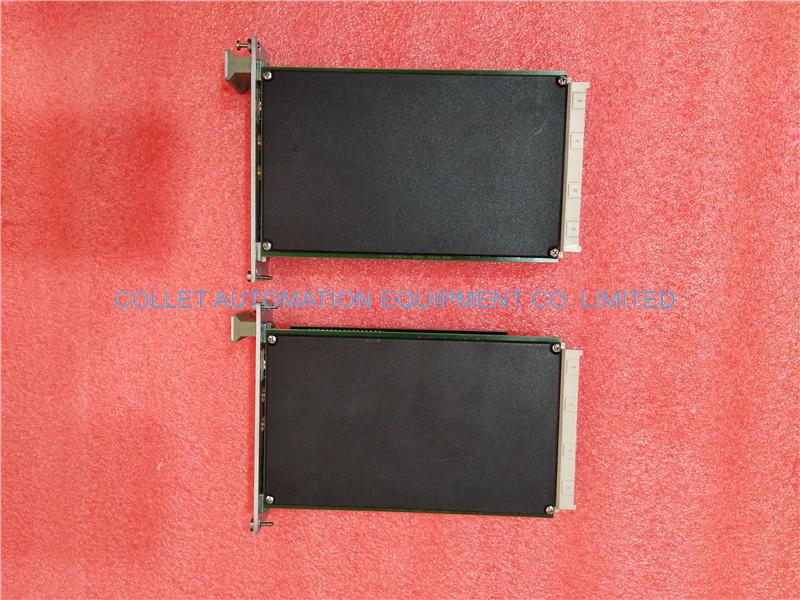

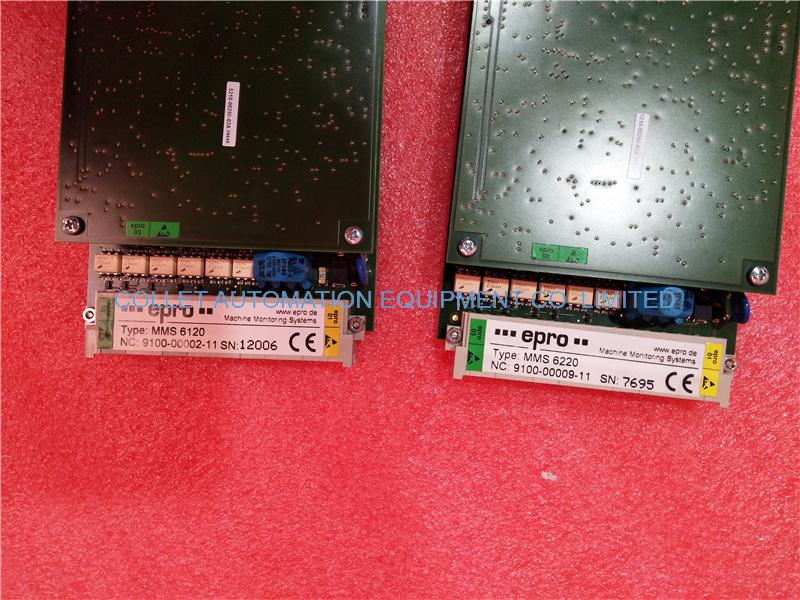

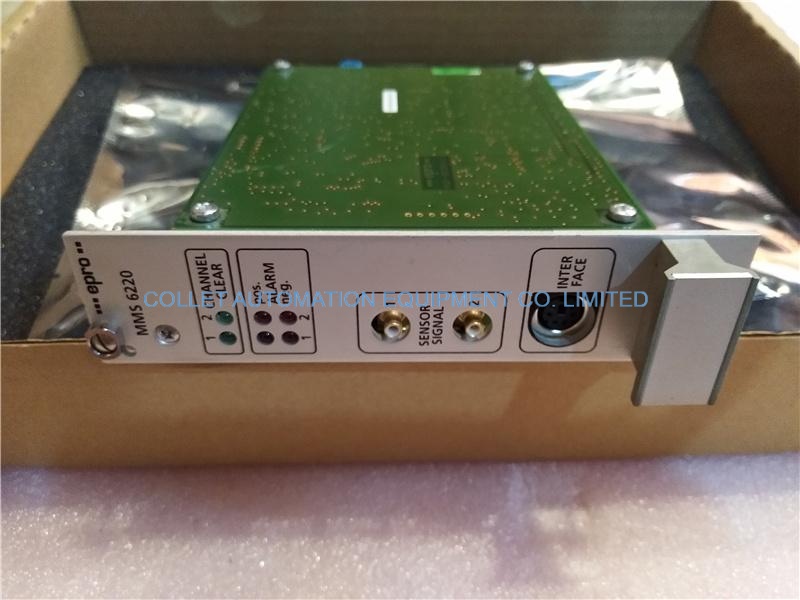

EPRO MMS6220 Dual Channel Shaft Eccentricity Monitor

Description:

The Epro MMS 6220 stands as a pinnacle in shaft eccentricity monitoring, meticulously crafted toensure the continuous and reliable monitoring of rotating machinery. As a member of the esteemed MMs6000 family, it offers advanced features and capabilities, ensuring the smooth operation of criticalequipment across diverse industries.

Parameters:
Model Number:MMS6220

Input Voltage Range: -1…-23 V DC.
Signal Frequency Range: 0.017…70 Hz (1.02…4200 rpm).
Control Inputs: Common logic inputs for both channels.
Voltage Inputs: Two inputs, one for each channel, ranging from 0 to 10 V.
Input Impedance: ≥100 kOhm.
Resolution: 10 bit
Measurement Range:0to10mm(0to 0.39 in)
Measurement Accuracy:±2ym(7.87 pin)
Resolution:0.1um(0.0039 in)
Sampling Rate:Up to 10 kHz
Analog 0utput:0to10VDC,proportional to eccentricity
Digital 0utput:RS-485，Modbus
Power Supply:24 VDC

Features:

-Part of the MMS 6000 machine monitoring system
-Usable with epro eddy current sensors of the PR 642X series
-RS 232 interface for configuration and reading out of measuring results
-RS 485 interface for connection to epro’s MMS 6850 analysis and diagnosis system or to host computers
-Integrated microcontroller.
-Records and stores characteristic values from the last run-up or run-down.
-Self-test functions for electronic circuits and transducers.RS 232 interface for configuration and reading out measuring results.
