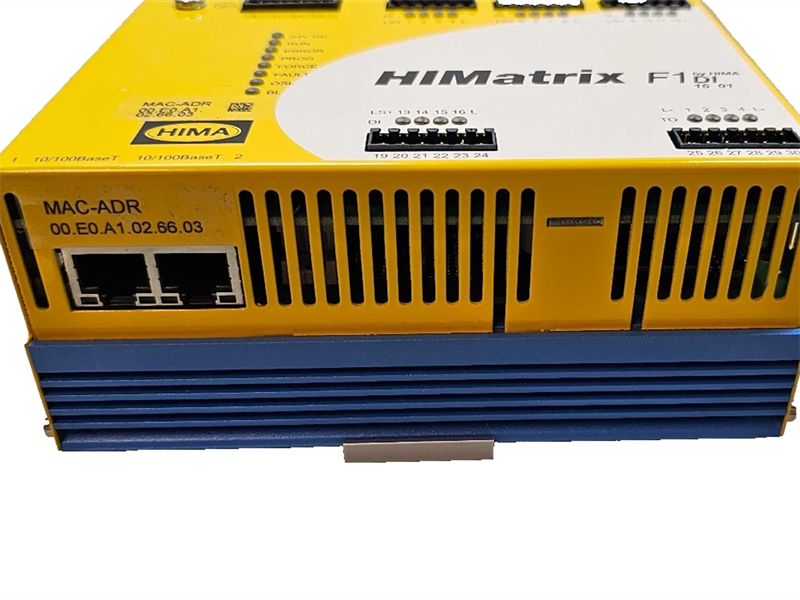

F1 DI 16 01 HIMA 98220045 Safety-Related Controller

The safety-related F1 DI 16 01 remote I/O is a compact system in a metal enclosure with 16 digital inputs and 4 pulsed outputs.

The remote I/O is available in two model variants for SILworX and two model variants for ELOP II Factory. All variants are described in this manual.

The remote I/O serves to extend the I/O level of HIMax and HIMatrix controllers, and is connected to them via safeethernet. The remote I/O itself is not able to run a user program.

The HIMatrix remote I/Os are not multi-master capable.

The remote I/O is suitable for mounting in Ex-zone 2, see Chapter 4.1.3.

The device has been certified by the TÜV for safety-related applications up to SIL 3 (IEC 61508, IEC 61511 and IEC 62061), Cat. 4 (EN 954-1) and PL e (EN ISO 13849-1). Further safety standards, application standards and test standards are specified in the certificate available on the HIMA website

The remote I/O is equipped with safety-related inputs. The input values on the inputs are safely transmitted to the connected controller via safeethernet.

The remote I/O is equipped with 16 digital inputs. The state (HIGH, LOW) of each input is signaled by an individual LED.

Mechanical contacts without own power supply or signal power source can be connected to the inputs. Potential-free mechanical contacts without own power supply are fed via an internal short-circuit-proof 24 V power source (LS+). Each 24 V power source supplies a group of 4 mechanical contacts. Figure 1 shows how the connection is performed

With signal voltage sources, the corresponding ground must be connected to the input (L-), see Figure 1.

Specifications:

Safety-Related: Applicable up to SlL 3 (IEC 61508)
Microprocessor: Intel 386EX 32-bit
Clock Frequency: 25 MHz

• Memory

Features:

• High Reliability

Rigorously tested and verified, ensuring stability and reliability in harsh environments.

• Security

Integrated with multiple security features, it provides a high level of system security.

• Flexibility

Flexible configuration and expansion capabilities allow for customization and integration based on customer needs.

• High Performance

Utilizes advanced processors and algorithms for fast and efficient data processing and control.
