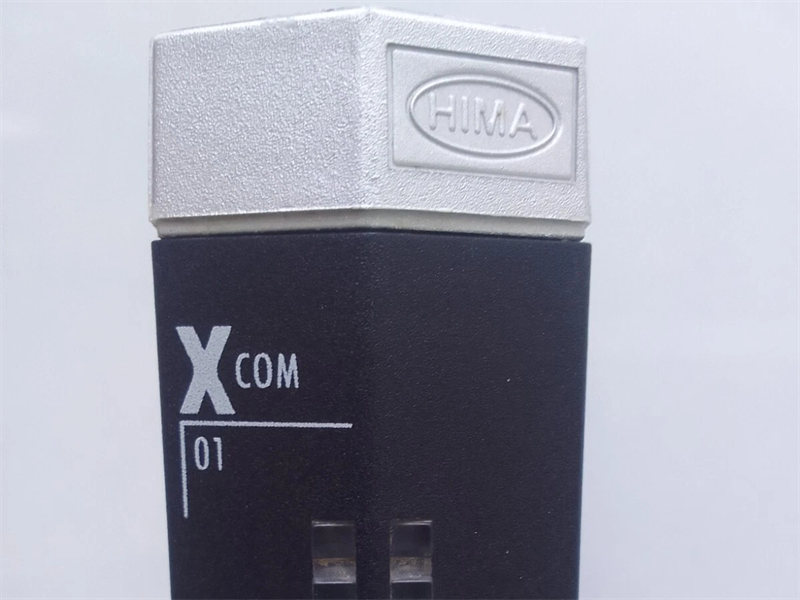

X-COM 01 HIMA 985260000 HIMax Communication Module

The X-COM 01 communication module is intended for use in the programmable electronic system (PES) HIMax.

The module is inserted into any of the base plate slots with the exception of the slots reserved for system bus modules. For more information, refer to the System Manual (HI 801 001 E).

The module is approved for use in the safety-related HIMax system and can be used to transport safety-related protocols.

The module ensures communication with systems via Ethernet and fieldbus interfaces with safeethernet and different standard protocols.

Each COM module forms a functional unit with the X-CB 001 02 connector board. Note that the connector board must be separately purchased.

The fieldbus submodules are optional and must be mounted by the manufacturer. The fieldbus submodule is selected when ordering the controller using the part number. Additionally, the protocols used must be activated.

When the module is equipped with one or multiple fieldbus submodules, the part number and also the module name changes from X-COM 01 to X-COM 010 XY.

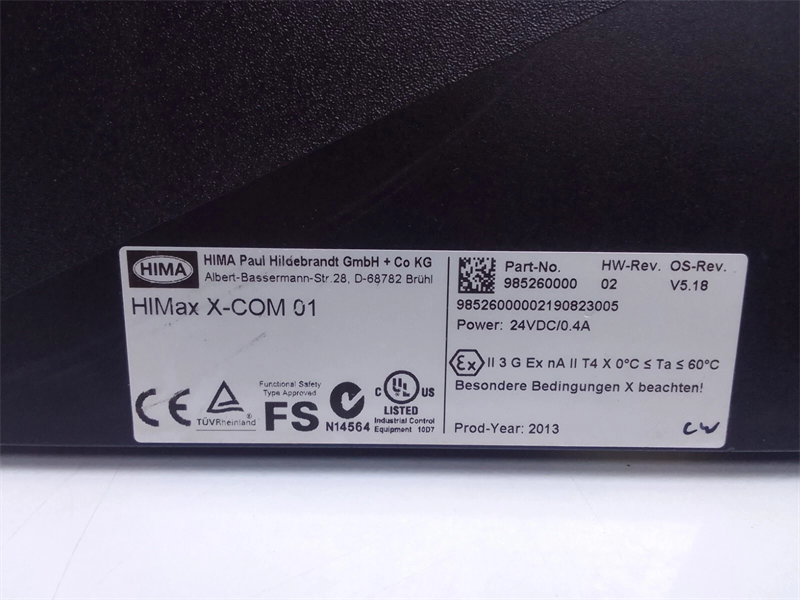

Type Label

• The type label specifies the following important details:
• Product name
• Mark of conformity
• Bar code (2D or 1D code)
• Part number (Part-No.)
• Hardware revision index (HW Rev.)
• Software revision index (SW Rev.)
• Operating voltage (Power)
• Ex specifications (if applicable)
• Production year (Prod-Year:)

The LEDs on the module are divided into three groups:

1. Module status indicators (Run, Error, Stop, Init)
2. System bus indicators (A, B)
3. Fieldbus indicators (1, 2, Fault)
4. Communication indicators (Ethernet)

Specifications:

Supply voltage 24 VDC, -15 %...+20 %, rP ≤ 5 %, SELV, PELV
Current input min. 0.25 A
max. 0.46 A
Operating temperature 0 °C...+60 °C
Storage temperature -40 °C...+85 °C
Humidity max. 95 % relative humidity, non-condensing
Type of protection IP20

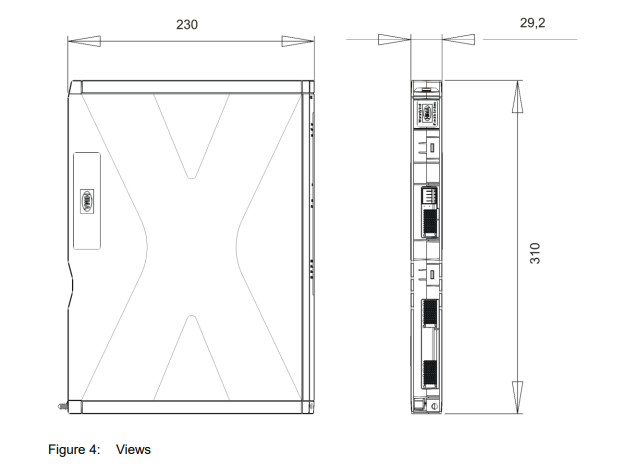

Dimensions (H x W x D) in mm 310 x 29.2 x 230
Weight approx. 1.3 kg

Features:

• High Reliability

Rigorously tested and verified, ensuring stability and reliability in harsh environments.

• Security

Integrated with multiple security features, it provides a high level of system security.

• Flexibility

Flexible configuration and expansion capabilities allow for customization and integration based on customer needs.

• High Performance

Utilizes advanced processors and algorithms for fast and efficient data processing and control.
