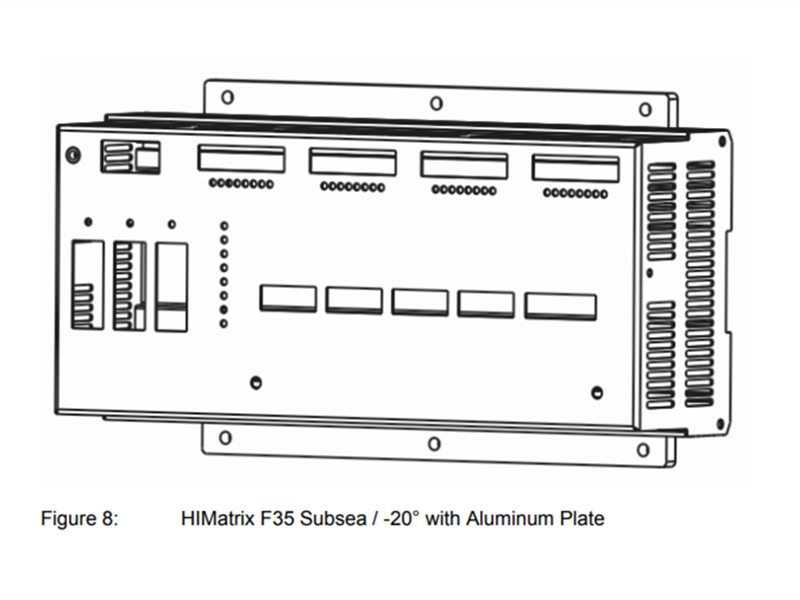

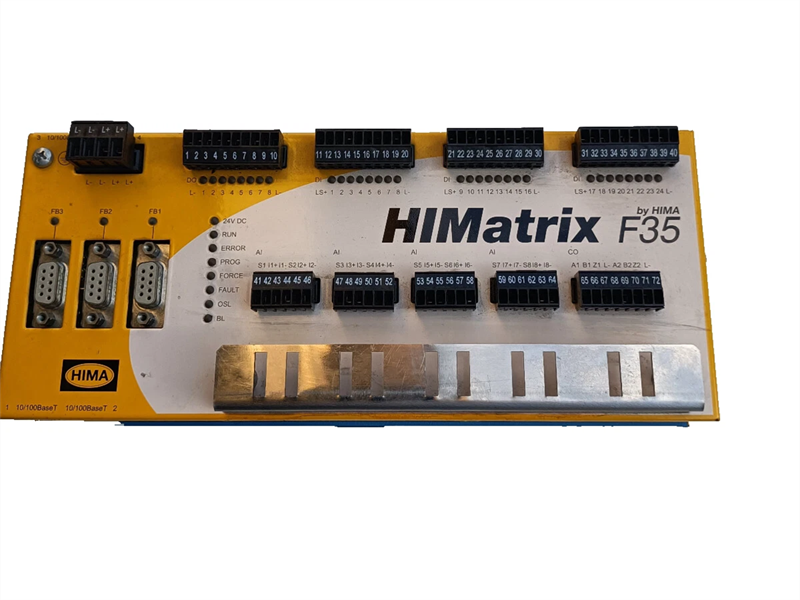

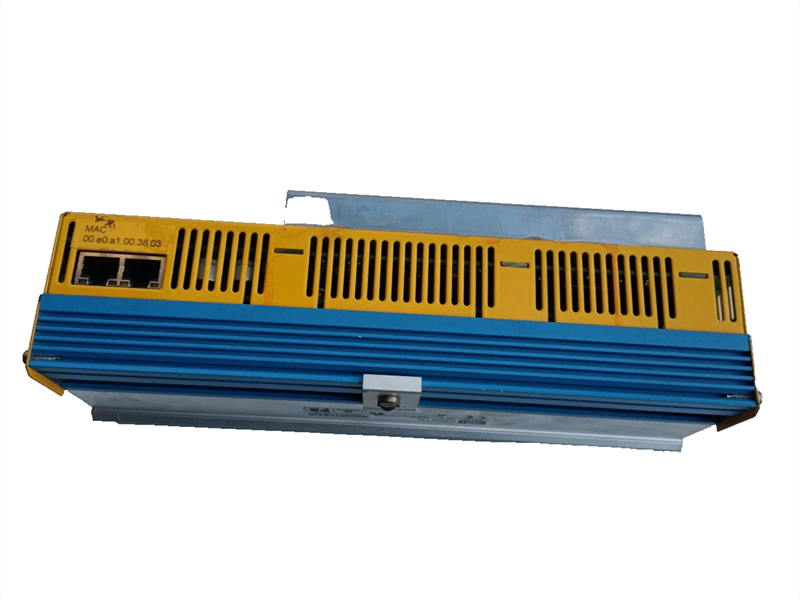

F35 011 HIMA 982200416 Safety-Related Controller

The HIMatrix F35 011 model variant is intended for use at the extended temperature range of -20…+60 °C. The electronic components are coated with a protective lacquer.

Safety Function
The module measures the current of the connected devices with safety-related accuracy, providing the transmitter supply with a guaranteed minimum voltage.

The safety function is performed in accordance with SIL 3.

Reaction in the Event of a Fault
If a fault occurs, the module adopts the safe state and the assigned input variables transmit the initial value (default value = 0) to the user program.

The initial values must be set to 0 to ensure that the input variables transmit the value 0 to the user program if a fault occurs. If the raw value is evaluated instead of the process value, the user must program the monitoring function and the value in the event of faults from within the user program.

The module activates the Error LED on the front plate.

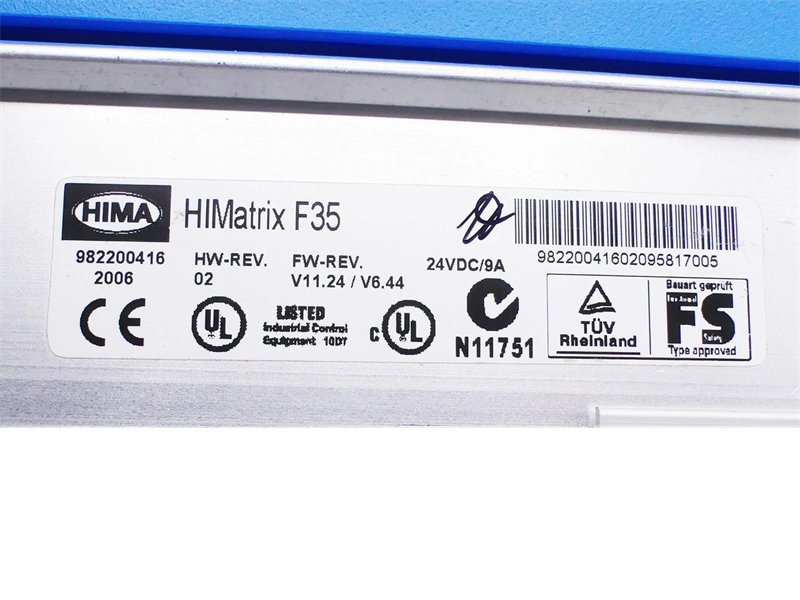

Type Label

• The type label specifies the following important details:
• Product name
• Mark of conformity
• Bar code (2D or 1D code)
• Part number (Part-No.)
• Hardware revision index (HW Rev.)
• Software revision index (SW Rev.)
• Operating voltage (Power)
• Ex specifications (if applicable)
• Production year (Prod-Year:)

QA:

Q1: What is the safety integrity level (SIL) of the F35 011?
A1: The F3335 is certified for safety-related applications up to SIL 3 according to IEC 61508.

Q2: Can the F35 011 be used in hazardous areas?
A2: Yes, it has ATEX EC Type Examination Certificate for [EEx ib] IIC, suitable for Zone 1 applications. The outputs are intrinsically safe.

Q3: What types of field devices can be connected?
A3: It can control intrinsically safe solenoid valves (see list in datasheet) and supply 0/4-20 mA intrinsically safe transmitters.

Q4: Does the module require cooling?
A4: Yes, forced ventilation via fan (K9203 or K9212) is mandatory. In H41q subrack, fan K9212 must be installed directly under the module.

Q5: Can outputs be wired in parallel?
A5: Yes, two output circuits of one or two X-BLK01 modules can be wired in parallel for redundant operation, respecting reduced maximum values.
