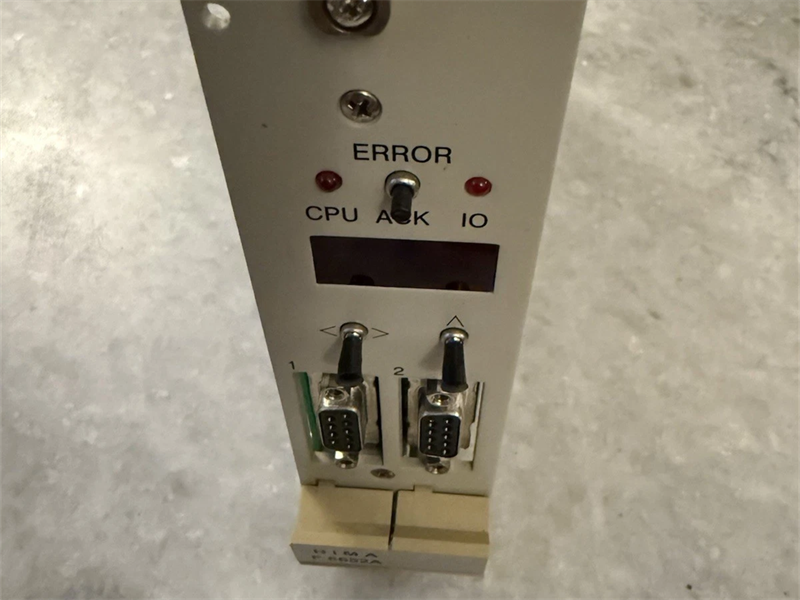

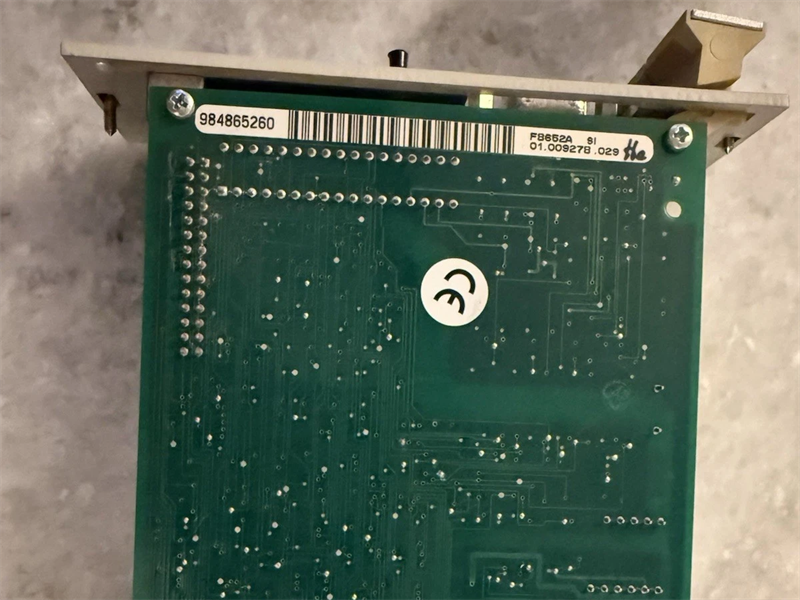

F8652A HIMA 984865260 Central Module [H41q]

HIMA Paul Hildebrandt GmbH + Co KG requested an examination of modifications and new module options to the apparatus described in Section 2.1 to be in compliance with the applicable requirements of the standards listed in section 1.4. Initial evaluation and testing of the suitability for use in hazardous (classified) location were conducted as part of examination 3008234.

The modifications consist of:
1) New model F8627 to replace the model F8625 with new Ethernet functionality.
2) Models F3333 and F3334 have minor component changes not affecting listing.
3) Model F5220 has a new layout and minor component additions not affecting listing.
4) New models F8650E, and F8652E, similar to the models F8650, F8652, F8650A, F8652A, but with increased RAM and Flash Eprom memory.
5) Model F6220, has minor component changes not affecting listing.
6) Model F8621A, has minor component changes not affecting listing.
7) New model F3248 is a 48 volt version of the F3240.
8) New model F8628 Profibus -DP- Communication
9) New model F6221 Analog Input module

H41, H51, H41q, H51q, Automation Systems Modules
NI /I/2 /ABCD; T4 Ta = 60°C

Module Name Description
F3221 16 Fold Input Module
F3236 16 Fold Input Module, Safety related
F3237 8 Fold Input Module for Prox. Sw., Safety related
F3240 16 Fold Input Module, Safety related 120 V ac/dc
F3248 16 Fold Input Module, Safety related, 48 V ac/dc
F3322 16 Fold Output Module
F3330 8 Fold Output Module, Safety related
F3331 8 Fold Output Module, Safety related
F3333 4 Fold Output Module, Safety related
F3334 4 Fold Output Module, Safety related
F3422 8 Fold Relay Module
F3430 4 Fold Relay Module, Safety related
F5220 2 Fold Counter Module, Safety related
F6214 4 Fold Analog Input Module, Safety related
F6215 8 Fold Analog Input Module
F6216A 8 Fold Analog Input Module w/Transmitter Supply
F6220 8 Fold Thermocouple Input Module, Safety related
F6221 8 Fold Analog Input Module, Safety related
F6705 2 Fold Analog Output Module, Safety related
F6706 2 Fold Analog Output Module
F7126 (H51) Power Supply Module
F7130A (H41) Power Supply Module
F7131 (H51) Power Supply Monitoring w/Buffer Batteries
F7133 4 Fold Power Distribution
F7553 (H51) Coupling Module
F9430 (H11) 24 Binary or Digital Inputs 24 V dc;
    24 Binary or Digital Outputs 24 V dc, 12 W
F8621A Coprocessor Module
F8625 Communications Module for Ethernet
F8626 Communications Module for Ethernet and Profibus
F8627 Communication Module for Ethernet 10/100MBit
F8628 Communication Module for Profibus-DP
H4135 Relay Module in Terminal Case, Safety related
H7505 Multifunctional Interface Module
H7506 Bus Terminal
K7915 Decoupling, Feeding, and Fusing Subrack
K9202 Cabinet Fan Module
K9203 Fan Module/19-inch Subrack
Z6015 EMC Filter
