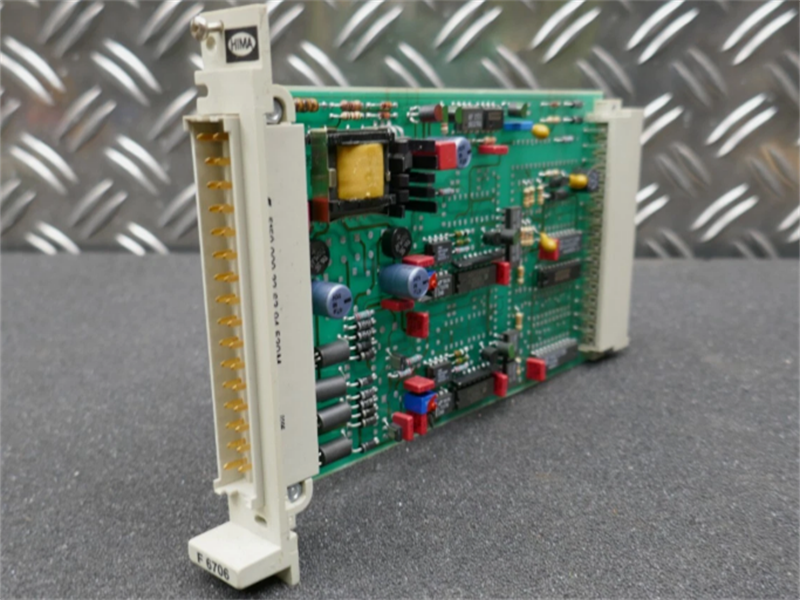

F6706 HIMA 2-Channel Safety Analog Output Module

The HIMA F6706 is a dual-channel safety analog output module designed specifically for HIMA HIMatrix Safety Instrumented Systems (SIS). It is commonly used in critical process industries such as chemical, petrochemical, oil and gas, and power generation. TÜV AK6/SIL3 certified (compliant with IEC 61508 and IEC 61511 standards), it converts digital control signals into precise 4-20 mA or 0-10 V analog outputs.

It is designed for integration with safety-related systems to ensure safe and reliable operation, prevent accidents, and protect personnel and assets from hazardous conditions.

This module is typically used in conjunction with HIMA's HIMax or HIQuad safety controllers, providing robust redundancy, diagnostic capabilities, and real-time monitoring to meet the high safety requirements of industrial environments.

Parameters:

Product Name:F6706
Output Channels: 2 Independent Safety Analog Output Channels
Output Signals: 4‑20 mA DC (Current), 0‑10 V DC (Voltage) (Selectable per Channel)
Resolution: 12‑Bit (4096 Steps)
Accuracy: ±0.1% of Full Scale (25°C, Typical)
Load Capacity: 500 Ω (4‑20 mA), 10 kΩ (0‑10 V)
Safety Isolation: Class AK 1‑6 (TÜV Compliant)
Short‑Circuit Protection: Short‑Circuit Proof (Max. 1.5 A Short Circuit Current)
Response Time: Typical 250 ms (Including Filter & Conversion)
Power Supply: 5 V DC (150 mA), 24 V DC (200 mA)
Operating Temperature: -20°C to +60°C (-4°F to +158°F)
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
Humidity: 5%‑95% RH (Non‑Condensing)
Protection Class: IP20 (Indoor Cabinet Mount)
Space Requirement: 4 TE (DIN Rail Mount)

Features:

• SIL3 Safety Certification

TÜV AK6/SIL3 certified, meeting the highest safety standards for critical applications.

• Dual-Channel Isolation

Independent isolation between channels and power supply to prevent cross-interference.

• High Precision

12-bit resolution and ±0.1% accuracy enable precise process control.

• Short-Circuit Protection

Built-in short-circuit protection design protects the module and connected loads.

• Real-Time Diagnostics

Self-diagnostic functions include fault detection, alarms, and predictive maintenance.

• Hot-Swapping

Replacement is possible without shutting down the system (in redundant configurations), reducing downtime.

• Flexible Configuration

Output type (current/voltage) can be selected for each channel via HIMatrix Engineering Studio.

• Redundancy and Fault Tolerance

Built-in fault detection, diagnostics, and redundancy functions ensure continuous safe operation.

• Safety Standard Compliance

Complies with relevant safety standards such as IEC 61508 and IEC 61511.

• Multi-Function I/O Configuration

Capable of managing digital and analog signals, making it flexible for various industrial applications.

Datasheet Link:

F6706 HIMA 2-Channel Safety Analog Output Module PDF Datasheet
