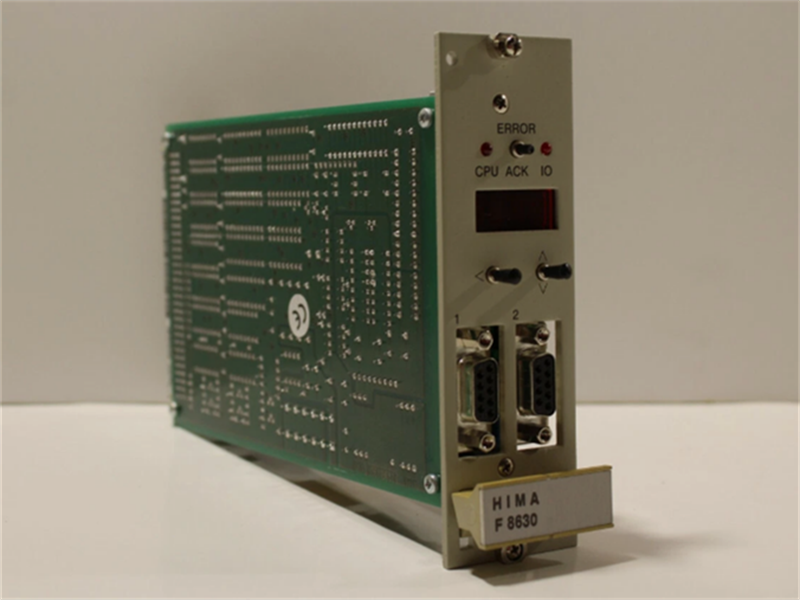

F8630 HIMA Safety System Functional Module

The HIMA F8630 Module is a functional system component designed for use within HIMA safety-related automation architectures. It supports coordinated control functions and contributes to the reliable operation of industrial safety systems where functional safety, system integrity, and long-term stability are critical requirements.

As part of a modular HIMA safety platform, the F8630 module is designed to operate in close coordination with central controllers, communication modules, and I/O components. Its role within the system is to support structured system behavior and ensure consistent execution of defined control and monitoring tasks.

Parameters:

Product Name:F8630
Output Signals: 4‑20 mA DC (Current), 0‑10 V DC (Voltage) (Selectable per Channel)
Resolution: 12‑Bit (4096 Steps)
Accuracy: ±0.1% of Full Scale (25°C, Typical)
Load Capacity: 500 Ω (4‑20 mA), 10 kΩ (0‑10 V)
Safety Isolation: Class AK 1‑6 (TÜV Compliant)
Short‑Circuit Protection: Short‑Circuit Proof (Max. 1.5 A Short Circuit Current)
Response Time: Typical 250 ms (Including Filter & Conversion)
Power Supply: 5 V DC (150 mA), 24 V DC (200 mA)
Operating Temperature: -20°C to +60°C (-4°F to +158°F)
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
Humidity: 5%‑95% RH (Non‑Condensing)
Protection Class: IP20 (Indoor Cabinet Mount)
Space Requirement: 4 TE (DIN Rail Mount)

Features:

• SIL3 Safety Certification

TÜV AK6/SIL3 certified, meeting the highest safety standards for critical applications.

• Dual-Channel Isolation

Independent isolation between channels and power supply to prevent cross-interference.

• High Precision

12-bit resolution and ±0.1% accuracy enable precise process control.

• Short-Circuit Protection

Built-in short-circuit protection design protects the module and connected loads.

• Real-Time Diagnostics

Self-diagnostic functions include fault detection, alarms, and predictive maintenance.

• Hot-Swapping

Replacement is possible without shutting down the system (in redundant configurations), reducing downtime.

• Flexible Configuration

Output type (current/voltage) can be selected for each channel via HIMatrix Engineering Studio.

• Redundancy and Fault Tolerance

Built-in fault detection, diagnostics, and redundancy functions ensure continuous safe operation.

• Safety Standard Compliance

Complies with relevant safety standards such as IEC 61508 and IEC 61511.

• Multi-Function I/O Configuration

Capable of managing digital and analog signals, making it flexible for various industrial applications.

Datasheet Link:

F8630 HIMA Safety System Functional Module PDF Datasheet
