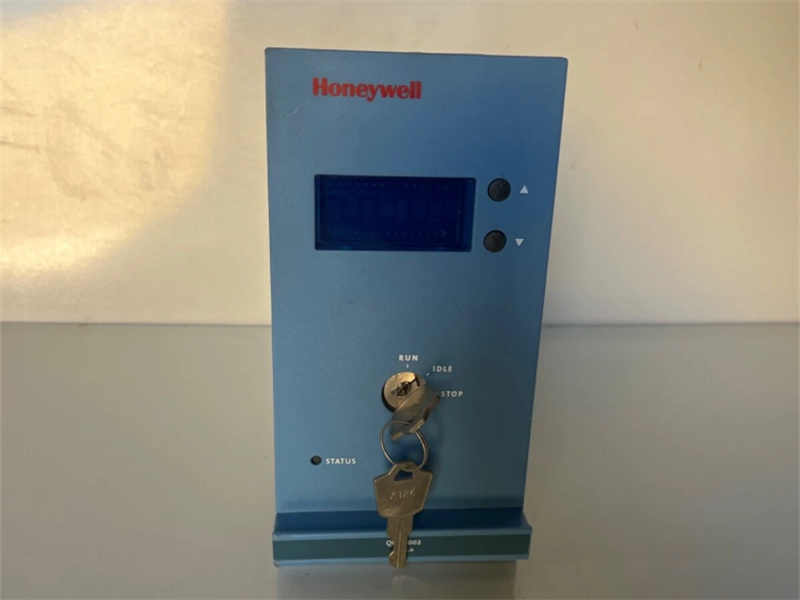

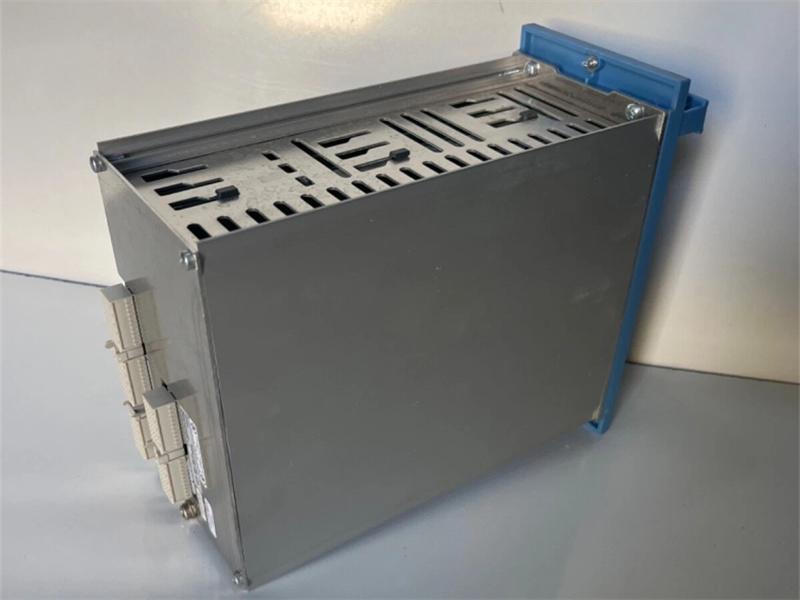

FC-QPP-0002 FC-USI-0002 FC-DCOM-232/485 Honeywell Quad Processor

Description:

The Quad Processor Pack (QPP-0002) is the second generation (enhanced performance) processing module of Safety Manager and is located in the Controller chassis (see section CPCHAS-0001 or CPCHAS-0002 or CPCHAS-0003).

The QPP-0002 is backwards compatible with, and a one-on-one spare part for the QPP-0001, when installed in Safety Managers running R121 firmware or higher.
A non-redundant Controller contains one QPP-0002 module, a redundant Controller contains two QPP0002 modules.
The slot of the Quad Processor Packs within the Controller chassis is pre-determined (see Location of Control Processor modules).
The Quad Processor Pack (QPP-0002) is the heart of Safety Manager. It controls all system operations. The QPP-0002 module reads the IO input signals and executes the Controller File as created by the user in graphical Functional Logic Diagrams (FLDs). The results of the Controller File are then transmitted to the output interfaces. In Safety Manager configurations with a redundant Controller, the two QPP-0002 modules synchronize their operation through a dedicated redundant communication link between the two Control Processors. Continuous testing of the Safety Manager hardware by the QPP-0002 module ensures safe control of the process as well as extensive system and process equipment diagnostics.
The QPP-0002 module has two processors and two memory sets. Hardware data-comparators compare every read and write action of the processors, and trip the watchdog if any difference in the data is detected. Additional test hardware enables full testing of the QPP-0002 module to achieve diagnostic coverage higher than 99%. This allows one QPP-0002 module to run applications up to and including SIL3 without time limitation. Redundant Controller configurations result in a 2oo4D voting architecture.
Details:
·Two processors running synchronously
·Flash memory for system and application program
·Flash memory for backup of system and application program
·RAM with battery backup (battery located in BKM-0001)
·A redundant communication link with the other Control Processor
·RAM for the redundant communication link data
·Data comparators for the processors and their memory
·Data exchange with its communication modules
·Minimum and maximum execution time monitor
·Memory error handler
·1oo2D functionality
·24V and 5V monitoring
·Emergency Shut Down Input (24V)
·Two outputs (for non-redundant resp. redundant IO)
Frequently Asked Questions:
1.What is the replacement model for FC-QPP-0002?
    FC-USI-0003
2. What is the IP rating?
    IP65 (dustproof and waterproof) is common.
3. How do I interpret fault codes or LED indicators?
     A solid/flashing red light may indicate a power failure or sensor malfunction.
     Refer to the fault code table in the manual for troubleshooting.
