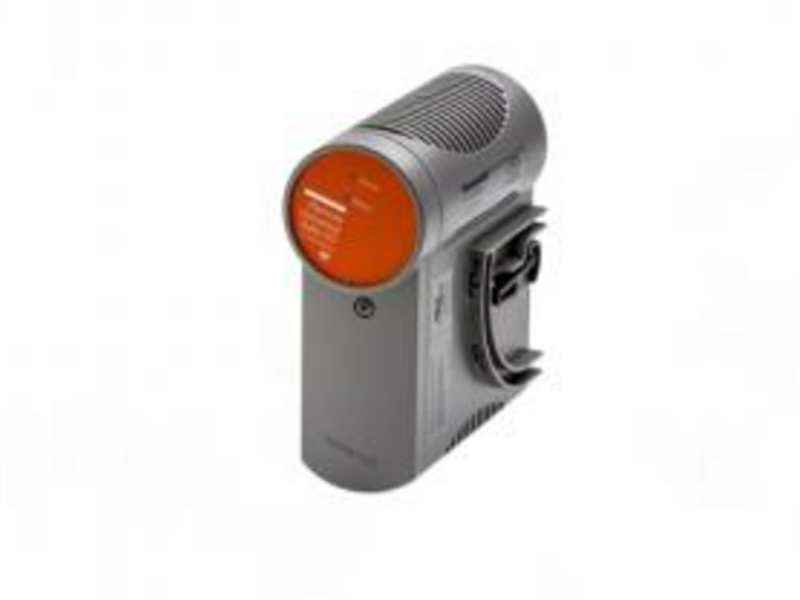

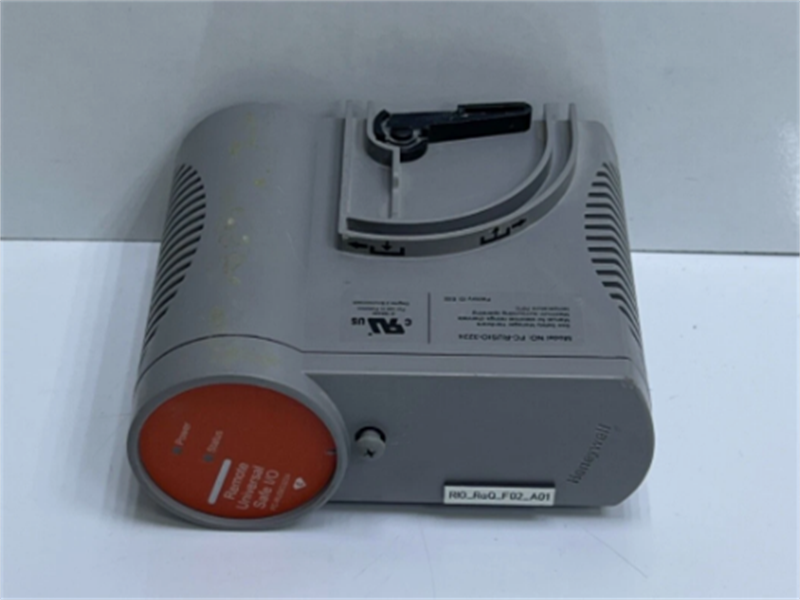

FC-RUSIO-3224 Honeywell Remote Universal Safe I/0 Module

Description:

The Honeywell FC-RUSIO-3224 is a remote, universal safety I/O device designed for industrial environments. It provides 32 channels (24V DC) of safety input/output functionality, configurable via Safety Builder. It offers a reliable interface for connecting field devices to Honeywell process control systems, ensuring safe and efficient operation. Compliant with the SIL 3 safety requirements of IEC 61508/61511 standards, it is ideal for mission-critical applications.

Parameters:

Product No. : FC-RUSIO-3224
Product Type : Remote Universal Safe I0 device (32 channels, 24 Vdc)
Operating temperature: Outside module temperature: -40°C.. 70°C(-40°F.. 158 F).
Inside moduletemperature: -40°C.. +90°C (-40°F .. +194'T)
Storage temperature:-40°C ... +85°C (-40°F ... +185°F)
Relative humidity :10... 95% (non condensing)
Approvals : CE; UL, TUV pending
Supply voltage:24 Vdc -15% ... +30%
Supply current : max 300mA (without field load)

Features:

• General Purpose I/O Channels

32 configurable channels supporting digital inputs, digital outputs, analog inputs, or analog outputs.

• Ethernet communication

Supports two 100Mbaud Ethernet links for communication with the SafetyManager controller.

• SIL 3 Certification

Meets SIL 3 safety requirements and features a verified redundant processor.

• Electrostatic Discharge Protection

ESD protection can be configured via channel 32 for dedicated safety-related functions.

• Watchdog Function

Monitors cycle time and power supply voltage, handling ESD protection and memory errors.

• High Reliability

This module offers high reliability and a long service life, capable of withstanding various harsh industrial environments.

• Efficient Communication

Supports Modbus RTU protocol transmission via RS-485 serial communication interface for fast and stable communication.

• Easy Installation and Use

This module is easy to install, with a user-friendly interface, facilitating configuration, debugging, and use.

• Multiple I/O Interfaces

Supports digital inputs/outputs and analog inputs to meet diverse control needs.

Frequently Asked Questions:

Q1.Is there stock available or how long is the lead time?
Lead time: In stock

Datasheet Link:

FC-RUSIO-3224 Honeywell Remote Universal Safe I/0 Module PDF Datasheet
