FS-CPCHAS-0001 | HONEYWELL | Controller Chassis

Description:

The Controller chassis CPCHAS-0001 is used to contain the Control Processor modules. Each Safety Manager has one Controller chassis. The Controller chassis is generally located at the top position in the  cabinet, and the IO chassis at lower positions.

A Controller chassis contains the following components:
Controller housing
Controller backplane

Controller housing

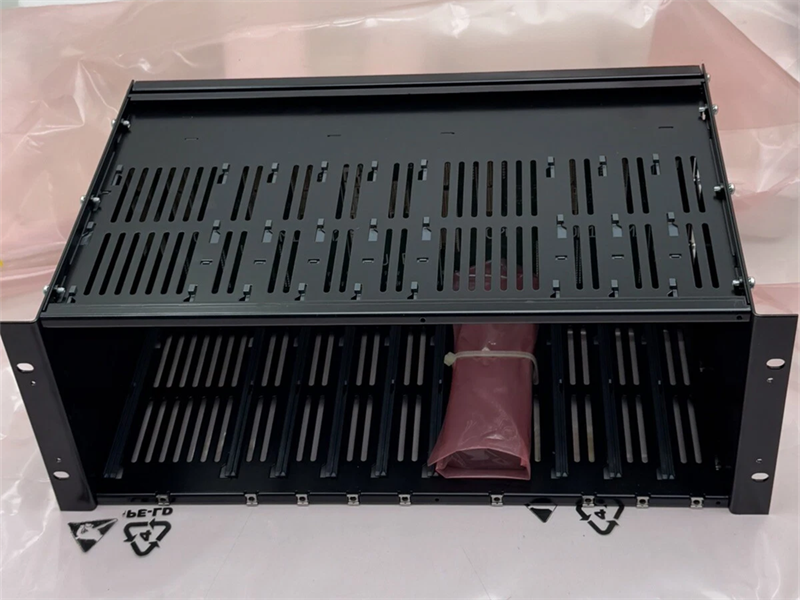

The Controller housing has been designed specifically for Safety Manager. It is a 19" housing that is open  at the front and covered at the back.

Control Processor modules are placed in the chassis through the front of the housing with the use of module guides, which are located at the bottom and top plate of the housing.

The modules are locked in the chassis with the quarter turn fasteners, located below the module-grips.

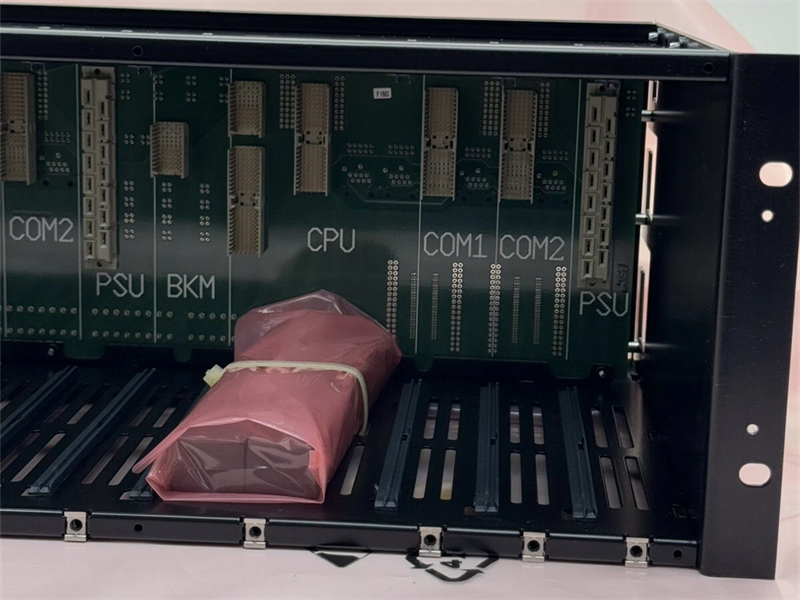

The below figure shows the front of a filled redundant Controller chassis

Specifications:

Type number1: FS-CPCHAS-0001
Approvals: CE, UL, CSA, TUV, FM
consumption 5V-1: 0.05 A
5V-2: 0.05 A

Similar Product

FS-CPCHAS-0001

FS-CPCHAS-0002

FS-CPCHAS-0002S

FS-CPCHAS-0002N

FS-CPCHAS-0003

FS-CPCHAS-0003N

FS-CPCHAS-0003S
