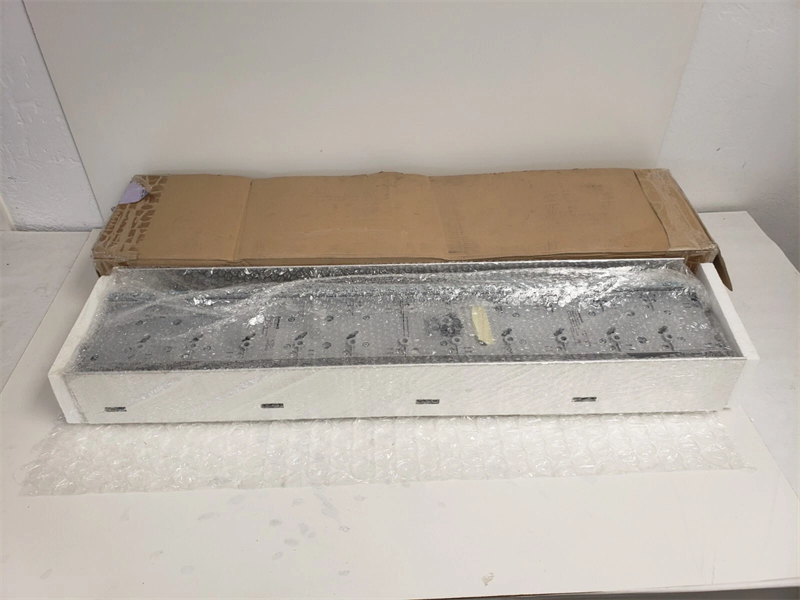

FC-MCAR-01 HONEYWELL 51403892-100 Mounting Carrier

FC-MCAR-01 HONEYWELL 51403892-100 is a carrier that can be screwed on any flat surface.

Item NO.:
FC-MCAR-01
Payment:
T/T
Market Price:
$1350
Product Origin:
U.S.A.
Color:
Depends on material
Shipping Port:
Xiamen
Lead Time:
5-7 days
Product weight:
1.1 kg

Inquiry now

product introduction

Manufacture	Honeywell
Model	FC-MCAR-01
PN No.	51403892-100
Catalog	C300
Description	Mounting Carrier
Origin	U.S.A.
HS CODE	8537101190
Dimension	481532(CM)
Weight	1.1 kg

Description:

The MCAR-01 can carry one IOTA-R24 assembly. The below figure shows the physical appearance and the coordinates of the four mounting holes.
The MCAR-01 consists of:
    A metal profile
    A plastic cover plate
    A ground rail with 16 ground connection screws
    Two power rails with M5 holes (+24V and 0V)
    Four mounting holes (6.35 mm diameter)

The IOTA-NR24 is fixed on the MCAR-01 with eight ground screws and two power screws (24V and COM).
This leaves room on the MCAR-01 for two 3 inch units or one 6 inch unit.
24Vdc power must be connected to the MCAR-01 on the power rails using M5 screws.

Specifications:

Type number: FC-MCAR-01
Operating temperature: -40 .. +70°C (-40 .. +158°F)
Storage temperature: -40 .. +85°C (-40 .. +185°F)
Relative humidity: 10..95% (non condensing)
Pollution: Pollution degree 2 or better
Approvals: CE; UL

Supply voltage: 24 V DC -15%..+30%
Supply current: none
Supply rail current: max. 40 A
24V supply: 2 x M5

Ground: 16 x M5

Similar Product

FC-MCAR-01 51403892-100

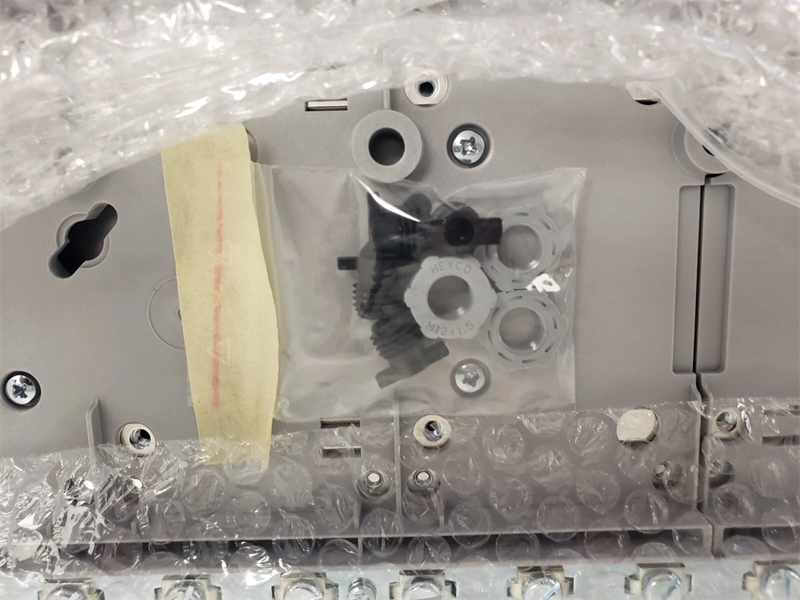

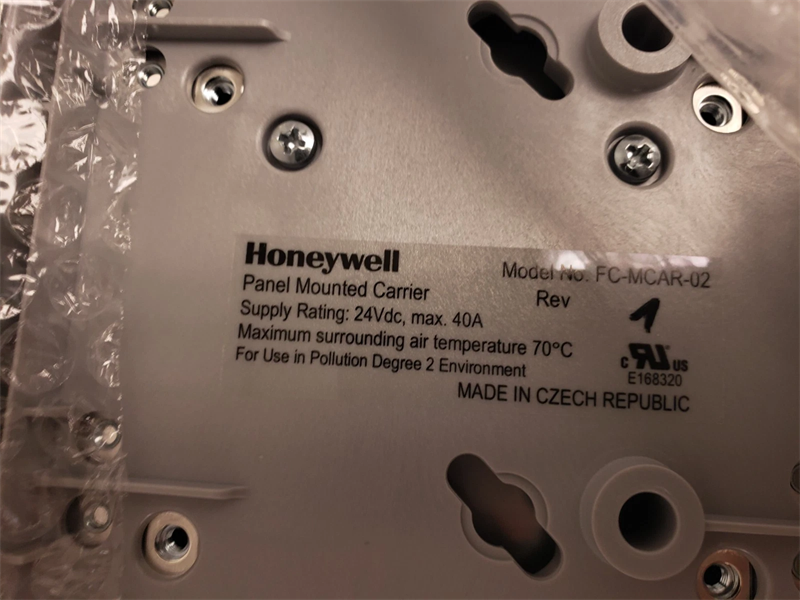

FC-MCAR-02

FC-MCAR-03

Frequently Asked Questions:
1.How to installar MCAR-01 on IOTA-NR24?
Directly MCAR-01 with a mounted IOTA-NR24

2.What is the payment term?
Only wire transfer

3.When does the warranty period start?
One year from the time the client receives the goods.
