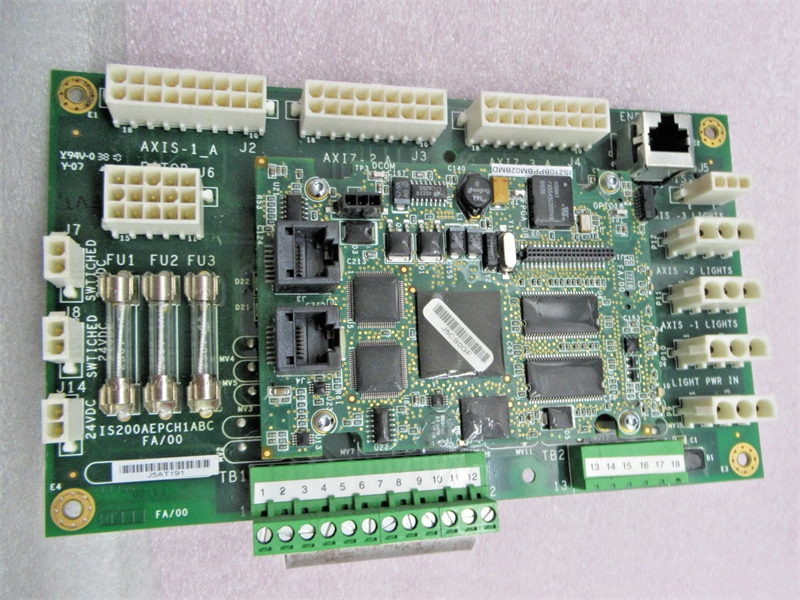

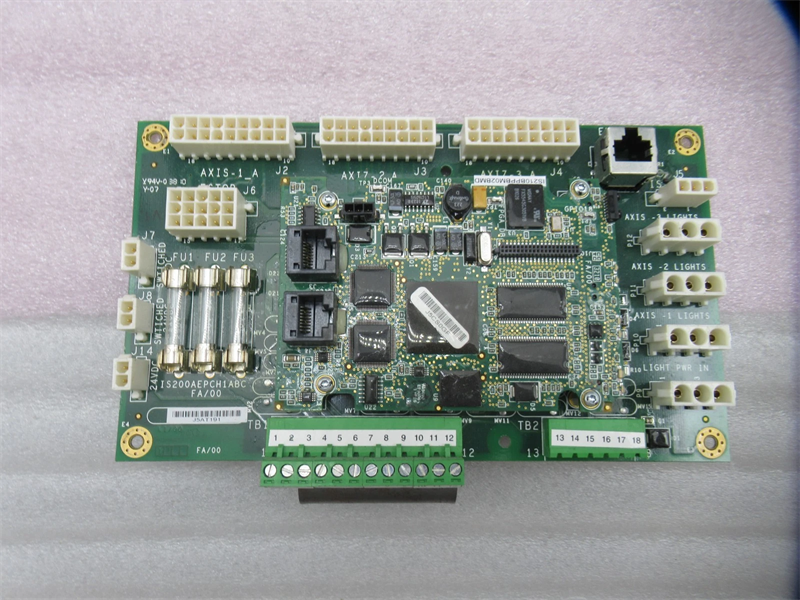

IS200AEPCH1ABC GE IS200AEPCH1A MKVI, AEPC Board

Description:

The IS200AEPCH1A  is a circuit board component made to fit into and be a replacement part for GE Speedtronic Mark VI systems. The MKVI contains timings, systems, and controls that have been created to ensure the reliable, safe operation of steam, hydro, and gas industrial turbines. The Mark VI Turbine Control System Series containing this IS200AEPCH1A Alternative Energy Pitch Center Module device, as it is known at length, exists as quite the stark functionality=minded improvement upon the previous industry standard of the similarly-named Mark V Turbine Control System Series, as the Mark VI Series tacked the alternative energy-based wind turbine possible functional application onto the gas and steam turbine applications seen earlier on with the rollout of the previous Mark V Series, for short. This IS200AEPCH1A Alternative Energy Pitch Center Module device's Mark VI Series is also generally desirable as one of the final-released GE Mark product series making use of the brand's patented Speedtronic control system technology.

The Axis box contains an application board (AEPA), a 3-phase transformer (three single-phase toroidal transformers), a 3-phase rectifier, power converter, and dc contactors. The AEPA accepts position references received by the AEPC from the turbine controller, and converts the position reference to a torque reference that is sent to the power converter. The main 400 V ac power is converted to approximately 63 Vac, and then rectified to supply the Pitch power converter with 80 V dc. The Pitch power converter controls the dc motor.

Features:

• Easy Operation and Configuration

The panel provides an intuitive operator interface and user-friendly menus, allowing users to easily configure and control the drive.

• Real-Time Control

 Provides real-time data processing and control to meet stringent industrial automation requirements.

• Safety and Reliability

Equipped with protection functions such as overcurrent, overvoltage, and undervoltage, it ensures safe motor operation and prevents accidents.

• Scalability

Supports a variety of expansion modules and function cards for more advanced functionality and scalability.

• Integrated Communications

Facilitates seamless integration with other Mark Vl components, enabling efficient data exchange and system coordination.

• High Availability

 Designed to support critical processes, it ensures system reliability even under heavy loads.

For instance, this IS200AEPCH1A Alternative Energy Pitch Center Module product number begins with an iteration of the dual-functional IS200 series tag indicating this IS200AEPCH1A Alternative Energy Pitch Center Module device's normal Mark VI Series assembly version on top of its domestic GE manufacture location. Some of the other IS200AEPCH1A Alternative Energy Pitch Center Module device elements indicated in this fashion include its:

1. AEPC functional product acronym
2. Group one Mark VI Series grouping
3. Conformal PCB coating style
4. A-rated functional product revision

Frequently Asked Questions:

1.Was this IS200AEPCH1A Alternative Energy Pitch Center Module device domestically-manufactured?
Yes. This IS200AEPCH1A Alternative Energy Pitch Center Module device was domestically-manufactured, in General Electric's Salem, Virginia factory location to be exact.

2.Does this IS200AEPCH1A Alternative Energy Pitch Center Module product mount in a VME Rack Mounting Assembly?
No. This IS200AEPCH1A Alternative Energy Pitch Center Module device does not mount in the Mark VI Series' typical VME Rack assembly structure, given its various included installation holes.
