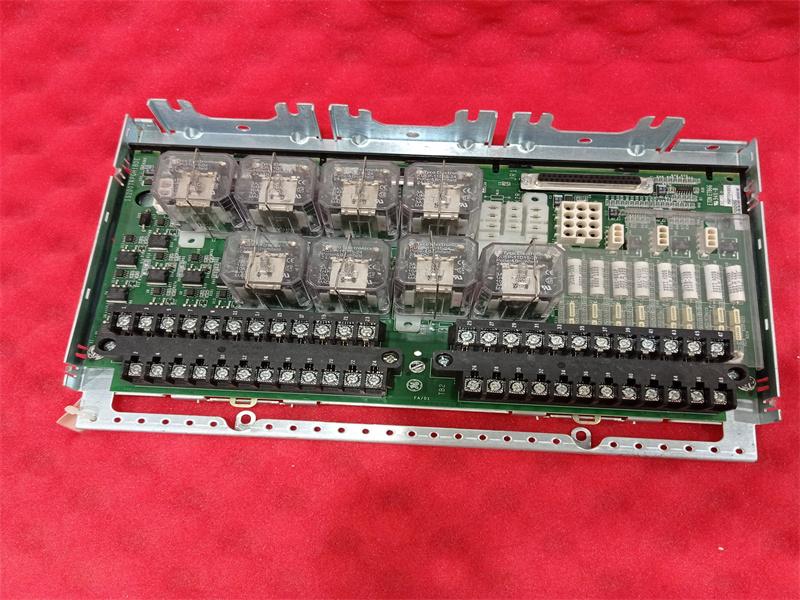

IS200TRPGS1B GE MKVIES, TRIP PRIMARY GAS, SIL

Description:

Mark VleS includes two application specific I/O functions. What sets these apart from the typicalprocess l/O is their ability to accept local inputs and drive local outputs independent of the systemcontroller. They also feature application specific l/O types including pulse rate speed inputs and flame detectors.

YTUR is a primary turbine protection input/ output pack that accepts four speed signals, Estop,and eight flame detectors while controlling three output trip relays. Ability to process speed signalsand operate trip relays is local to the YTUR and does not require controller participation. YTUR provides additional sensing designed into the mating terminal boards to detect correct operation of the tripping relay output circuits. YTUR includes a non-certified but non-interfering capability tosynchronize a generator to a utility grid and control a connection breaker.

YPRO is a backup or emergency protection input/ output pack that accepts three speed signals,Estop, seven contact inputs, and drives three trip relay outputs. Ability to process speed signalsand operate trip relays is local to the YPRO and does not require controller participation. YPROincludes firmware based and hardware overspeed protection. YPRO provides additional sensingdesigned into the mating terminal boards to detect correct operation of the tripping relay outputcircuits. Non-interfering backup synchronizing check is included in YPRO. YPRO plus YTURcreates a diverse, fast, comprehensive electronic overspeed protection solution.

Features:

• Easy Operation and Configuration

The panel provides an intuitive operator interface and user-friendly menus, allowing users to easily configure and control the drive.

• Real-Time Control

 Provides real-time data processing and control to meet stringent industrial automation requirements.

• Safety and Reliability

Equipped with protection functions such as overcurrent, overvoltage, and undervoltage, it ensures safe motor operation and prevents accidents.

• Scalability

Supports a variety of expansion modules and function cards for more advanced functionality and scalability.

• Integrated Communications

Facilitates seamless integration with other Mark Vl components, enabling efficient data exchange and system coordination.

• High Availability

 Designed to support critical processes, it ensures system reliability even under heavy loads.

For instance, this IS200AEPCH1A Alternative Energy Pitch Center Module product number begins with an iteration of the dual-functional IS200 series tag indicating this IS200AEPCH1A Alternative Energy Pitch Center Module device's normal Mark VI Series assembly version on top of its domestic GE manufacture location. Some of the other IS200AEPCH1A Alternative Energy Pitch Center Module device elements indicated in this fashion include its:

1. AEPC functional product acronym
2. Group one Mark VI Series grouping
3. Conformal PCB coating style
4. A-rated functional product revision

Frequently Asked Questions:

1.What type of contacts are supported on the IS200TRPGS1B?

The IS200TRPGS1B uses both 24/125VDC contacts.

2.What revision is this IS200TRPGS1B?
This IS200TRPGS1B is one of the BD revisions of this board type.

3.What I/O pack is the IS200TRPGS1B used with?
The IS200TRPGS1B is used with the YTUR I/O pack.

Datasheet Link:

IS200TRPGS1B GE MKVIES, TRIP PRIMARY GAS, SIL PDF Datasheet
