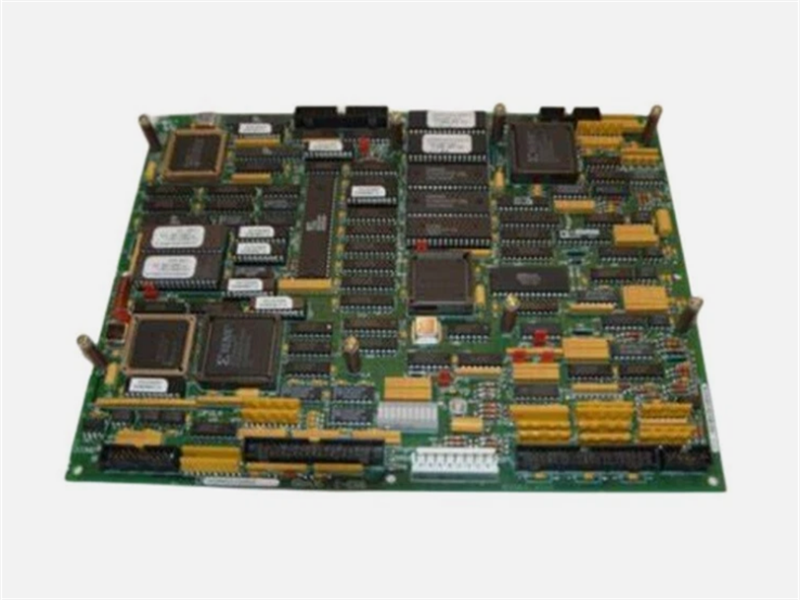

IS200BICIH1ACA GE Bridge Interface Controller Board

Description:

The IS200BICIH1A is a five-level H-bridge interface and control board manufactured and designed by General Electric (GE), belonging to the Mark VI series used in GE Speedtronic control systems. This BICH board is designed to connect 24 gate drivers specifically for mid-point clamped (NPC) H-bridges. Onboard timers enable two switching operations per gate cycle, covering all three H-bridges. The expected gate frequency is 1.5 kHz.

The IS200BICIH1A provides precise control over H-bridge systems, allowing performance to be customized to application requirements. It can connect to multiple gate drivers, enhancing system design and expansion flexibility.

The GE IS200BICIH1ACA control module is a high-performance component designed for industrial automation systems to improve the efficiency and precision of complex mechanical operations. Built for harsh industrial environments, this control module integrates seamlessly into complex control systems, ensuring smooth and reliable operation. It is equipped with an AOCA analog comparator module and a DVAA dual voltage-controlled oscillator module, providing precise signal processing and control functions.

Parameters:
Product Series: Mark VI IS200
Part Number: IS200BICIH1ACA
Product Description: Bridge Interface Controller Board
Functional Acronym/Abbreviation: BICI
PCB Coating: Conformal Coating
Functional Revision 1: A
Functional Revision 2: D
Artwork Revision: B

Features:

• High Performance

The CPU processor is designed to deliver high performance and processing power, enabling it to handle large volumes of network traffic and implement complex network protocols.

• Scalability

The IS200BICIH1ADB switch is highly scalable, easily expanding as network needs grow.

• Reliability

This switch is built with components designed to provide reliable and consistent performance, even in demanding network environments.

• Ease of Management

The IS200BICIH1ADB switch is designed for ease of management, featuring a simple, intuitive user interface for easy configuration and management of network settings.

Frequently Asked Questions about IS200BICIH1ACA:

1.Is there stock available or how long is the lead time?

Lead time: In stock

Datasheet Link:

IS200BICIH1ACA GE Bridge Interface Controller Board PDF Datasheet
