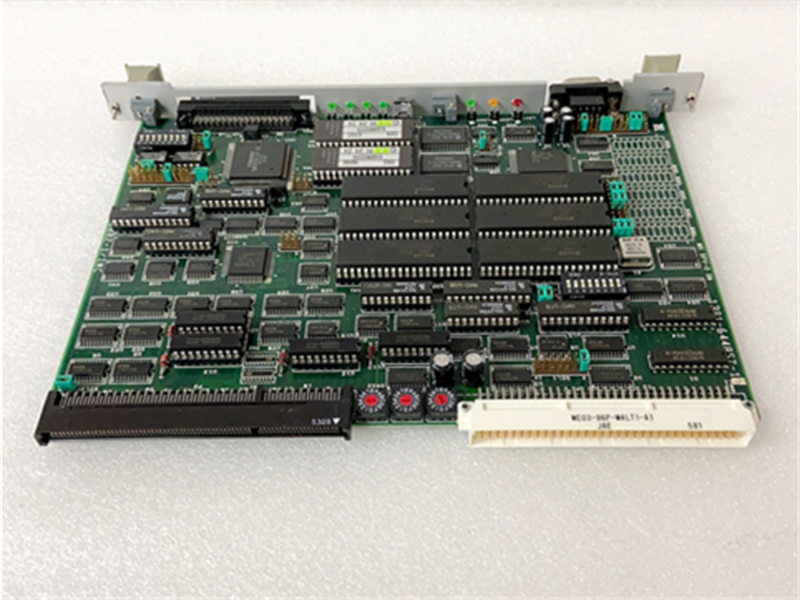

IS200BICLH1BAA GE PCB Bridge Interface Module

Description:

The IS200BICLH1BAA is a printed circuit board manufactured by General Electric (GE) and is a component of the Mark VI series. Mark VI is the fifth generation of GE's Speedtronic series of gas turbine and steam turbine management systems. The Mark VI turbine control system series (full name), which includes the IS200BICLH1BAA, actually has a range of specific applications for the control and management of automatic drive components for GE gas turbines, steam turbines, and even wind turbines.

The IS200BAIA Bridge Application Interface Board (BAIA) provides isolation and ground reference for all signal inputs to the user terminal board. It outputs customizable application signals to the processor board, specifically including:

• Six isolated differential general purpose 115 V AC, 50/60 Hz sine wave (or 24-105 V DC) discrete logic signals.
• Three independently controlled Type C relay contacts for discrete outputs.
• Two bipolar (+10V) analog input channels, each equipped with a differential amplifier and a synchronous voltage-controlled oscillator (VCO). The VCO pulse sequence is transmitted differentially to isolate the analog input.

Parameters:
Board ID: IS200BICLH1BAA
Functional Acronym: BICL
Relevant Series: Innovation Series
Product Type: IGBT Drive Source Bridge Interface Board
Full Revision: BAA (IS200BICLH1BAA)
RTD Inputs: 4
Clock Signal: 20MHz
Fan Speed PWM Output: 1
Mounting Style: VME

Features:

• High Performance

The CPU processor is designed to deliver high performance and processing power, enabling it to handle large volumes of network traffic and implement complex network protocols.

• Scalability

The IS200BICIH1ADB switch is highly scalable, easily expanding as network needs grow.

• Reliability

This switch is built with components designed to provide reliable and consistent performance, even in demanding network environments.

• Ease of Management

The IS200BICIH1ADB switch is designed for ease of management, featuring a simple, intuitive user interface for easy configuration and management of network settings.

Frequently Asked Questions about IS200BICLH1BAA:

1.Are all three of this IS200BICLH1BAA device's three product revisions functional?
No. Only this IS200BICLH1BAA devices' first two revisions are functional, with the secondary A-rated revision being graded as an artwork configuration revision.

2.Which of this IS200BICLH1BAA device's three revisions are backwards-compatible?
This IS200BICLH1BAA PCB's first two B and A-rated primary and secondary functional revisions are backwards-compatible

3.Is installation of the IS200BICLH1B a long process?
No, the IS200BICLH1B only has 2 connectors to fit it into the VME rack, making installation quick and easy.

4.What are the two EPLD configurations used for in the IS200BICLH1B?
The IS200BICLH1B uses these configurations to interface with the BPIA/BPIB and SCNV cards respectively.

5.Is there stock available or how long is the lead time?

Lead time: In stock

Datasheet Link:

IS200BICLH1BAA GE PCB Bridge Interface Module PDF Datasheet
