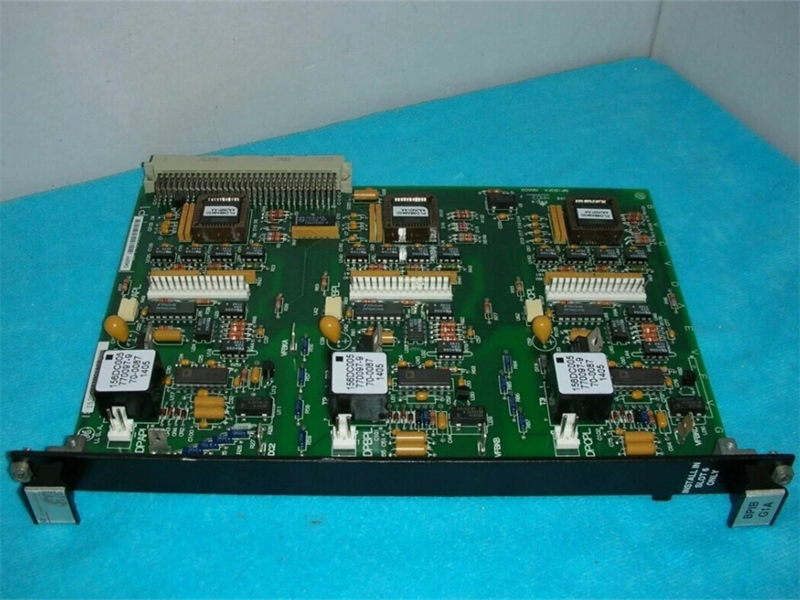

IS200BPIBG1AEB GE Mk VI Bridge Personality Interface Board

Description:

The IS200BPIBG1AEB model is an IGBT drive bridge interface board manufactured by General Electric for the Mark VI IS2000 series. This IS200BPIBG1AEB printed circuit board belongs to the Mark VI turbine control system series, designed specifically for the management and control of automatic drive components in GE-compatible gas, steam, and wind turbines, with a range of specific application functions. Since the Mark V series is only applicable to gas and steam power turbines, this can be considered a significant functional upgrade to the previously developed Mark V turbine control system series.

The Mark VI turbine control system series, to which the IS200BPIBG1AEB belongs, is highly regarded in many relevant markets due to its superior quality.

The IS200BPIBG1A is designed to capture faults detected by the gate drive board and report these faults to the appropriate processing board. Some faults are handled by the IS200BPIBG1A. The board also provides signal conditioning, connecting the logic control signals of the P1 connector to the parallel feedback board and the gate drive board.

Parameters:
Product Number: IS200BPIBG1AEB
Product Series : Mark VI IS200 Turbine Control System
Function Description: IGBT Drive Axle Interface Board
DC Link Voltage Feedback VCO Range: 0-20 MHz
Power Requirements: 17.7 VAC or 5 VDC
IGBT Drive Card Interface Power Output: Isolated 5 VDC, maximum 500 mA
Number of Power Supplies: 6
Power Supply Type: Isolated
Number of Controlled Drive Boards: 3/6
5VDC Power Requirements: ≤2.5W
17.7VAC Power Requirements: 20W/35W (3 drives/6 drives)

Features:

• High Performance

The CPU processor is designed to deliver high performance and processing power, enabling it to handle large volumes of network traffic and implement complex network protocols.

• Scalability

The IS200BICIH1ADB switch is highly scalable, easily expanding as network needs grow.

• Reliability

This switch is built with components designed to provide reliable and consistent performance, even in demanding network environments.

• Ease of Management

The IS200BICIH1ADB switch is designed for ease of management, featuring a simple, intuitive user interface for easy configuration and management of network settings.

Frequently Asked Questions about IS200BPIBG1AEB:

1.How many connectors are there on the IS200BPIBG1AEB model?
The IS200BPIBG1AEB model has four main connector types: PAPL, PBPL, and PCPL (A-phase driver board interface connectors) and DPAPL, DPBPL, and PCPL (17.7 AC power connectors). PAPL, PBPL, and PCPL connectors each have 16 pins, each with its own function. DPAPL, DPBPL, and DPCPL connectors each have 2 pins.

2.What type of PCB is the IS200BPIBG1AEB?
The IS200BPIBG1AEB model is an IGBT driver bridge custom interface board. It provides the signal conditioning required for connection and operation with O1 connectors. It uses logic-level digital control signals and can be used with three to six gate driver/parallel feedback boards and isolated VCO feedback circuitry.

3.What coating does the IS200BPIBG1A use?
The IS200BPIBG1A uses a standard coating, not a conformal coating.

4.What does the standard PCB coating for the IS200BPIBG1A device include?
The standard PCB coating for the IS200BPIBG1A product refers to a thick chemical coating applied across the entire substrate.

5.Is there stock available or how long is the lead time?

Lead time: In stock
