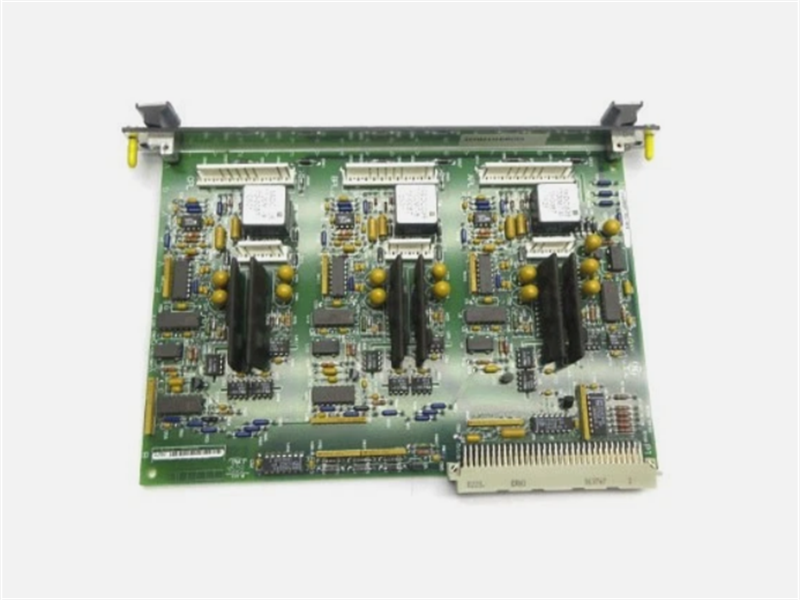

IS200BPIAG1AEB GE Bridge Personality Interface Board

Description:

The IS200BPIAG1AEB is a drive axle interface card manufactured by General Electric (GE) for its Mark VI series products. The Mark VI series provides comprehensive control, protection, and monitoring of heavy-duty steam turbine systems, offering excellent adaptability and scalability for a wide range of applications. The Mark VI is based on a 13-slot or 21-slot VME card rack-mount control module. This IS200BPIAG1AEB device represents a significant upgrade from the more powerful Mark VI series, which was previously more limited to gas turbine and steam turbine control system setups.

Parameters:
Product Series: Mark VI Speedtronic
Function Part Number: IS200BPIAG1AEB
Product Type: Bridge Personality Interface Board
Number of Versions: 3
Backward Compatibility: Previous two versions
PCB Coating Type: Standard Coating
Board Function: IGBT Drive Bridge Personality Interface
Gate Driver Circuits: 6
VCO Feedback Circuits: 3
Isolated Power Supplies: 9
Mounting Style: VME Rack
Square Wave Input: 17.7VAC
Revision: A

Features:

• High Performance

The CPU processor is designed to deliver high performance and processing power, enabling it to handle large volumes of network traffic and implement complex network protocols.

• Scalability

The IS200BICIH1ADB switch is highly scalable, easily expanding as network needs grow.

• Reliability

This switch is built with components designed to provide reliable and consistent performance, even in demanding network environments.

• Ease of Management

The IS200BICIH1ADB switch is designed for ease of management, featuring a simple, intuitive user interface for easy configuration and management of network settings.

Frequently Asked Questions about IS200BPIAG1AEB:

1.Are this IS200BPIAG1AEB product offering's three revisions all considered backwards-compatible?
No. Solely this IS200BPIAG1AEB device's first two product revisions could be considered backwards-compatible, as they are both functional styles of Mark VI Series product revisions.

2.What kind of configuration does the IS200BPIAG1A require?
The IS200BPIAG1A does not require any user configuration of hardware components.

3.Is there any way to gather revision/board identification information about the IS200BPIAG1A on the board itself?
Yes, this information is stored inside a 1024-bit memory device within the IS200BPIAG1A module.

4.Is there stock available or how long is the lead time?

Lead time: In stock

Datasheet Link:

IS200BPIAG1AEB GE Bridge Personality Interface Board PDF Datasheet
