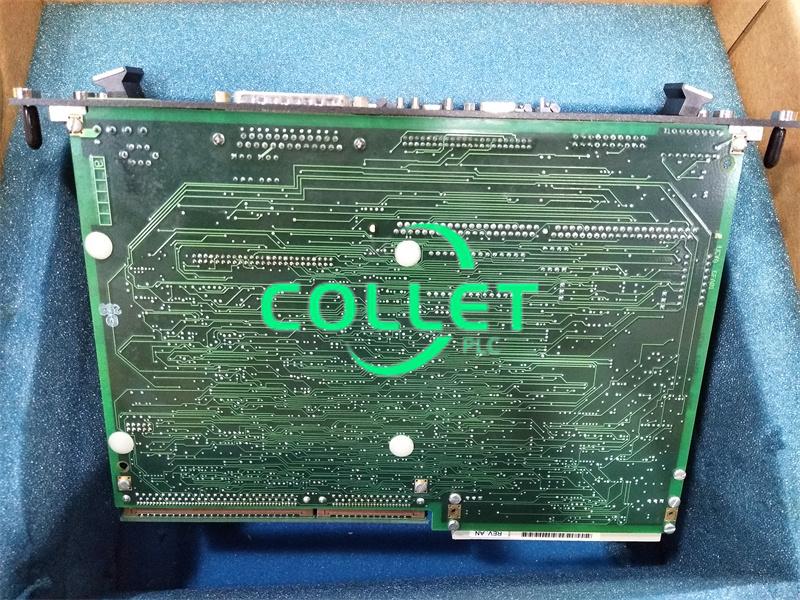

IS200ESELH3AAA GE EX2100, EXCITER SELECTOR CARD

Description:

 Functional Description

The IS200ESELH3A is an Exciter Selector Board developed by GE, integral to the EX2100 excitation system. Positioned within the control rack of the system, its primary function is to receive six logic-level gate pulse signals from the Exciter Master I/O (EMIO) board. These signals are then processed and distributed through six sets of cables to the Exciter Gate Pulse Amplifier (EGPA) boards located in the Power Conversion Cabinet. The ESEL board ensures accurate signal transmission and amplification by the EGPA boards, which in turn manage the gate drives in the exciter system. This coordination is essential for efficiently regulating the generator's electrical output.

 Application Data

Engineered with a streamlined configuration, the ESEL board eliminates the need for jumpers or test points, simplifying both layout and maintenance. Connectors P1 and P2 enable connection to the VME backplane, serving as critical interfaces for integrating the board into the broader system. Although the specific pin signals for these connectors are not defined in this document—since they are typically not checked during standard troubleshooting procedures—this approach underscores the board's reliability and low-maintenance design, facilitating easier management and reducing potential failure points.

The ESEL board features a meticulously organized layout, highlighted in the accompanying figure (not provided here). A key feature is the three green LEDs at the top of the front panel, which serve as vital status indicators. These LEDs provide real-time information on the board's operational status:

1. Power Indicator: Confirms that power is supplied to the board, ensuring it is ready for operation.
2. Active Indicator: Indicates that the board has been enabled by a control signal from controller C, signifying readiness to perform designated tasks.
3. Gating Indicator: Reveals that the board is actively gating, driven by gate inputs from the EMIO, showcasing its role in managing electrical signals within the system.

Together, these LEDs offer a straightforward yet comprehensive method for monitoring the board's status, aiding quick diagnostics and ensuring optimal performance.

 Board Replacement Procedure (Offline)

Preparation Steps:

1. De-energize the Exciter: Before beginning any replacement procedure, ensure the exciter is completely de-energized to prevent electrical hazards and ensure a safe working environment.
2. Verify Power Status: Open the control cabinet door and visually inspect the power indicators on both the EPDM and EPSM power supplies. Ensure all indicators are off, including the three LEDs on the ESEL board, confirming the system is powered down and safe to work on.

Removal Process:

1. Loosen Faceplate Screws: Locate the screws at the top and bottom of the faceplate, near the ejector tabs. Loosen these screws without removing them completely, as they are captive in the faceplate.
2. Unseat the Board: Lift the ejector tabs to unseat the board from the rack.
3. Extract the Board: Using both hands, gently pull the board out of the rack.

Insertion Process:

1. Align the Replacement Board: Align the replacement board with the correct slot in the rack. Carefully slide the board into place, ensuring proper alignment with the connectors.
2. Begin Seating the Board: Firmly press the top and bottom of the faceplate simultaneously with your thumbs to start seating the board evenly and securely.
3. Secure the Board: Tighten the screws at the top and bottom of the faceplate evenly, alternating between them to ensure the board is seated squarely and securely in the slot. This step is crucial to prevent misalignment and ensure proper electrical connections.

 Features

Upon receiving six logic-level gate pulse signals from the EMIO board, the ESEL board efficiently processes these signals to drive six sets of cables distributed to the EGPA boards housed in the Power Conversion Cabinet. The EGPA boards directly interface with these cables, playing a vital role in signal amplification and management, essential for the excitation system's overall performance. ESEL 1 is inherently driven by M1, while ESEL 2 is driven by M2, with controller M1 assuming the active role by default. This configuration enhances system reliability and offers operational flexibility, allowing efficient management of excitation processes and smooth functionality during controller transitions or potential system repairs.

Datasheet Link:

IS200ESELH3AAA GE EX2100, EXCITER SELECTOR CARD PDF Datasheet
