IS200ESYSH3A GE I/O Terminal Board

Description:

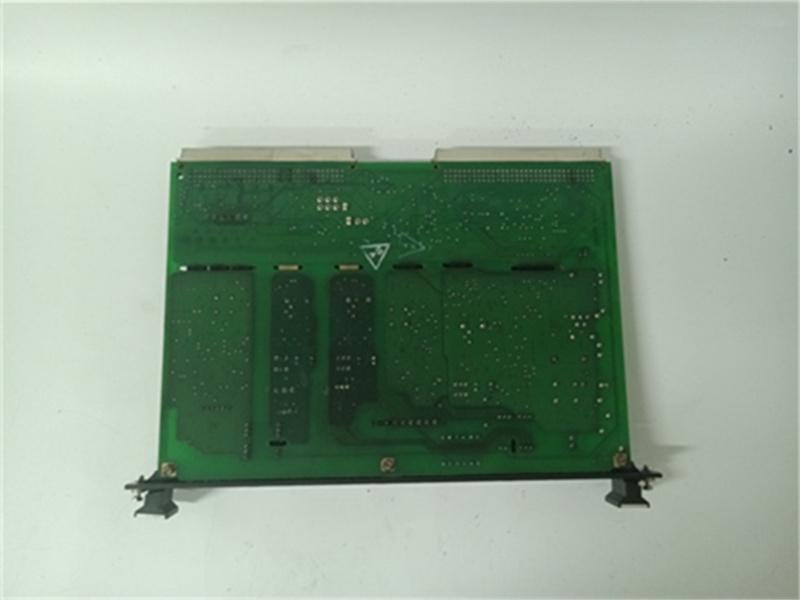

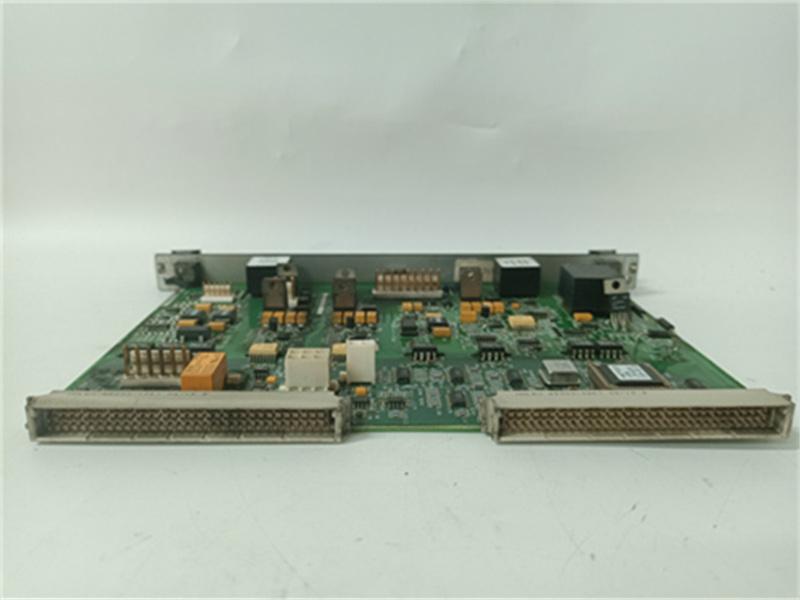

General Electric EX2100e model IS200ESYSH3A is an I/O terminal board. The functional acronym of this board is ESYS, which stands for Excitation Control System I/O Interface. The primary function of this board is to interface the basic input and output externally to the exciter within the control system. A majority of the EX2100e system I/O interfaces will be handled through the ESYS board. All of the interfaces provided by the ESYS board will be sent to the EX2100e control system through the attached HSLA high-speed serial link (HSSL) daughterboard.

SPECIFICATIONS:
Part Number: IS200ESYSH3A
Series: EX2100e
Product type: I/O Terminal Board
Control Sections: M1
Group Variation: H3
Redundancy: Simplex Control
Connections: PTs and CTs
Number of sub-D pin Connectors: 6
Input voltage: 24VDC
Output voltage: 0-10VDC
Rated current: 10A
Operating temperature: 40°C to 85°C
Country of Manufacture: United States (USA)
Functional Description:
-Main Function: The IS200ESYSH3A terminal board serves as the I/O interface for the excitation control system. Its primary function is to connect basic inputs and outputs to the exciter within the control system.
-Interface Features: All interfaces provided by the ESYS board are transmitted to the EX2100e control system via the included HSLA High-Speed Serial Link (HSSL) daughter board.
-Power Supply: This model has seven auxiliary contact inputs and is powered by 55 VDC.
