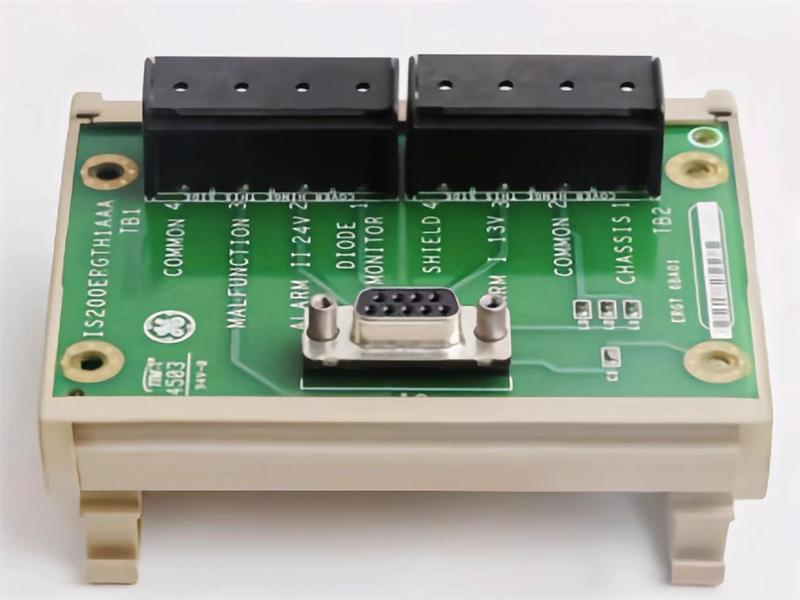

IS200ERGTH1AAA GE Exciter Regulator Third-party Ground Detector Terminal Board

Description:

The IS200ERGTH1A model is an Exciter Regulator Third Party Ground Detector Board. One of the main features of this board is the ability to create an interface to third-party ground detectors through the conversion of the nine-pin connector from the EROC board to the terminal landing screws. The IS200ERGTH1A can be mounted in two different ways, it can be wall mounted or DIN-rail mounted.

SPECIFICATIONS:
Part Number: IS200ERGTH1AAA
Environmental Protection: Conformal Coating
Product Type: PCBA
Analog output current: 0-20 mA
Excitation voltage: 24 V dc
Maximum Lead Resistance: 15Ω
Processor: 32-bit digital signal processor
Analog output current: 0-20 mA
Operating temperature: 30 to 50 °C
Frequency: 50 or 60 Hz
Country of Origin: United States
Frequently Asked Questions:
1.What does the IS200ERGTH1A connect to in EX2100 systems?
The IS200ERGTH1A connects EROC boards and ground detectors within the EX2100 system.
2.How complex is setup of the IS200ERGTH1A?
The IS200ERGTH1A board is clearly labeled, so replacement is a simple process.
