IS200IGPAG2AED GE GATE DRIVE POWER SUPPLY BOARD

Description:

The S200IGPAG2AED is a gate driver power supply board developed by General Electric (GE) and is part of the EX2100 excitation system.

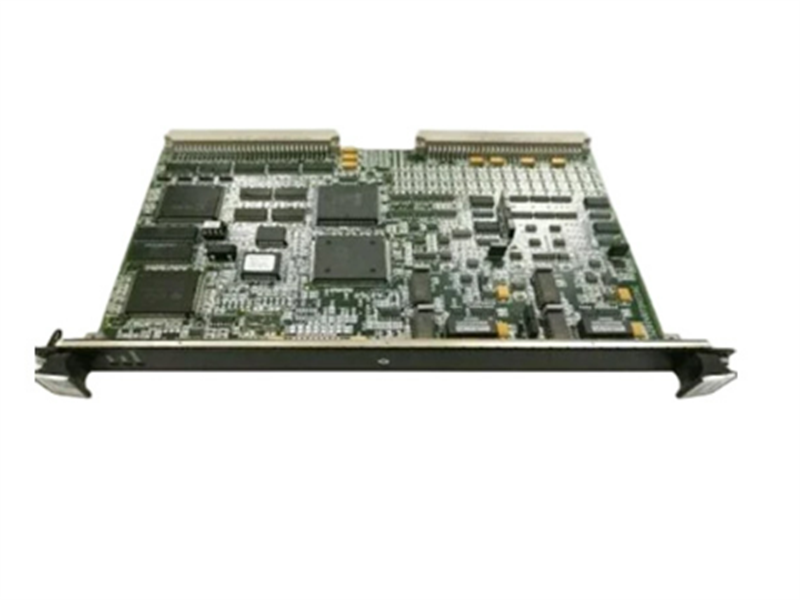

The S200IGPAG2AED power supply board has two distinctly different sides. One side is densely packed with components, while the other is almost empty. On the almost empty side, the board surface is marked with the placement positions of the components, but the components are not mounted on the board. The few components on this side include a 9-pin vertical male connector, several terminal connectors that pass through the board surface, and two LED indicators located side by side at the edge of the board.

It provides power to the gate driver, enabling precise and controllable power supply to critical components of the system. The power supply board is designed and functionally optimized to meet the stringent performance requirements and operational needs of the EX2100 excitation system.

Parameters:
Part No.:IS200IGPAG2AED

Manufacturer: General Electric

Country of Manufacture: United States of America (USA)

Number of Plug Connectors: 8

Number of Terminal Connectors: 2

Product Type: Gate Drive Power Supply Board

Revision Total : 3 Revisions
Assembly Type: Normal Assembly
Mark VI Series Grouping : Group 2
Features:

• Ethernet 1-Port Communication

This is an embedded Ethernet interface module used for network communication.

• Digital Input

As a general-purpose digital input module, it can receive digital signals from external devices and transmit these signals to the control system.

• Analog Output

This module also features analog voltage or current output capabilities. It can output corresponding analog signals according to the control system's commands, thereby driving external devices or controlling actuators.

Frequently Asked Questions about IS200IGPAG2AED:

1.What power options does the exciter system offer?
It supports power from potentia compound or auxdlary soures, alwing conigurations wth single or mutiple bridges warm backup brd es, and smplex or redundant
controls

2.How is power supplied to the exciter?
Power is drawn either from a power potentlal transformer connected to the generator terminals or from an excitation transformer inked to an auxliary bus.

3.What are the key feedback mechanisms for the exciter?
Primary fedback sources include generator line curent and stator output votage. The exciter system adjusts DC voltage and curent to controlthe exciter field based on this feedback.

4.Which of this IS200IGPAG2AED product's revisions are backwards-compatible?
This IS200IGPAG2AED device's first two functional revisions alone are backwards-compatible.

5.Is there stock available or how long is the lead time?

Lead time: In stock
