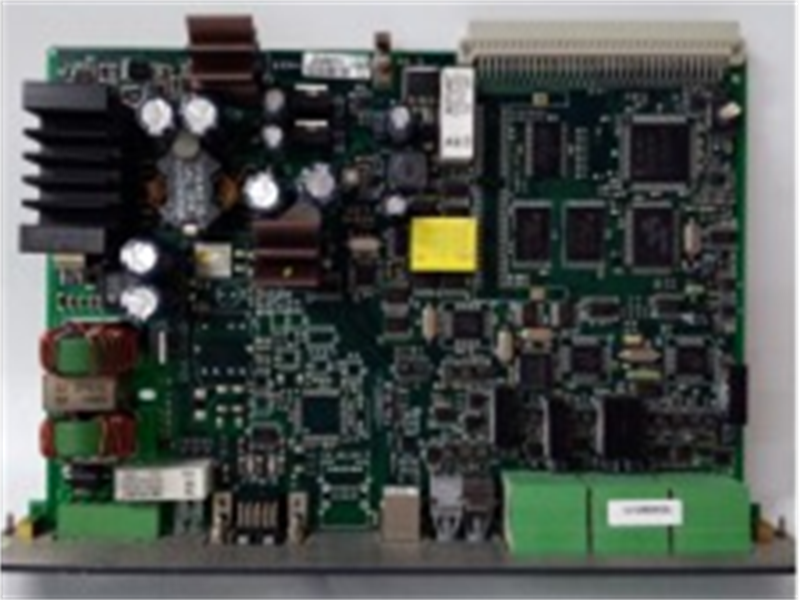

IS200ISBEH1ABC GE ISBus Extender Board

Description:

The I5200sBEHIA is an ISBus expansion board developed by General Electric (GE) and is part of the EX2100 excitation system. It is a component of the ISBus high-speed synchronous communication system, designed to enhance communication and control performance.

This board is crucial in applications requiring longer bus distances or more nodes, enabling ISBus to maintain high-speed redundant communication without signal attenuation. It is widely used in gas turbine and steam turbine control systems and supports GE's advanced Speedtronic architecture.

Parameters:
Type: ISBus Extender Board
Operating Voltage: 24 V DC
Communication Protocol: High-speed synchronous communication Fiber Optic Support: Compatible with ST-type Hard Clad Silica (HCS) or glass fiber connectors
Interfaces: Connects to J11A or J12A interfaces on the CAPB Control Assembly Backplane
Environmental Compatibility: Suitable for harsh industrial environments
Features:

• PC-based HML operator interface

Utilizes a Microsoft Windows platform pre-installed with cE CIMPuCIY software, allowing for reinstallation or replacement without affecting other processes.

• Connectivity interfaces

Typically connects to the J1A interface on the CAPB control (assembly backplane), but can also be used with the J12A interface. Its input/output interfaces are located on both sides of the board edge.

• DIN rail mounting

The board is designed for mounting on DIN rails, ensuring stability and ease of installation.

• Optical performance

Compatible with a variety of O-type components, including ST-type hard-clad quartz (HCS) fiber optic or glass fiber optic connectors.

• Terminal blocks and connectors

Each side edge features a small terminal block containing two plug connectors and two fiber optic connectors.

• High-speed communication

Supports fast and reliable data transmission within the ISBus system.

• Fiber optic connectivity

Supports high-performance optical communication, enhancing reliability.

• Rugged and durable

Conformal coating provides protection in industrial environments.

• Diagnostic Indicators

LED indicators used to show power status, data transmission, and system interlocks.

• Excitation Control

Controls the generator excitation current to generate the required magnetic field strength.

• Voltage Regulation

Adjusts the generator output voltage according to load demand and grid voltage variations.

• Overload Protection

Detects generator load and current to prevent overload and damage.

• Speed Control

Regulates generator speed by controlling the excitation current.

Frequently Asked Questions about IS200ISBBG1AAB:

1.What is the IS200ISBEH1A?
It is an ISBus expansion board developed by GE under the EX2100 series.

2.How is this card connected in the system?
Typically, it connects to the J1IA interface on the CPe control component backplane, but it can also be used with the J12A interface. The card has input/output interfaces located on both sides of the board's edges.

3.What are the card's optical performance like?
It is compatible with a variety of component options, including ST-type hard CAD Slica (HCS fiber or glass fiber connectors), ensuring strong optical performance.

4.What is the main function of the IS200ISBEH1ABB board?
A1: It extends ISBus communication, allowing the addition of more nodes or the extension of communication distance in GE Mark VI systems.

5.Is there stock available or how long is the lead time?

Lead time: In stock
