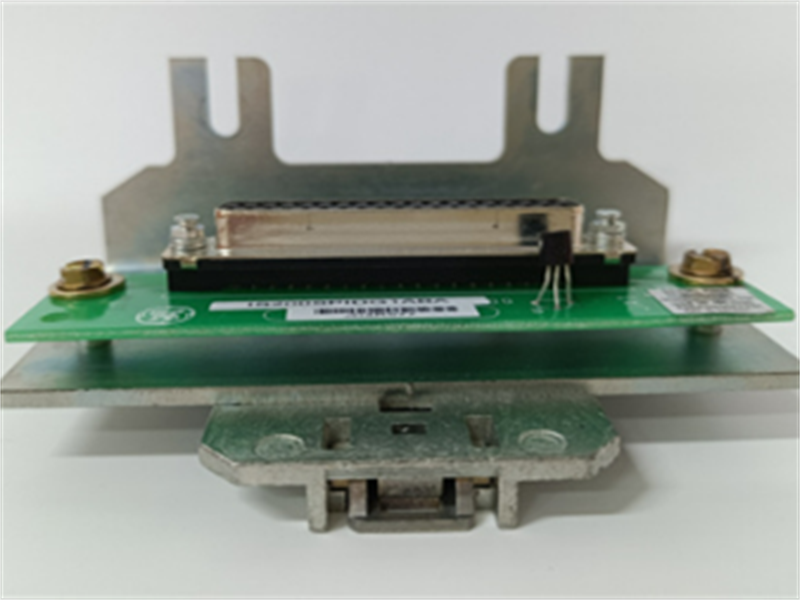

IS200SCSAS1ADB GE SCSl Adapter Board Module

Description:

The IS200SCSAS1ADBis a highly specialized SCSI Adapter Board, a crucial interface module within the expansive GE Mark VI turbine control system platform.

This board Iis designed to Interace seamlessly wih tne CE Series 6 and other compatible systems, offering a relable solution 1o manaseadditional V0 points, With its versatile functionality,itis perfectforapplicationsrequiring extended V/O capabilities without he need io upsrade the entre control system.

The core purpose of the IS200SCSAS1ADBis to facilitate robust data handling, enabling functions such as extensive historical data logging, high-resolution sequence of events (SOE) recording, and system configuration backups. In the demanding environment of turbine control, where operational data is vital for performance monitoring, predictive maintenance, and post-trip analysis, the reliability of this data pathway is paramount.

This module is designed to deliver fail-safe performance in systems requiring strict adherence to safety standards, serving as a backbone for protecting personnel, equipment, and operational continuity.

Parameters:

Interface Standard: Small Computer System Interface (SCSI)
Connector Type:High-density 68-pin VHDCI (Very High Density Cable Interconnect) female connector:
Bus Architecture:Interfaces with the system via the VME backplane
Data Transfer Rate:Supports standard SCSI speeds (e.g., Ultra SCSI up to 40 MB/s)
Power Requirement:Powered directly from the Mark VI rack’s +5VDC backplane supply
Relative Humidity:5% to 95% (non-condensing)
Certifications:Designed to meet industrial and regulatory standards for power generation equipment
Safety Integrity Level: SIL 3 Certified (per IEC 61508)
Operating Temperature Range: -20°C to 70°C (-4°F to 158°F)
Storage Temperature Range: -40°C to 85°C (-40°F to 185°F)
Power Consumption: 3.2 W (Typical), 4.0 W (Maximum)
Fault Detection Coverage: >99% for Critical Component Failures

Features:

• Scalable /0 Expansion

Seamlessly adds 16l0 points to your existing system, ffering flexibiltyforfuture system expansions withouthe need for complex upsrades.

• Reliable Data Communication

Equipped with RS-485 and Ethermnet interfaces, ensuring stable and secure communication between the expansion board and the control system.

• High Processing Speed

Designed to deliver high-speed data transfer with minimallatency, which is critical for real-time applications.

• Durabilty

Built to withstand industrial conditions, with an operating temperature range of-10C to +60C, making itideal for demanding factoryenvironments.

• CE and UL Certified

Adheres to global safety and quality standards,ensuring reliability and peace of mind.

Frequently Asked Questions:

Q1: Is this GE BPPB board original?
Yes. All GE BPPB boards supplied by colletplc.com are 100% original GE products. Each unit is sourced from reliable channels and delivered in original or factory-standard industrial packaging.

Q2: Do you provide a warranty?
Yes. We offer a one-year warranty from the date of delivery, covering manufacturing and material defects under normal industrial use.

Q3: What Incoterms do you support?
We support EXW and DAP Incoterms. Shipping terms can be selected based on your logistics preference and destination.

Datasheet Link:

IS200SCSAS1ADB GE SCSl Adapter Board Module PDF Datasheet
