Manufacture |
GE |
|
Model |
IS200TCSAS1ACB |
| PN No. |
IS200TCSAS1ACB |
|
Catalog |
Mark VI |
|
Description |
Analog Module Terminal Board |
| Origin | U.S.A. |
| HS CODE |
85389091 |
| Dimension |
33*17.8*5 (CM) |
| Weight | 0.9 kg |
Description:

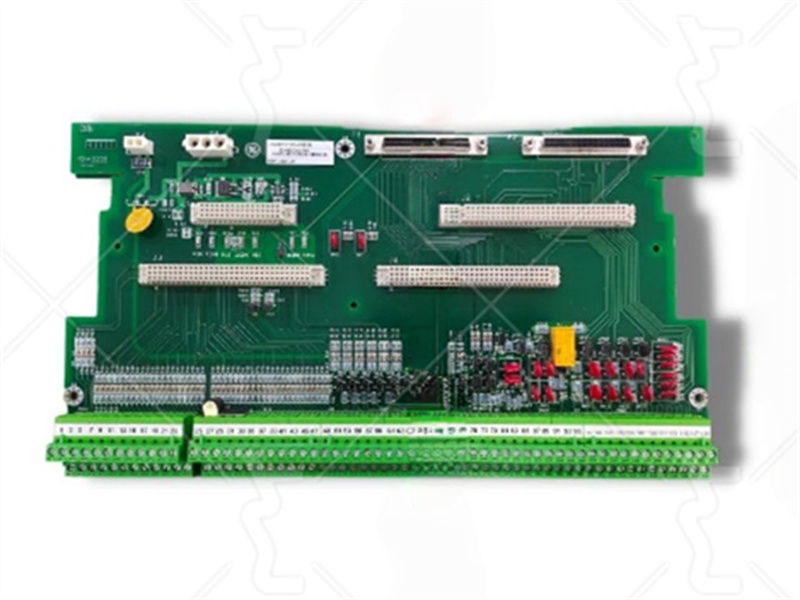

IS200TCASH1ACB is a Terminal Board manufactured and designed by General Electric as part of the Mark VIe Series used in GE Distributed Turbine Control Systems. The IS200TCAS terminal board provides the customer terminals and signal routing into the BCAA and BCAB boards. TCAS accepts bulk 28 V control power through the P5 connector. It then provides the power through connector P4 to a JGPA board in the input cable shield termination location. TCAS provides the P1 and P2 68-pin connectors for IS200TCAT terminal board cables. Internal to the module the TCAS terminal board routes signals to connectors for the BCAA and BCAB analog processing boards.
Features:
-Acts as an analog I/O slave module in GE's Mark VIe turbine control system.
-Interfaces with the main controller via ISBus
-Handles analog input/output signals for monitoring and controlling turbine operations.
-Works with other Mark VIe components like the IS200ERDCG1AED (controller) and other I/O modules.
Frequently Asked Questions:
1.Is there a replacement model for IS200TCSAS1ACB?
IS200TCSAS1A
2.How to determine whether IS200TCSAS1ACB is faulty?
-Module status indicator abnormality
-Control system alarm
Datasheet Link:
IS200TCSAS1ACB GE MKVI, Analog Module Terminal Board PDF Datasheet
