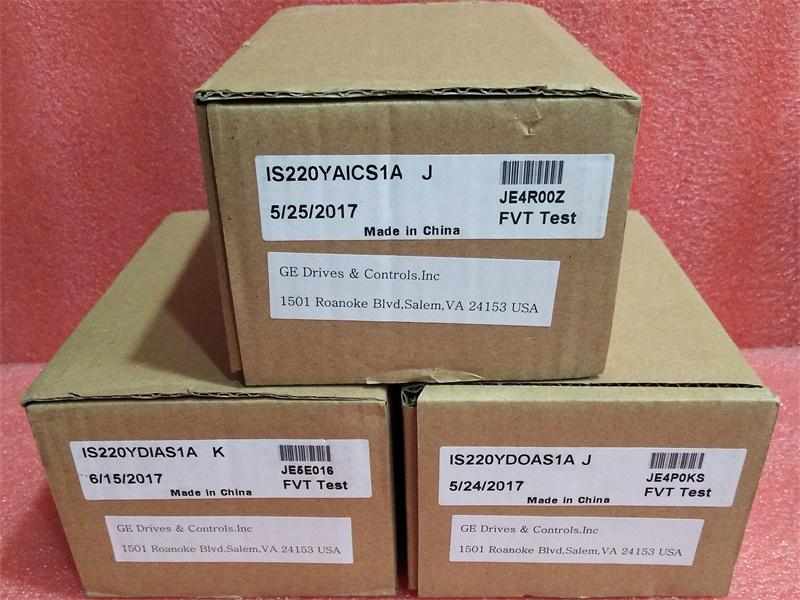

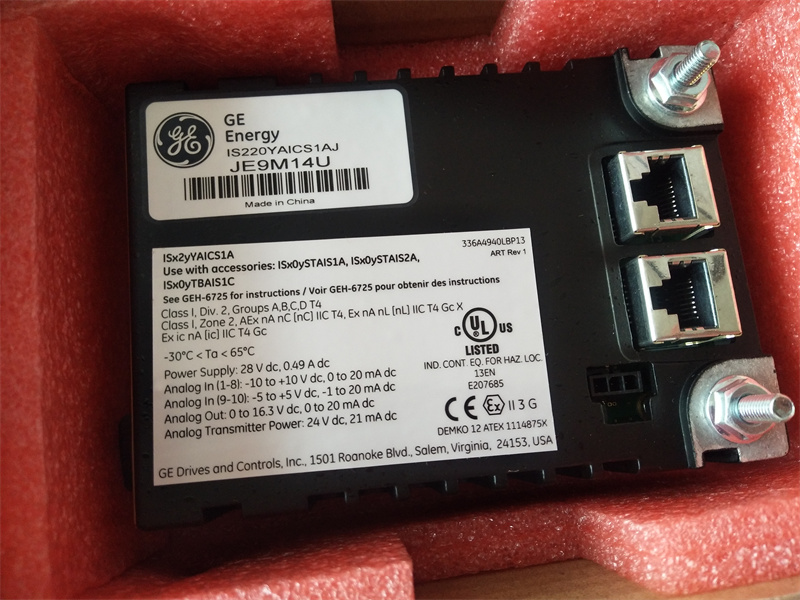

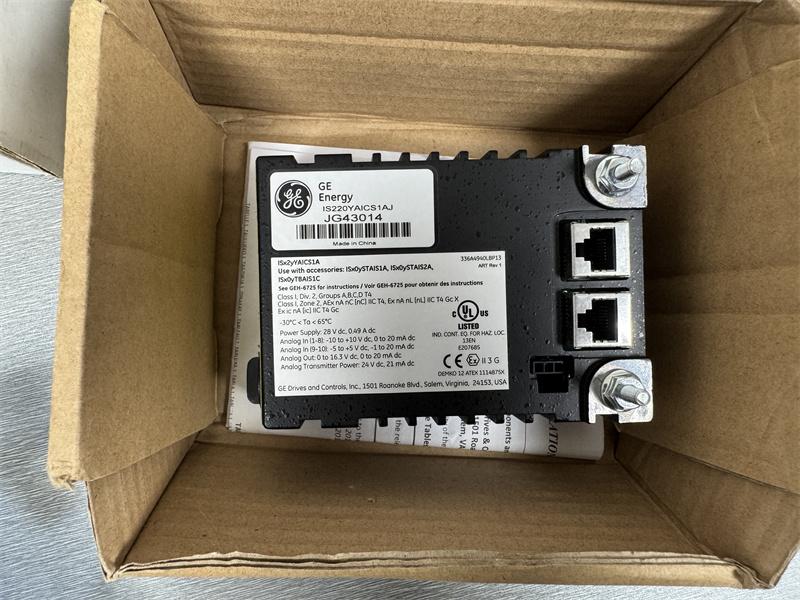

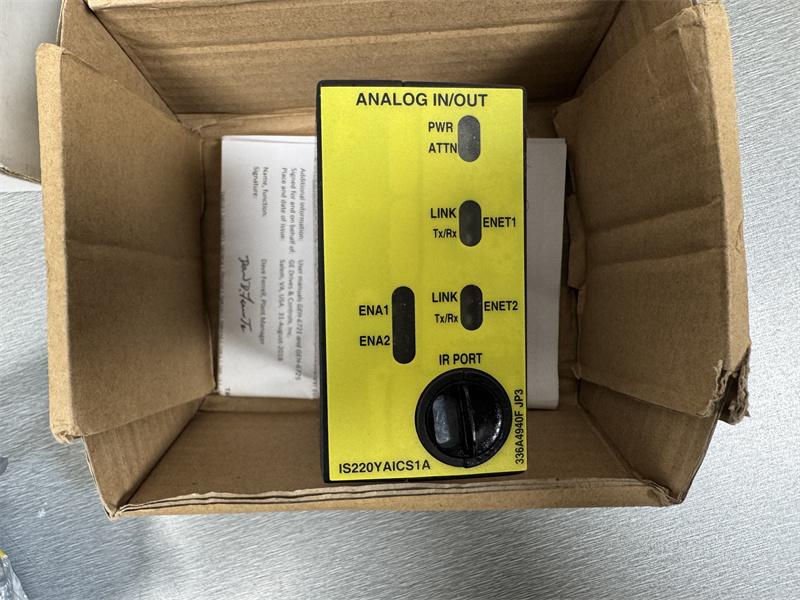

IS220YAICS1AJ GE MKVIe, Analog I/O Pack,SIL Rated

Description:

IS220YAICS1AJ Mark VleS Control Analog I/O Modu

The IS220YDIAS1A is a Discrete Contact Input I/O module from General Electric. This module is designed for use within the Mark VIe Speedtronic control system for gas and steam industrial control. While applicable to both gas and steam settings, the Mark VIe Series that this IS220YDIAS1A device belongs to the Mark VIe is one of the last Speedtronic systems designed by GE in a long line of industrial control systems marketed under the Speedtronic name. This means that this IS220YDIAS1A device's greater Mark VIe Turbine Control System Series is one of the more acclaimed General Electric Mark product series on the greater automated industrial marketplace. This IS220YDIAS1A device's Mark VIe Turbine Control System Series additionally is a noticeable step up from the previous Mark V Series as its potential applications are expanded from solely gas and steam turbine automated drive assemblies to wind turbine automated drive assemblies as well.

Hardware Tips and Specifications

The IS220YDIAS1A is part of the Mark IVe control system or part of the Mark VIeS functional safety system. As an I/O pack, it is designed to plug into and be used with specific terminal boards like the IS200STCIS1A and 2A, IS400STCIS1A or 2A, or the IS400TBCIS2C. The IS220YDIAS1A has an on-board power supply with a nominal voltage of 28.0 VDC. Both contact inputs and contact wetting outputs have a max voltage rating of 32 VDC. The IS220YDIAS1A is both UL listed and CE marked.  It can be used in both hazardous and non-hazardous locations. Ratings for hazardous location use can be found within documents like GE’s GEH-6725. This I/O module is designed for use in ambient conditions between -35 and +65 degrees Celsius. Before making any purchase decision here on this IS220YDIAS1A Mark VIe Turbine Control System Series product offering, it is critical to realize that the IS220YDIAS1A Board here is not the original device of its intended Mark VIe Series functional role, given, as explained by GE, the IS220YDIAS1A PCB is edited from its originally-introduced performance specifications and dimensions through the standard A-rated functional product revision.

The following I/O pack and terminal board combinations are approved for use in hazardous locations:
• Mark VIe Analog I/O pack IS220PAICH1A
with terminal boards (accessories) IS200STAIH1A, IS200STAIH2A, or IS200TBAIH1C
• Mark VIe Analog I/O pack IS220PAICH1B
with terminal boards (accessories) IS200STAIH1A, IS200STAIH2A, or IS200TBAIH1C
• Mark VIeS Safety Analog I/O pack IS220YAICS1A
with terminal boards (accessories) IS200STAIS1A, IS400STAIS1A, IS200STAIS2A, IS400STAIS2A,
IS200TBAIS1C, or IS400TBAIS1C
• Mark VIeS Safety Analog I/O pack ISx2yYAICS1B (where x = 2 or 4 and y = 0 or 1)
with terminal boards (accessories) ISx0ySTAIS1A, ISx0ySTAIS2A, or ISx0yTBAIS1C

Added terminal boards in the Equipment column for the
following I/O modules:
IS220YAICS1A
IS220YAICS1B with updated ATEX Zone 2, Group IIC
certification
IS221YAICS1B updated ATEX Zone 2, Group IIC certification
IS220YDIAS1A
IS220YDIAS1B specifications and certifications
IS220YDOAS1A
IS220YDOAS1B with updated ATEX Zone 2, Group IIC
certification
IS221YDOAS1B updated ATEX Zone 2, Group IIC certification
IS420YVIBS1B

Data sheet Link:

IS220YAICS1AJ GE MKVIe, Analog I/O Pack,SIL Rated PDF Datasheet
