IS200VTCCH1C GE Mark VI - Thermocouple Input Board

Description:

IS200VTCCH1C is Thermocouple Input Board , manufactured by GE.

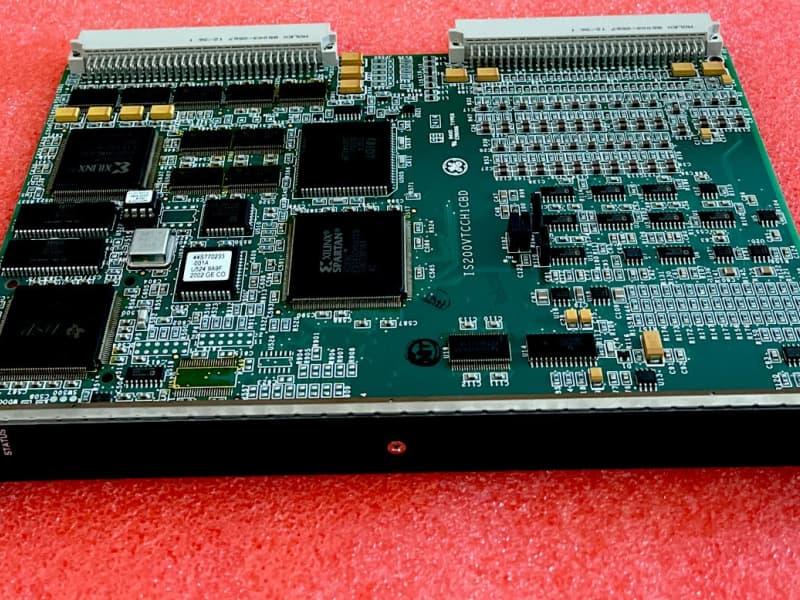

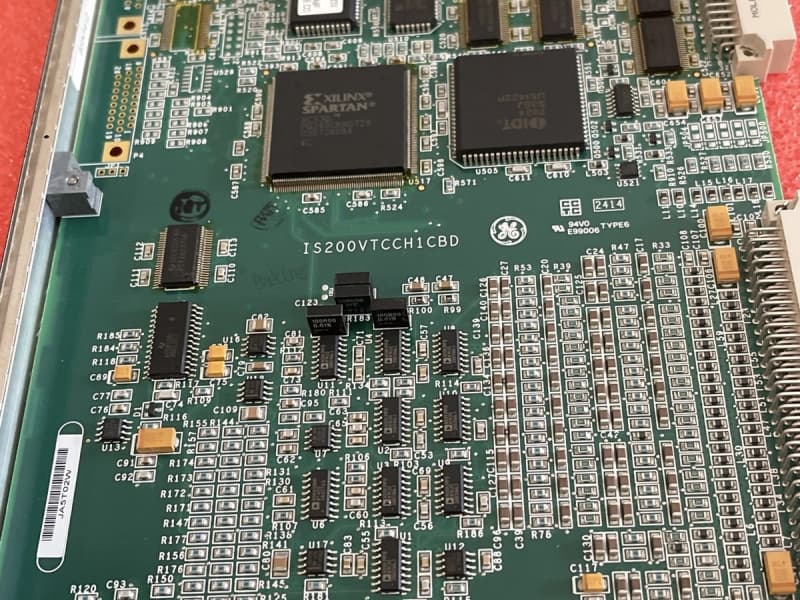

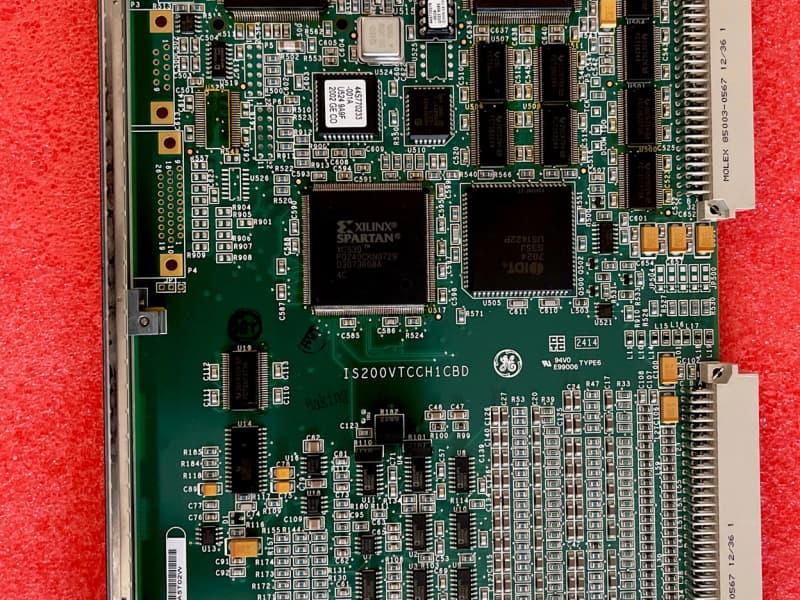

IS200VTCCH1C is a Thermocouple Processor Board developed by GE under the Mark VI series. The thermocouple processor board VTCC accepts 24 thermocouple inputs of type E, J, K, S, or T. These inputs are connected to two terminal blocks on the TBTC terminal board. Cables with molded connectors connect the terminal board to the VME rack, which houses the VTCC thermocouple processor board. The TBTC can provide control in both simplex (TBTCH1C) and triple module redundant (TMR) modes (TBTCHIB).

The 24 thermocouple inputs on the TBTC can be grounded or unground. They may be situated up to 300 m (984 ft) from the turbine control cabinet and have a maximum two-way cable resistance of 450. There is high-frequency noise suppression as well as two cold junction reference devices on the terminal board. Individual thermocouple types are software linearized by VTCC. To minimize harmful impacts on other input channels, any thermocouple determined to be outside of the hardware limitations is deleted from the scanned inputs.

Our  company offers multiple programs to protect your purchase and lower your final costs. Speak to our team today about warranties, surplus purchasing, and exchange credit. This IS200VTCCH1C device's greater Mark VI Turbine Control System Series is really not surrounded by very many originally-developed instructional manual materials online, which results in the previous part of this IS200VTCCH1C personalized product page being reminiscent of a diligent visual inspection of the IS200VTCCH1C Board itself. One other fine supplemental source of IS200VTCCH1C Board hardware component and component specification information can be identified in its IS200VTCCH1C functional product number, which was actually developed by GE to indirectly indicate a number of relevant IS200VTCCH1C Board details through its characteristic series of consecutive functional naming chunks. One such chunk is the initial dual-functional IS200 series tag that is responsible for delegating this IS200VTCCH1C device's IS200 series tag, which is dual-functional as it described both this IS200VTCCH1C product offering's normal Mark VI Series assembly as well as its domestic original location of GE manufacture. Some of the other important IS200VTCCH1C details indicated in this fashion include this IS200VTCCH1C product's:

VTCC functional product acronym
Group one Mark VI Series grouping
Conformal PCB coating style
C-rated product revision

Frequently Asked Questions:

1.What type of Mark VI Series revision does this IS200VTCCH1C device possess?
This IS200VTCCH1C Board makes use of a sole C-rated functional product revision.

2.When does the warranty period start?
One year from the time the client receives the goods.

3.What does this IS200VTCCH1C device's conformal PCB coating exist as?
This IS200VTCCH1C device's conformal PCB coating is a thin layer of chemically-applied PCB coating made available to the IS200VTCCH1C device's whole base circuit board.

Datasheet Link:

IS200VTCCH1C GE Mark VI  - Thermocouple Input Board  PDF Datasheet
