IS220PAOCH1A GE Mark Vie - ANALOG OUTPUT MODULE

Description:

IS220YDIAS1AK is Analog Output Module, manufactured by GE.
Part Number: IS220PAOCH1A
Manufacturer: General Electric
Series: Mark VIe
Product Type: Analog Output Module
Number of channels: Eight current output channels
Analog Outputs: 0-20 mA, up to 900 Ω
Accuracy: ±0.5% over -30 to 65oC (-22 to 149 oF) temperature
Size: 8.26 cm high x 4.19 cm wide x 12.1 cm deep (3.25 in x 1.65 in x 4.78 in)
Availability: In Stock
Country of Origin: USA

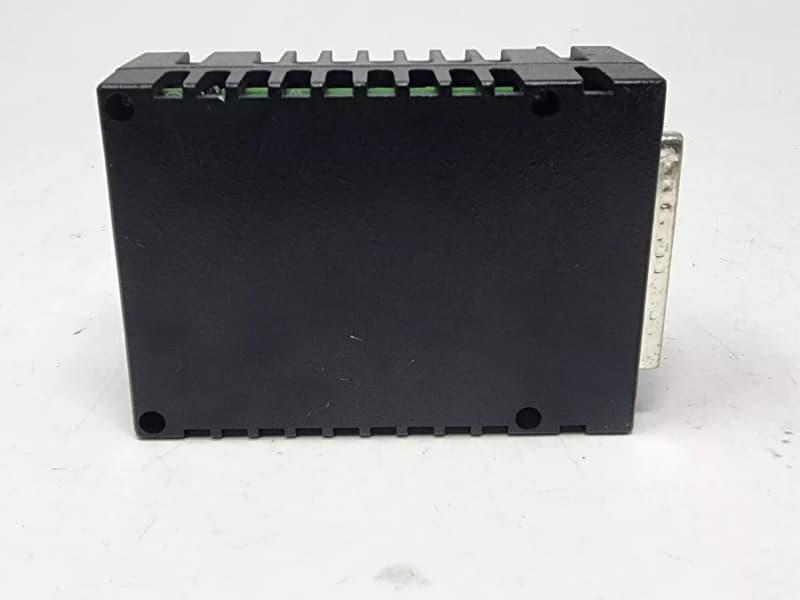

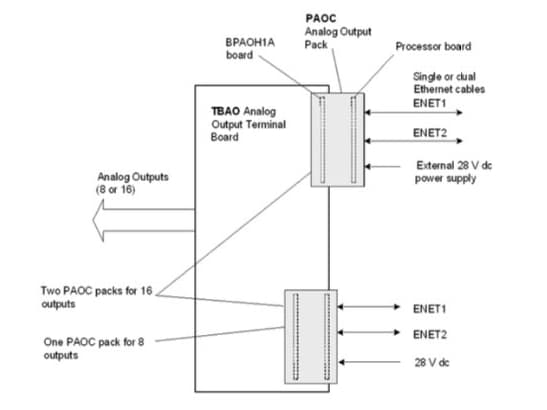

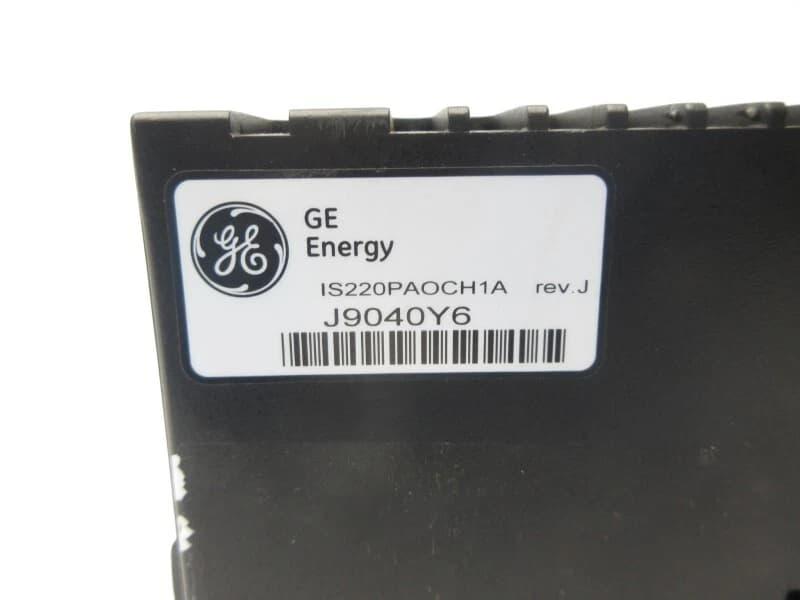

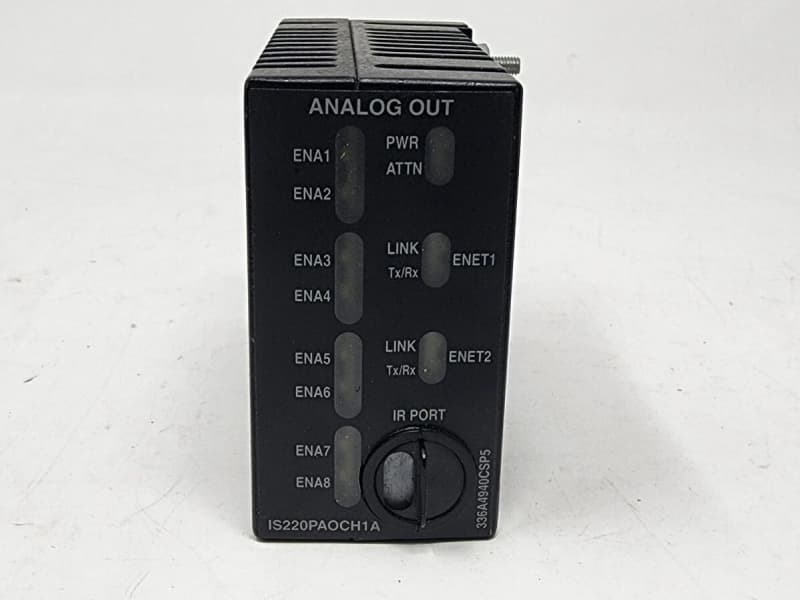

IS220PAOCH1A is an Analog Output Module manufactured by General Electric as part of Mark VIe used in gas turbine control management systems. An electrical interface between one or two I/O Ethernet networks and an analog output terminal board is provided by the Analog Output (PAOC). A BPPx processor board and an acquisition board pair tailored to the analog output function are both present in the PAOC. Up to eight simplexes, 0-20 mA current loop outputs can be provided by the PAOC, which also has an analog to digital converter for each output's current feedback. Dual RJ-45 Ethernet connectors and a three-pin power input serve as the PAOC's inputs. The related terminal board connector is directly connected to the output via a DC-37 pin connector. Indicator LEDs are used to display visual diagnostics.

PAOC I/O PACK INSTALLATION:

Mount the selected terminal board firmly.
Directly connect the PAOC I/O pack(s) to the connector on the terminal board (s).
Using the threaded studs next to the Ethernet ports, mechanically fasten the I/O pack(s). The studs slip into a mounting bracket made for the particular style of the terminal board.
It is important to position the bracket such that the DC-37 pin connector connecting the I/O pack and the terminal board is not subjected to right-angle forces. In the course of the product's service life, the adjustment should only be necessary once.
Depending on the setup of the machine, connect either one or two Ethernet wires. Either port will work with the I/O pack. If When using dual connections, it is customary to link ENET1 to the network connected to the R controller.
Connect the connector on the side of the PAOC to provide power to the I/O pack. Because the I/O pack has an inherent soft-start feature that regulates current inrush on power application, it is not essential to turn off the power before plugging the cable in.
If necessary, set up the I/O pack using the ToolboxST* program. Press F1 to bring up the Component Editor's help menu.

Frequently Asked Questions:

1.Are the Products Genuine OEM Units?
These items have been certified by WOC Quality Control to be genuine OEM Units obtained through OEM or independent third-party channels.

2.When does the warranty period start?
One year from the time the client receives the goods.

3.What is I/O Module?
An I/O module is a component that handles interface-specific tasks for connecting a CPU to the rest of the system.
