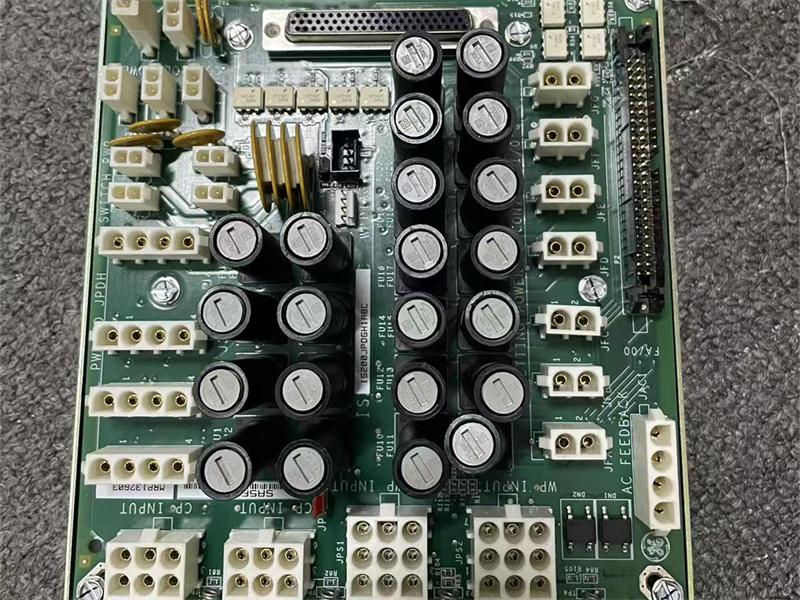

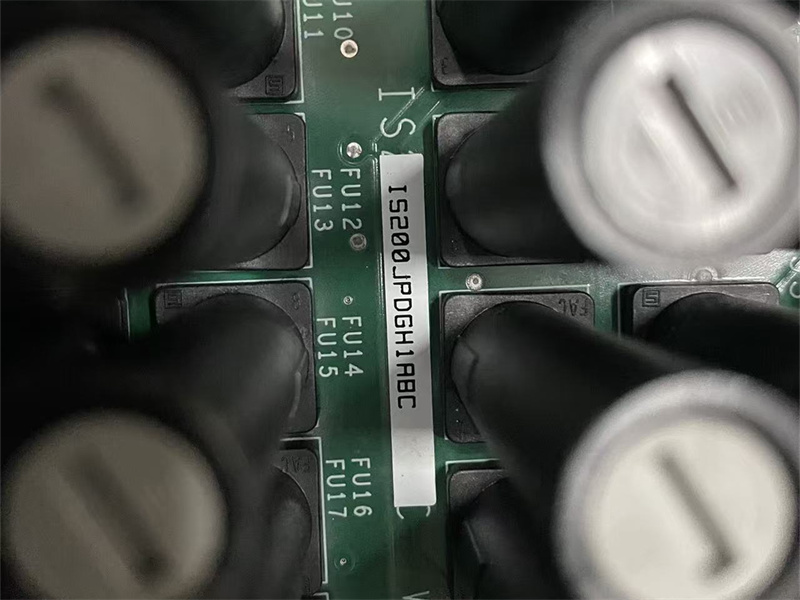

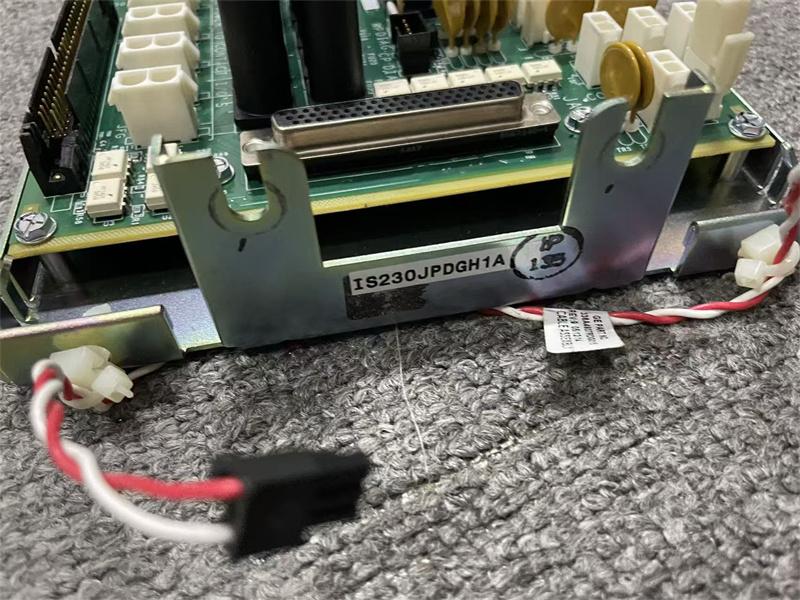

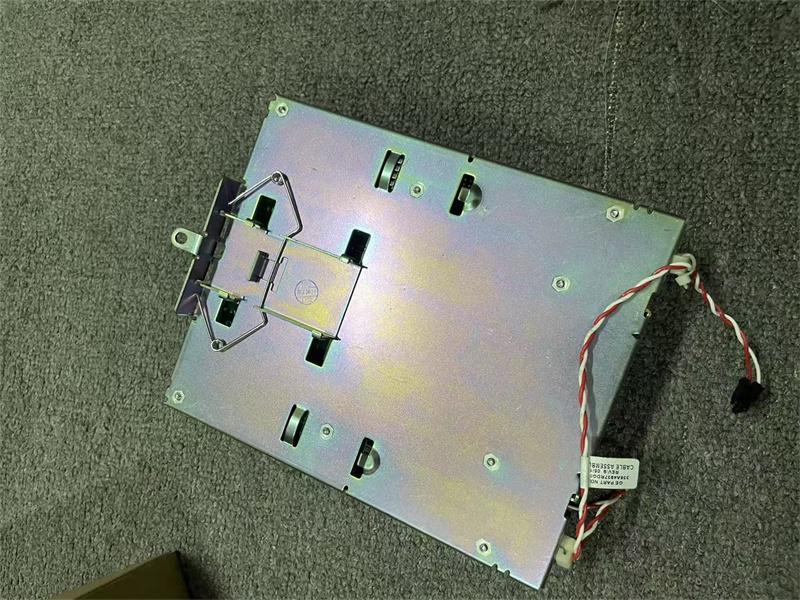

IS230JPDGH1B GE MKVIe POWER DISTRIBUTION DIN RAIL MODULE

Description:

The High Density Power Distribution (JPDG) IS230JPDGH1B board provides 48 V dc power to 24 Mark* VIe I/O packs and 3 Ethernet switches from a 48 V dc supply. Additional JPDHs can be connected in a daisy-chain arrangement to provide power to more I/O packs as required. The circuit for each I/O pack connector is protected with a positive temperature coefficient fuse device.

Features:

• Power Distribution

Distributes the input DC voltage to multiple loads.

• Overcurrent Protection

Prevents damage to loads caused by excessive current.

• Overvoltage Protection

Prevents damage to loads caused by excessive voltage.

• Short-Circuit Protection

Prevents damage resulting from short-circuit faults.

• Isolation Protection

Provides electrical isolation to enhance system safety.

• Communication Capabilities

May support various communication protocols (e.g., Modbus RTU, DNP3) to enable remote monitoring and control.

Specifications
Part Number: IS230JPDGH1B
Series Name: MKVIe
Board Type: POWER DISTRIBUTION DIN RAIL MODULE
Input Voltage: 48VDC
AC Input Voltage: 115/220VAC (50/60Hz)
AC Inputs: 2
Auxiliary Supply Voltage: 28VDC
Operating temperature: -30°C to +65°C (depending on some documentation)
Protection rating: IP20
Number of switches: 5 bridge switches, 5 power switches
Number of connectors: 52 female sockets (including 5 9-pin connectors)
Redundancy modes: Supports single, dual, and triple redundancy

Frequently Asked Questions:

1.What is the IS230JPDGH1B?
It is the MKVIe series exciter switchboard developed by General Electric (GE).
2.What is the function of the IS230JPDGH1B model?
The IS200EDISG1A model is used to connect customers' AC and DC control power supplies to system hardware.
3.What's different between IS230JPDGH1B with IS230JPDGH1A?
IS230JPDGH1A is previous part number,IS230JDPGH1B is available part number,We topteng company have both available stock
4.What types of power supplies does this JPDG accept?
The JPDG accepts both DC and AC power supplies during power distribution and reception. This flexibility allows the board to effectively control system hardware.
