Plant Network Interface Module |
| Origin | Sweden |
| HS CODE |
85389099 |
| Dimension |
24.4*7.4*17 (CM) |
| Weight | 0.5 kg |
Description:

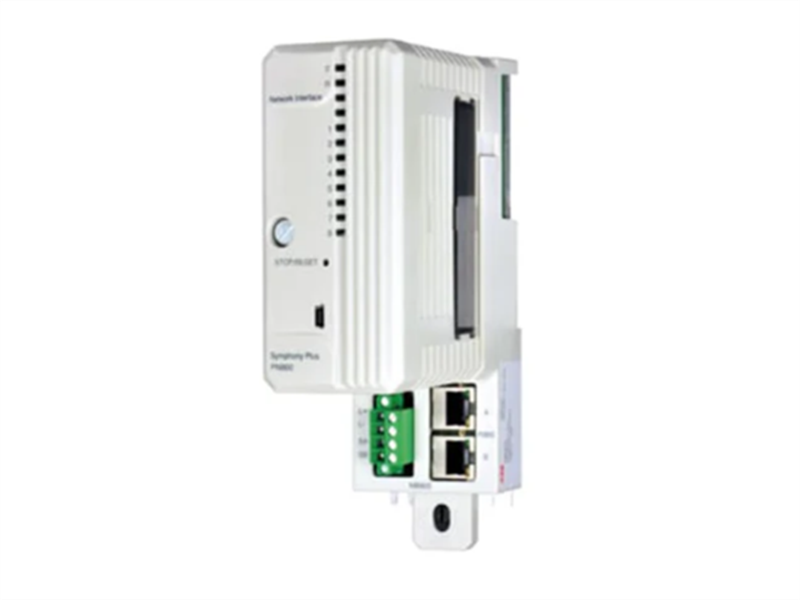

The PNI800 is a Plant Network Interface module designed for real-time communications between SD SeriesControllers and PC workstations. It supports bi-directional, real-time data exchange with S+ Engineering, HMl(SPO or 800xA Operations), and general-purpose interface software like the Harmony OPC Server. Part ofABB's Symphony Plus control systems, the PNI800 ensures reliable and efficient communication in industrialautomation environments.
This module serves as a crucial bridge, enabling data exchange, configuration, and monitoring of the PN800 system.
FEATURES
- Real-Time Communications
Supports bi-directional, real-time data exchange.
- Redundancy
Implements IEC 62439Parallel Redundancy Protocol (PRP) for network reliability.
- Virtualized Option
Available as "VPNl' software for SPE engineering, SPO&800xA Operations HMl, andgeneral-purpose interface software.
- Hot Swap Capability
Allows for easy maintenance and upgrades without system downtime.
- Diagnostics Port
Mini USB form factor on the module front plate for diagnostics.
- Mounting
Horizontal Row, xA Style (186mm).
- Network connectivity
Establishes a reliable connection between a PC and the PN800 network.
- Data transfer
Facilitates efficient data exchange between the PC and the PN800 system.
- Configuration support
Enables configuration and parameterization of PN800 devices.
- Monitoring capabilities
Allows for real-time monitoring of PN800 system parameters
Parameters:
Product ID:PNI800
ABB Type Designation: PNI800
Protocol: Harmony API(Ethernet TCP)
Communication Type: Realtime Data Server
Capacity:
- Up to 10 SPE client connections
- Up to 30,000 HMl tags
Communication Connections: Ethernet 2x RJ45 connectors on MB805 base. Diagnostics Port: 1x mini USB form factor on module front plate
Line Redundancy: Yes (via PRP)
Module Redundancy: No
Hot Swap: Yes
Form Factor: xA Style(186mm)
Mounting: Horizontal Row
HN800 Bus Length: n/a
Module Power Requirements: 200 mA @24 VDC10%
Module Power Connection: TB1on MB805 base
Environmental and Certification:
Operating Temperature: Oto +55 C
Storage Temperature: -40 to +85C
Relative Humidity: 20% to 95% @ 40C non-condensing
Protection Class: IP20(EN60529,IEC 529)
Frequently Asked Questions:
Q1. What are the basic functions and positioning of the PNI800?
A: The PNI800 is a "gateway" or "communication processor" in the ABB Symphony Plus DCS system. Its core function is to bridge the gap between the plant management layer network and the lower control layer network. It allows multiple operator stations, engineer stations, and historical stations (SCADA stations) to access and control field devices connected to the S800 I/O modules via standard Ethernet.
Q2. Where is the PNI800 typically connected? What is the network architecture?
The PNI800 is located in the middle layer of the network architecture:
Upstream (Northbound): Connects to the plant's core switch via its PNET port, becoming a node in the plant's LAN.
Downstream (Southbound): Connects to one or two S800 I/O buses via its dedicated I/O bus interface.
Multiple S800 I/O modules and fieldbus master modules can be connected to each S800 bus.
Datasheet Link:
PNI800 ABB Plant Network Interface Module PDF Datasheet
