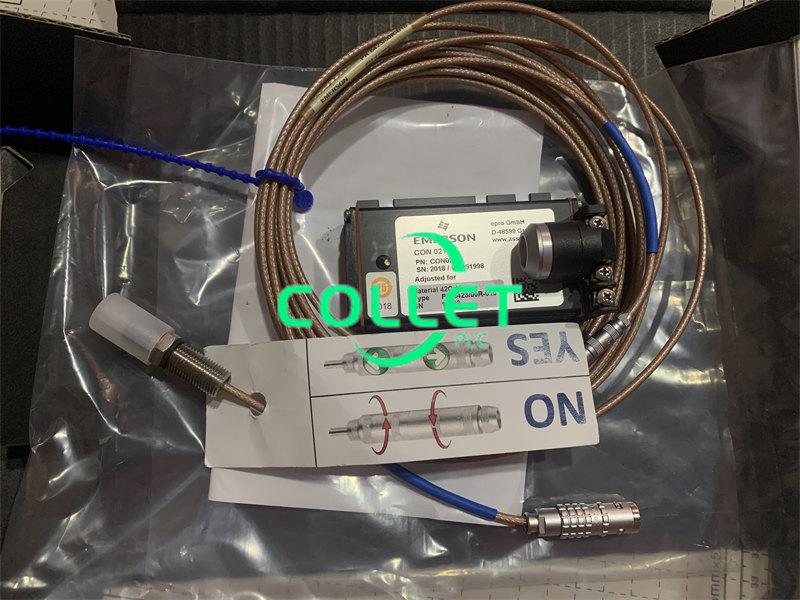

PR6423/00R-001 EPRO, 8mm Eddy Current Sensor

Description:
PR6423/00R-001 is an 8mm Eddy Current Sensor.

Model No.: PR6423/00

Case Thread X: R Reverse Mount

Adapter Plug X: 0 With

Cable Length X: 0 4.0m

Cable End X: 1 Open

Non-contact sensor designed for critical turbomachinery applications such as steam, gas and hydro turbines, compressors, gearboxes, pumps and fans to measure radial and axial shaft dynamic displacement; position, eccentricity and speed.

Specifications:
-Measuring range: 0.5 to 100 mm
-Accuracy: ±0.1%
-Repeatability: ±0.05%
-Operating temperature range: -40°C to +125°C
-Output signal: 4 to 20 mA
-Sensitivity: 8 V/mm (203.2 mV/mil)
-Initial Air Gap: 2 mm (80 mils)
-Material and Coating: Gold-plated sensor tip, stainless steel housing
-Resistance to Mechanical Stress: lmpact resistance up to 50g
-Output signal: Differential DC voltage
-Power supply Voltage: 12 V DC
-Signal Processing: Linearization circuit onboardCertifications: CE, lECEx
-Electrical Connector: M12 4-pin
-Cable Length: 3 meters (9.8 feet)
-Sensor Operating Temperature Range: -25 to +125'C(-13 to +257°F)
Features:
-Wide operating temperature range
-Rugged construction for harsh environments
-Easy installation and maintenance

• Non-Contact Precision

Measures shaft displacement, position, and eccentricity without touching the shaft, ensuring no wear or damage.

• Exceptional Range

Covers a measuring range from ±0.01 to ±10 mm, with remarkable accuracy and repeatability.
High Resolution: Boasts a resolution of 0.001 mm for precise measurements.

• Wide Frequency Response

With a frequency response spanning 0 to 10 kHz, it captures dynamic shaft movements effectively.

• Convenient Cable Length

Features a generous 10-meter cable for flexible installation.

Frequently Asked Questions:

1.What is the payment term?
Wire transfer only.

2.When does the warranty period start?
One year from the time the client receives the goods.

Datasheet Link:

PR6423/00R-001 EPRO, 8mm Eddy Current Sensor PDF Datasheet
