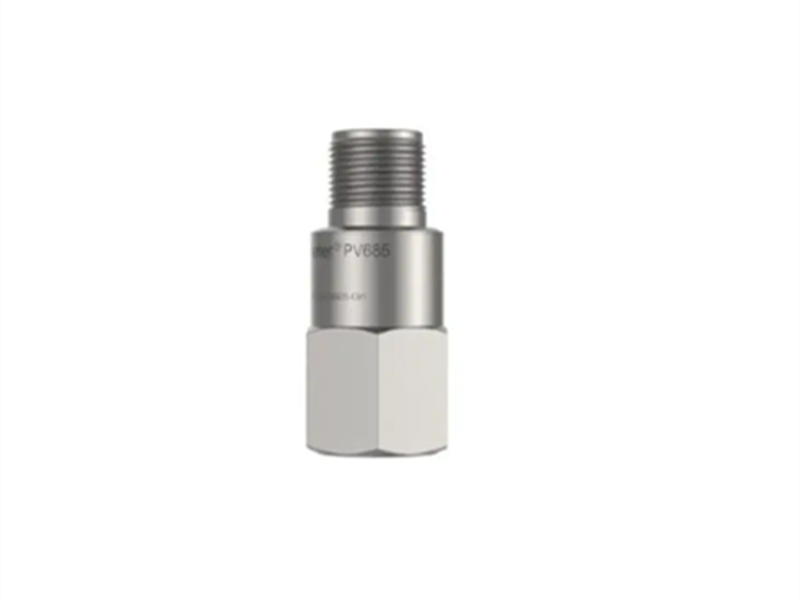

PV685 Vibration 440-685-000-111-A1-B050-C01 Piezoelectric Accelerometer

Description:

The PV685 piezoelectric velocity sensor from Meggitt’s vibro-meter® product line is a generalpurpose vibration sensor designed for the
monitoring and protection of machinery in harsh industrial environments.

The PV685 is an industry standard 4 to 20 mA loop-powered vibration sensor (vibration transmitter) that provides a vibration output signal
in a current loop.

It is available with a sensitivity of 4 to 20 mA proportional to 0 to 20 mm/s, 0 to 25 mm/s or 0 to 50 mm/s.

The PV685 is available as a sensor only or fitted with an integral cable that is protected by a stainless-steel overbraid. Sensor only versions allow one of a range of different cable assemblies to be used to connect the sensor to the monitoring system, depending on the application and environment.

Parameters:

Output Type: Current Loop (4 to 20 mA)
Sensitivity: 4 to 20 mA proportional to 0 to 20 mm/s, 0 to 25 mm/s, or 0 to 50 mm/s
Operating Temperature Range: -55 to 90°C (-67 to 194°F)
Frequency Response: 3 to 1000 Hz
Sensitivity Tolerance: ±5%
Dynamic Measurement Range: 20, 25, or 50 mm/s RMS
Linearity: ±1%
Transverse Sensitivity: <5%
Resonant Frequency: 21 kHz
Component Type: Integrated
