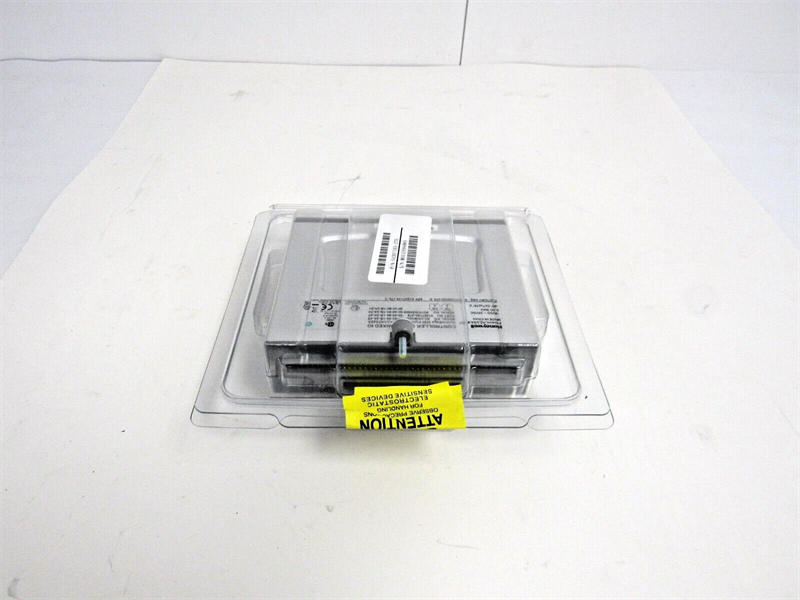

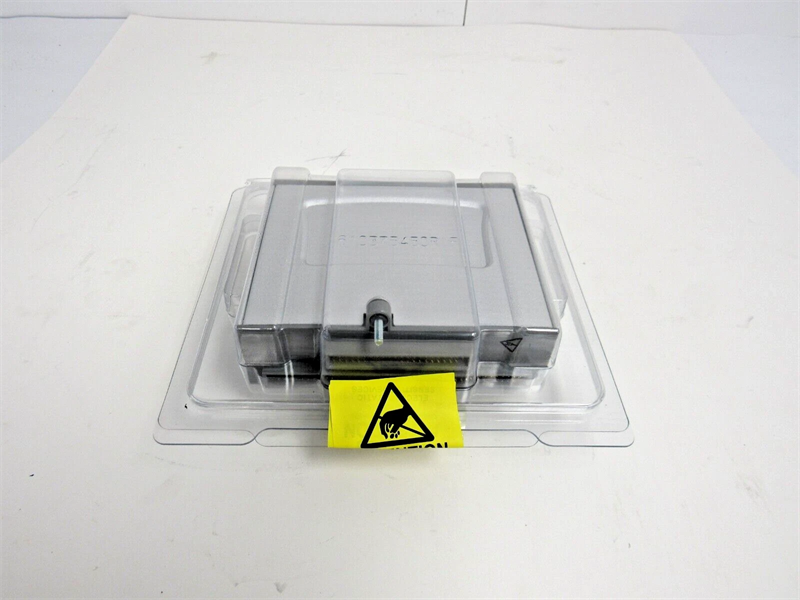

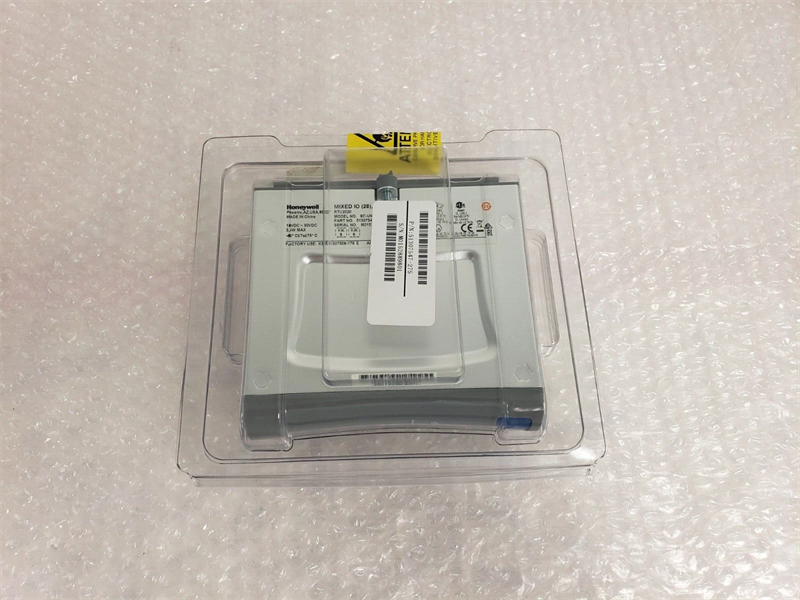

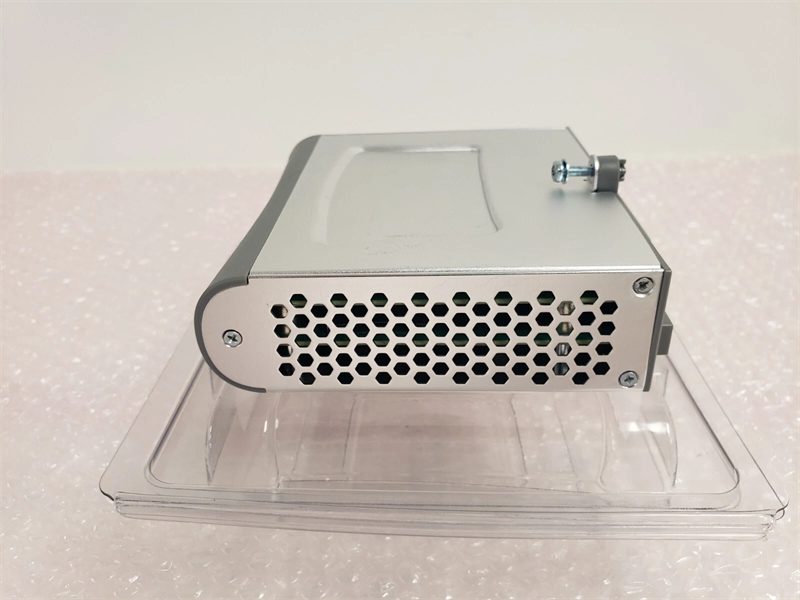

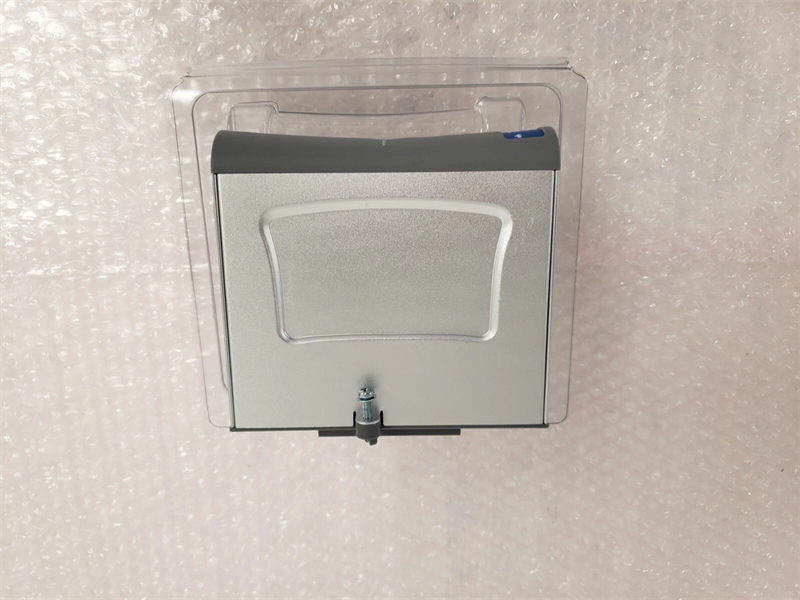

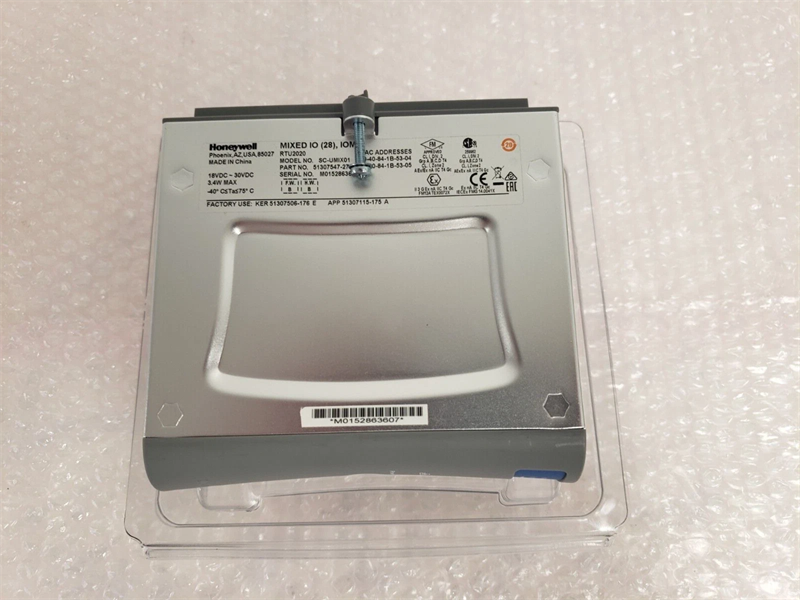

SC-UMIX01 HONEYWELL 51307547-275 Mixed IO Module

Description:

The RTU2020 family has an innovative modular hardware design with processor modules that plug onto IOTAs that contain only passive devices such as cable connectors and an I/O link expansion port allowing expansion I/O modules to connect in without any further infrastructure.

Specifications:

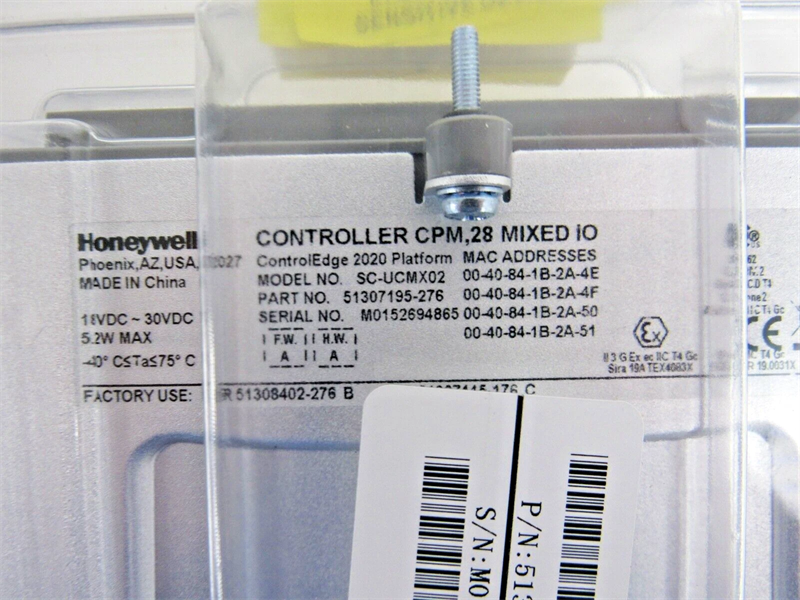

Product No. : 51307195-276

Model Code: SC-UCMX02
System Compatibility: Non-redundant Controller with Onboard Mixed I/O Module
Control Execution Environment (CEE): Supports deterministic, real-time control
Power Supply: 24 VDC, 1.2 A
Mounting: Power is supplied to the controller and I/O modules through the power input terminals on the controller IOTA and the left end plate
Communication Interfaces:
· Fault Tolerant Ethernet (FTE)
· I/O Link for Series C I/O modules
Operating Temperature: -40 °C to +75°C

Configuring an I/O module for ControlEdge 900 controller
1. From the Home Page, under I/O and Communications and click Configure Modules > Configure I/O Modules.
2. Click Add I/O Module, the Add I/O Module dialog appears.
3. Select the Type, assign the Rack and Slot, and set the IOM Scan Time for the Module.
4. Click OK to add the I/O module.
5. Select the corresponding I/O module, configure I/O channels. Configuring an I/O module for ControlEdge 2020 controller

You can configure onboard I/O modules, expansion I/O modules and a third party I/O ST103A for ControlEdge 2020 controller.

To configure an onboard I/O
1. From the Home Page, under I/O and Communications and click Configure I/O.
2. Click Onboard I/O and you can view the five channels AI, AO, DI, DO and PI.
3. Select the corresponding channel, and configure parameters.

Chapter 4 - Software
To add and configure an expansion I/O module
1. From the Home Page, under I/O and Communications and click Configure I/O.
2. Click Add I/O Module > SC-UMIX01 Mixed I/O Module, 28, the Add I/O Module dialog appears.
3. Enter the Description and select the Address for the I/O module which must be same as the rotary switch setting of the physical device. The range of the address is from one to nine.
4. Click OK to add the I/O module.
5. Click the corresponding expansion I/O module to view channels.
6. Select the corresponding channel, and configure parameters.

To add and configure an third-party I/O, ST103A
1. From the Home Page, under I/O and Communications, click Configure Third-Party I/O > ST103A.
2. Click Add ST103A Module. The Add I/O Module dialog appears.
3. Enter Description for ST103A module which will be a unique identifier for binding with specific meter runs.
4. Select Slave ID for the drop-down list. The valid value is from 1 to 15.
The ST103A should be opened to set Slave ID and row 4 bit switches will be available to configure the value from 1 to 15. See "Configuring ST103A" in the ControlEdge 2020 Platform Hardware Planning and Installation Guide for how to set Slave ID.
ATTENTION: If there are other Modbus devices connected to the same RS485 port along with ST103A, ensure that they do not conflict with each other.
5. Select the port number, and provide values for Retries and Timeout.
6. Click OK to add ST103A module.
7. Click the corresponding module to view channels.
Only ST103A's analog input, pulse input, frequency and raw pulse output can be configured via ControlEdge Builder.
8. Select the corresponding channel, and configure parameters

Features:

• Deterministic Control

Executes control logic with precise timing for critical process applications

• Redundant Architecture

Supports controller redundancy for high availability

• Integrated Diagnostics

Monitors controller health and I/O communication status

• Modular Design

Easily replaceable and scalable within Experion systems

• Secure Networking

Uses FTE for robust, fault-tolerant communication

• Real-Time I/O Processing

Interfaces with Series C I/O for fast data acquisition

• Field Proven

Widely used in refining, chemical, and power generation industries

Frequently Asked Questions:
1.What is the Dynamic memory (RAM) 128 Megabytes and Program memory (Flash) for SC-UMIX01?
128 Megabytes
32 Megabytes

2.What is the payment term?
Only wire transfer

3.When does the warranty period start?
One year from the time the client receives the goods.

Datasheet Link:

SC-UMIX01 HONEYWELL 51307547-275 Mixed IO Module PDF Datasheet
