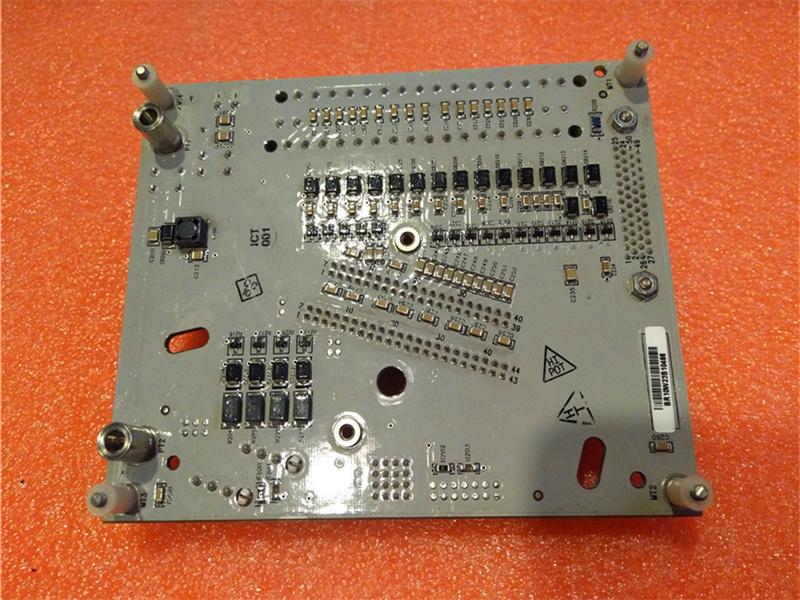

CC-TAOX01 HONEYWELL 51308351-175 Analog Output IOTA Module

Description:

Analog Output IOTA Models CC-TAOX01, CC-TAOX11, CC-TAON01 and CC-TAON11
This Series C Analog Output IOTA board is represented by the following information and graphics. To access the parts information for the:
• module
• IOTA
• terminal plug-in assembly, and
• fuses
associated with this board and module, refer to Analog Ouput in the Recommended Spare Parts section.

5.5.1 Field wiring and module protection - Analog Output module
The Analog Output module provides an output current range of 0ma, and 2.9 mA through 21.1 mA based on the requested Analog Output by the Series C controller. The output current including the HART modulated signal, does not exceed 22.5mA.

• Short circuit protection of field short circuits. Protection suitable for Division 2 non-incendive / Zone 2 nonarcing.
• Each field wiring pair can be shorted together without damage to the module or IOTA. Other channels in the same module(s) will not be affected.

• A +30 Vdc source can be continuously applied across the OUT+ to OUT- terminals of the IOTA without damage to either module(s) or IOTA (i.e. with the positive lead of the source connected to OUT+ and the negative lead connected to OUT-). To prevent damage to the IOTA surge protection diodes, the current must be limited to 500 mAdc if the source is applied in the reverse polarity (i.e. with the positive lead of the source attached to OUT-, negative lead attached to OUT+). This 500 mAdc restriction does not apply in the positive polarity case.

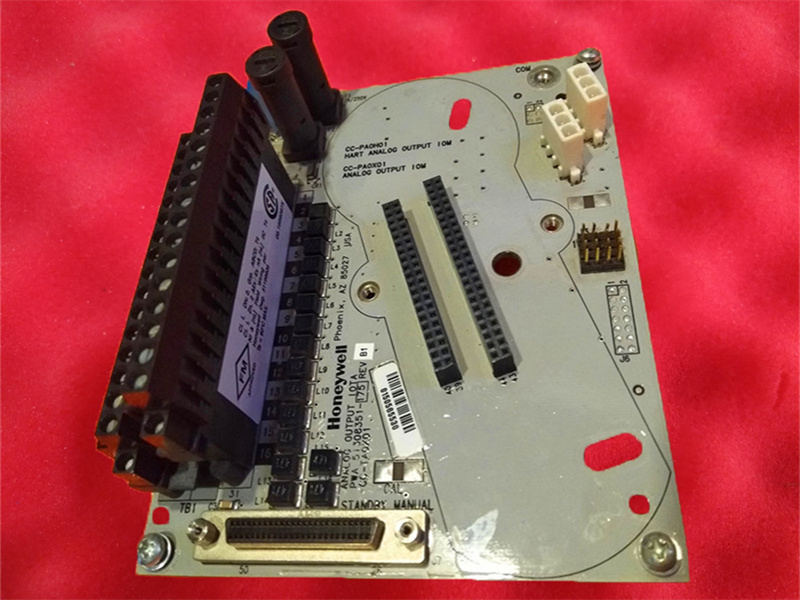

5.5.2 IOTA board and connections - Analog Output module

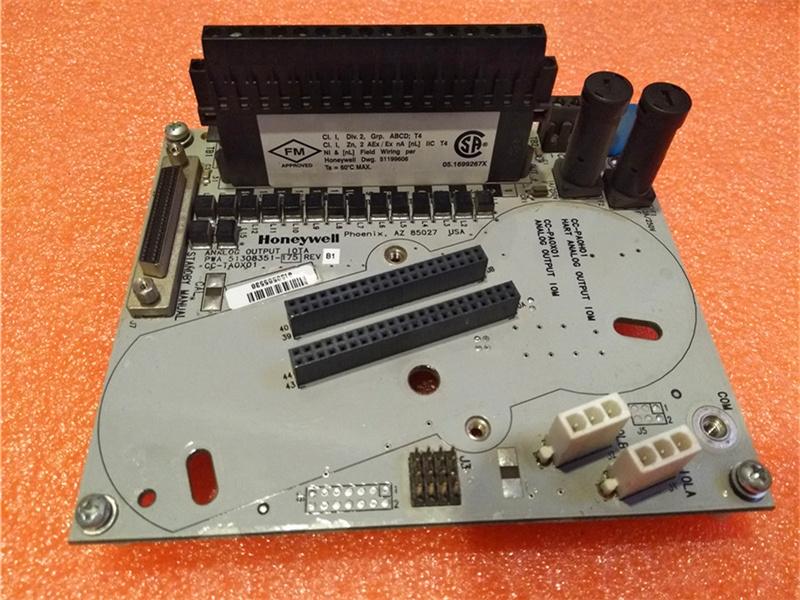

Series C Analog Output 6 inch, non-redundant IOTA is displayed.

Specifications:

Product No. : 51308351-175

Model Code: CC-TAOX01
System Compatibility: Non-redundant Controller with Onboard Mixed I/O Module
Control Execution Environment (CEE): Supports deterministic, real-time control
Power Supply: 24 VDC, 1.2 A
Mounting: Power is supplied to the controller and I/O modules through the power input terminals on the controller IOTA and the left end plate
Communication Interfaces:
· Fault Tolerant Ethernet (FTE)
· I/O Link for Series C I/O modules
Operating Temperature: -40 °C to +75°C

Configuring an I/O module for ControlEdge 900 controller
1. From the Home Page, under I/O and Communications and click Configure Modules > Configure I/O Modules.
2. Click Add I/O Module, the Add I/O Module dialog appears.
3. Select the Type, assign the Rack and Slot, and set the IOM Scan Time for the Module.
4. Click OK to add the I/O module.
5. Select the corresponding I/O module, configure I/O channels. Configuring an I/O module for ControlEdge 2020 controller

You can configure onboard I/O modules, expansion I/O modules and a third party I/O ST103A for ControlEdge 2020 controller.

To configure an onboard I/O
1. From the Home Page, under I/O and Communications and click Configure I/O.
2. Click Onboard I/O and you can view the five channels AI, AO, DI, DO and PI.
3. Select the corresponding channel, and configure parameters.

Chapter 4 - Software
To add and configure an expansion I/O module
1. From the Home Page, under I/O and Communications and click Configure I/O.
2. Click Add I/O Module > SC-UMIX01 Mixed I/O Module, 28, the Add I/O Module dialog appears.
3. Enter the Description and select the Address for the I/O module which must be same as the rotary switch setting of the physical device. The range of the address is from one to nine.
4. Click OK to add the I/O module.
5. Click the corresponding expansion I/O module to view channels.
6. Select the corresponding channel, and configure parameters.

To add and configure an third-party I/O, ST103A
1. From the Home Page, under I/O and Communications, click Configure Third-Party I/O > ST103A.
2. Click Add ST103A Module. The Add I/O Module dialog appears.
3. Enter Description for ST103A module which will be a unique identifier for binding with specific meter runs.
4. Select Slave ID for the drop-down list. The valid value is from 1 to 15.
The ST103A should be opened to set Slave ID and row 4 bit switches will be available to configure the value from 1 to 15. See "Configuring ST103A" in the ControlEdge 2020 Platform Hardware Planning and Installation Guide for how to set Slave ID.
ATTENTION: If there are other Modbus devices connected to the same RS485 port along with ST103A, ensure that they do not conflict with each other.
5. Select the port number, and provide values for Retries and Timeout.
6. Click OK to add ST103A module.
7. Click the corresponding module to view channels.
Only ST103A's analog input, pulse input, frequency and raw pulse output can be configured via ControlEdge Builder.
8. Select the corresponding channel, and configure parameters

Related topics
“Analog Input IOTA Models CC-TAIX01, CC-TAIX11” on page 76
“Analog Input non-HART/HARTIOTA Models Cx-TAIX51, Cx-TAIX61” on page 87
“Non-HART Analog Input IOTA (Models CC-TAIN01, CC-TAIN11)” on page 94
“Differential Analog input IOTA (Models CC-TAID01 and CC-TAID11)” on page 101
“Analog Output IOTA Models CC-TAOX01, CC-TAOX11, CC-TAON01 and CC-TAON11” on page 114
“Analog Output HART IOTA Models Cx-TAOX51, Cx-TAOX61” on page 121
“Low Level Analog Input Mux (LLMUX) IOTA Models CC-TAIM01” on page 125
“Digital Input High Voltage IOTA Models CC-TDI110, CC-TDI120, CC-TDI220, CC-TDI230” on page 129
“Digital Input High Voltage PROX IOTA Model Cx-TDI151” on page 134
“Digital Input 24V IOTA Models CC-TDIL01, CC-TDIL11” on page 138
“Digital Input 24V IOTA Models Cx - TDIL51, Cx - TDIL61” on page 146
“Digital Output 24V IOTA Models CC-TDOB01, CC-TDOB11” on page 152
“Digital Output 24V IOTA Models Cx-TDOD51, Cx-TDOD61” on page 157
“Digital Output Relay Module IOTA Models CC-TDOR01, CC-TDOR11” on page 162
“Digital Output Relay Extender board Models CC-SDOR01” on page 164
“Speed Protection Module IOTA Model CC-TSP411” on page 168
“Servo Valve Positioner Module IOTA Models CC-TSV211” on page 175
“Universal Input/Output IOTA Models CC-TUIO01 and CC-TUIO11” on page 183
“Universal Input/Output Phase 2 IOTA Models CC-TUIO31 and CC-TUIO41” on page 192
“Pulse Input Module IOTA Model CC-TPIX11” on page 201
“Upgrading Firmware in Series C I/O components” on page 203

Frequently Asked Questions:
1.What is the Dynamic memory (RAM) 128 Megabytes and Program memory (Flash) for CC-TAOX01?
128 Megabytes
32 Megabytes

2.What is the payment term?
Only wire transfer

3.When does the warranty period start?
One year from the time the client receives the goods.
