Manufacture |
ABB |
|
Model |

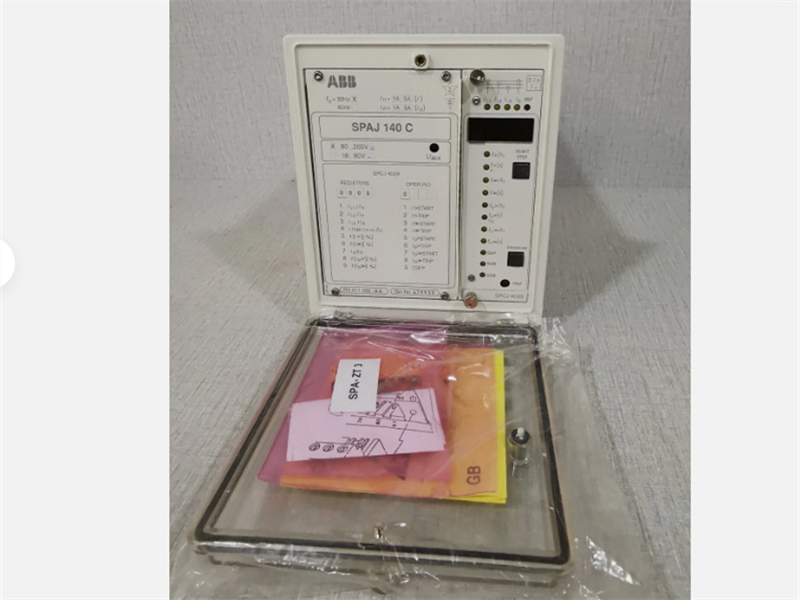

SPAJ140C-DA |
| PN No. |
SPAJ140C-DA |
| Catalog | Spare Parts |
| Description |
Overcurrent and Earth-Fault Relay |
| Origin | Sweden(SE) |
| HS CODE |
85371098 |
| Dimension |
18*18*5 (CM) |
| Weight | 3.5 kg |
Description:
The combined over-current and earth-fault relay SPAJ 140 C-DA is used for the selective short-circuit and earth-fault protection of radial feeders in solidly-earthed, resistance-earthed or impedance-earthed power systems. This integrated protection relay includes an over-current unit and an earth-fault unit with flexible tripping and signalling facilities. These relays can also be used for other applications, which require single, two, or three-phase over-current protection. This combined over-current and earth-fault relay also includes a circuit-breaker failure protection unit.
Features:
- Easy-to-use relay with the most essential functions for over-current and earth fault protection
- Three-phase, low-set phase overcurrent unit with definite time or inverse definite minimum time (IDMT) characteristic
- Three-phase, high-set phase overcurrent unit with instantaneous or definite time operation
- Low-set earth-fault unit with definite time or inverse definite minimum time (IDMT) characteristic
- High-set earth-fault unit with instantaneous or definite time operation
- Built-in circuit-breaker failure protection
- Self-supervision system continuously monitoring the operation of the electronics and the microprocessor
Parameters:
Input Ratings
Rated Current (In): 1 A or 5 A
Thermal Withstand:
- Continuous: 4 A / 20 A
- 1 second: 100 A / 500 A
Input Impedance: <100 mΩ (1 A), <20 mΩ (5 A)
Rated Frequency: 50 Hz or 60 Hz
Output Contact Ratings
Tripping Contacts: Terminals 65-66, 74-75
Rated Voltage: 250 V DC/AC
Continuous Carry Current: 5 A
Make and Carry Current:
- 30 A for 0.5 seconds
- 15 A for 3 seconds
- 5 A at 48 V DC
- 3 A at 110 V DC
- 1 A at 220 V DC
