Manufacture |
ABB |
|
Model |

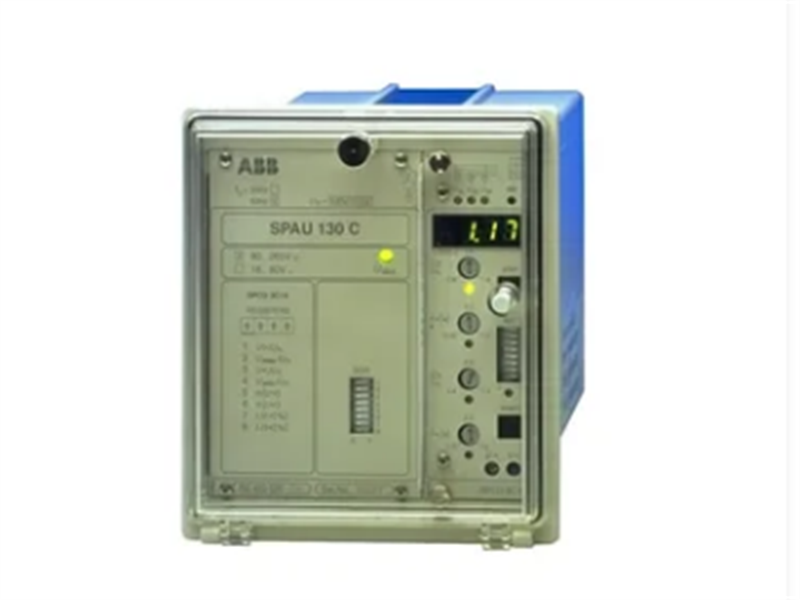

SPAU130C-AA |
| PN No. |
SPAU130C-AA |
| Catalog | Spare Parts |
| Description |
Three-phase overvoltage and undervoltage relay |
| Origin | Sweden(SE) |
| HS CODE |
85371098 |
| Dimension |
18*18*5 (CM) |
| Weight | 3.5 kg |
Description:
The three-phase voltage relay SPAU 130 C is intended to be used for over- and undervoltage protection and supervision in distribution substations. The relay can also be used for over- and undervoltage protection of generators, motors and transformers. Generally, the relay measures the three phase-to-phase voltages of the system, but it can also be programmed for single-phase measurement.
The overvoltage stage can be given definite time characteristic or inverse time characteristic. The undervoltage stage features definite time characteristic alone. An external control signal can be used to block the operation of the undervoltage stage. The relay forms a whole including over- and undervoltage stage as well as flexible trip and alarm functions.
Features:
Parameters:
Model Number:SPAU130C-AA
Type:Overcurrent Relay
Operating Voltage Range:100-480V AC
Max Current Rating:120A
Protection Level:Class B
Operating Frequency:Up to 50 Hz
Relay Contacts:SPDT (Single Pole Double Throw)
Contact Rating:30A @ 250V AC
Contact Material:Silver Iridium
Insulation Material:Polyester Resin
Mounting:Panel Mount
Operating Temperature:-40°C to +85°C
Humidity:Up to 95% RH non-condensing
Safety Certification:UL, CE, CSA
Datasheet Link:
SPAU130C-AA ABB Three-phase overvoltage and undervoltage relay PDF Datasheet
