Manufacture |
ABB |
|
Model |
SPAU140C-CA |
| PN No. |
SPAU140C-CA |
| Catalog | Spare Parts |
| Description |

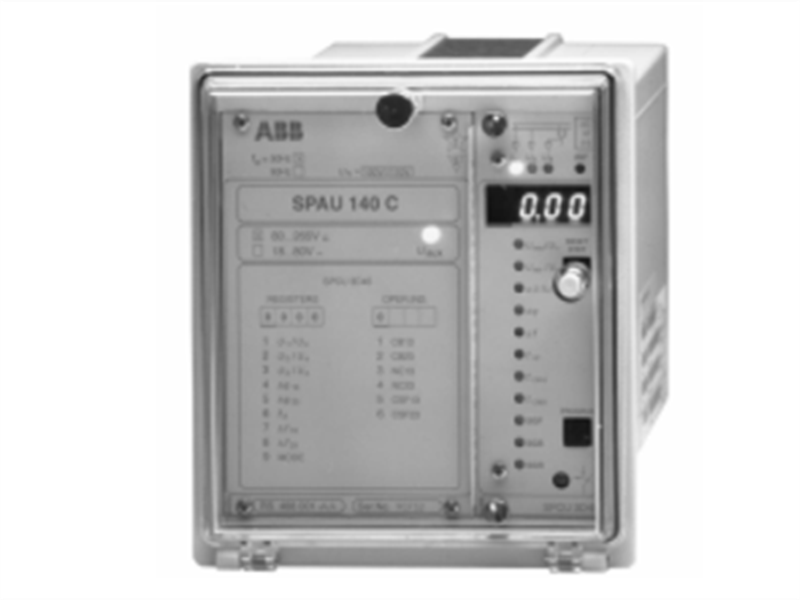

Synchro-check relay |
| Origin | Sweden(SE) |
| HS CODE |
85371098 |
| Dimension |
18*18*5 (CM) |
| Weight | 3.5 kg |
Description:
The numerical synchro-check relay type SPAU 140 C is a voltage measuring relay designed to be used when two power systems are to be connected together.
The synchro-check relay SPAU 140 C can be used for both synchro-check functions and voltage-check functions. The synchro-check function is used when two separate networks or two electrically interconnected network sections are to be connected together. The voltage-check function is used when a disconnected bus/line is to be connected to an energized section of a network. The synchro-check function allows circuit breaker closing only if the voltages on both sides of the circuit breaker fulfill the preset conditions as to magnitude, phase and frequency difference.
Features:
- Two identical operation stages allowing the closing conditions of two separate circuit breakers to be checked
- Synchro-check function available for both operation stages
- Voltage-check function available for both operation stages
- Two different operation modes: continuous
- Continuous auto-diagnostic self-supervision of both relay hardware and software
Parameters:
Model Number:SPAU140C-CA
Type:Overcurrent Relay
Operating Voltage Range:100-480V AC
Max Current Rating:120A
Protection Level:Class B
Operating Frequency:Up to 50 Hz
Relay Contacts:SPDT (Single Pole Double Throw)
Contact Rating:30A @ 250V AC
Contact Material:Silver Iridium
Insulation Material:Polyester Resin
Mounting:Panel Mount
Operating Temperature:-40°C to +85°C
Humidity:Up to 95% RH non-condensing
Safety Certification:UL, CE, CSA
Datasheet Link:
SPAU140C-CA ABB Synchro-check relay PDF Datasheet
