Manufacture |
ICS Triplex |
|
Model |
T8310CX |
| PN No. | T8310CX |
|
Catalog |
PD-T8310 |
|
Description |
Expander Processor Module |
| Origin | Sweden |
| HS CODE |
85389099 |
| Dimension |
30.3*26.6*3.1(CM) |
| Weight | 1.33 kg |
Description:

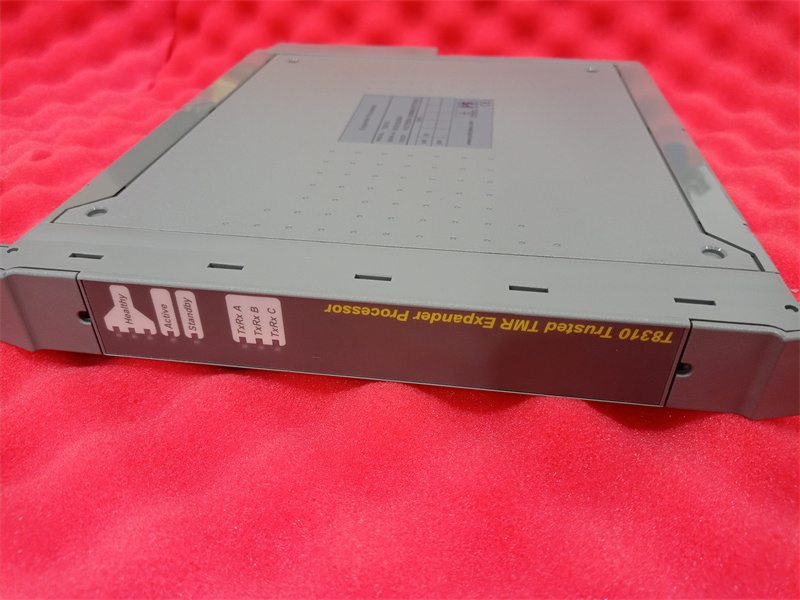

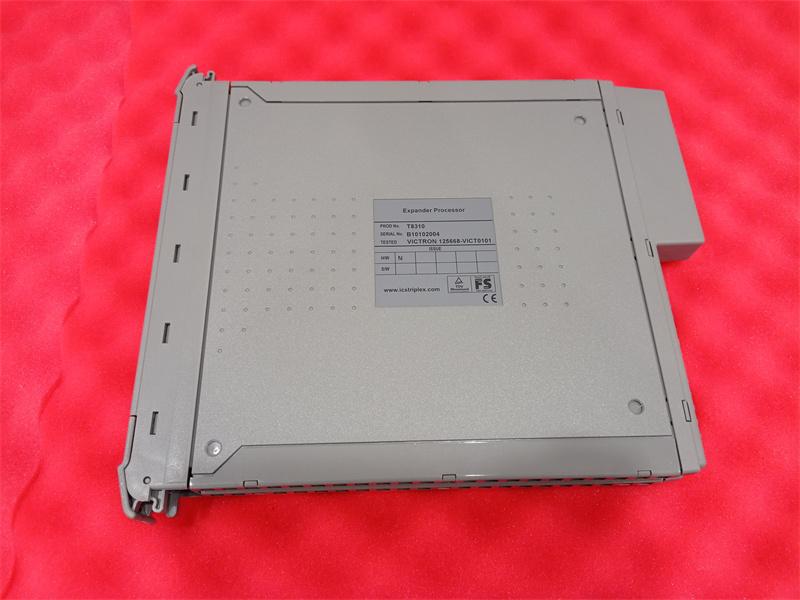

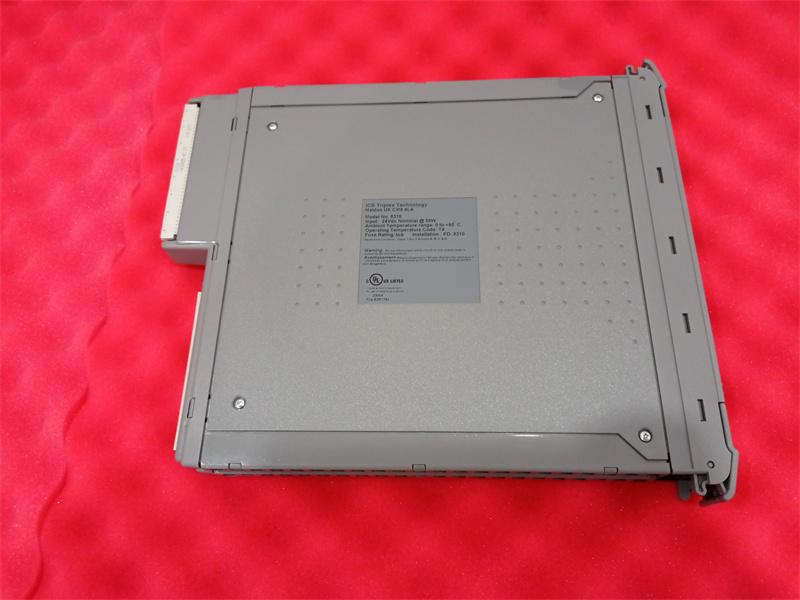

The Trusted® TMR Expander Processor Module resides in the processor slots of the Trusted Expander Chassis and provides the ‘slave’ interface between the Expander Bus and the Expander Chassis Backplane. The Expander Bus allows multiple chassis systems to be implemented using Unshielded Twisted Pair (UTP) cable connections whilst maintaining the fault tolerant, high bandwidth Inter-Module Bus (IMB) capabilities.
The Module provides fault containment for the Expander Bus, the Module itself and the Expander Chassis, ensuring that the effects of these potential faults are localised and system availability maximised. The Module is fault tolerant with HIFT TMR architecture. Comprehensive diagnostics, monitoring and testing provide rapid fault identification. Hot-standby and module spare configurations are supported, allowing automatic and manual repair strategies
Parameters:
Model Number: T8310CX
Type: TMR
Nominal Voltage: 24 VDC
Voltage Range: 20-32 VDC
Voltage Drop: < 4V, typical
Output Signals: 16, non-commoned
Current Ratings
- Maximum: 2A per point
- Surge: 10A for 10 ms
Chassis Leakage: n/a
Fuses (on Field Termination): 1 per output, 2.5A fast-acting
Point Isolation: 1500 VDC
Operating Temperature 0 °C to +60 °C (+32 °F to +140 °F)
Storage Temperature -25 °C to +70 °C (-13 °F to +158 °F)
FEATURES:
• Triple Modular Redundant (TMR), fault tolerant (3-2-0) operation.
• Hardware Implemented Fault Tolerant (HIFT) architecture.
• Dedicated hardware and software test regimes which provide very fast fault recognition and response times.
• Automatic fault handling without nuisance alarming.
• Hot replacement.
• Front Panel indicators that show module health and status.
The TRICONEX 3604E features real-time monitoring and diagnostic capabilities, helping users identify and resolve problems promptly, thereby improving system availability. Flexibility: This controller supports a variety of input/output modules, allowing for configuration and expansion to meet specific application needs.
-Voltage loopback circuit for independent switch verification and potential fault detection.
-Field connection requires an external terminal block (ETP).
-Mechanical keying ensures correct installation.
-Load and fuse monitoring with load/fuse alarm indicators.
