T8314 ICS TRIPLEX Trusted Fibre TX/RX Unit Brand New

The Trusted® Fibre Transmitter/Receiver (Tx/Rx) Unit T8314 is designed to extend the Trusted Expander Bus over distances of up to 10 km. This enables a Trusted Expander Chassis to be located remotely from the Trusted System.

  • Item NO.:

    T8314
  • Payment:

    T/T
  • Price:

    $580
  • Product Origin:

    MEXICO
  • Shipping Port:

    Xiamen
  • Lead Time:

    5-7 days
  • Goods Stock:

    2
  • Product weight:

    0.32 kg

Manufacture
ICS TRIPLEX
Model
T8314
PN No.  T8314
Catalog
Trusted
Description
Trusted Fibre TX/RX Unit
Origin MEXICO
HS CODE 85389091
Dimension 11*8*4 (CM)
Weight 0.32 kg

Description:

The Trusted® Fibre Transmitter/Receiver (Tx/Rx) Unit T8314 is designed to extend the Trusted Expander Bus over distances of up to 10 km. This enables a Trusted Expander Chassis to be located remotely from the Trusted System.

Note: It is recommended that if a remote Expander Chassis is to be located more than 2 km from the Controller Chassis, the route of the cable is surveyed.

The Expander Bus is extended by means of a communications link using a single mode fibre optic cable. The Trusted Fibre TX/RX Unit converts the differential signals of the copper based Expander Bus to a fibre optic signal for transmission via the single mode cable. Three totally independent pairs of Trusted Fibre TX/RX Units provide a non-interfering ‘Grey Channel’ approach to safety.

The Trusted Fibre TX/RX Unit T8314 is designed to be DIN rail mounted in the rear area of a cabinet/bay containing the Trusted Controller Chassis T8100. A block diagram of the Unit is shown in Figure 2 below:

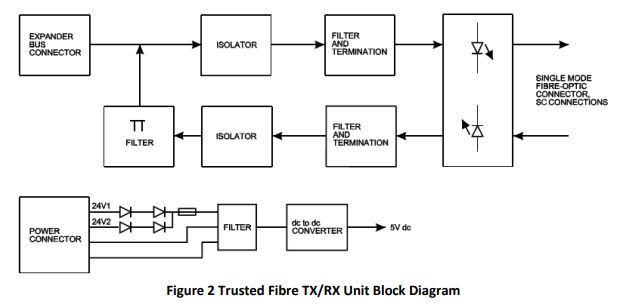

T8314 Trusted Fibre TX/RX Unit Block Diagram

The Unit provides a communications connection interface between the Trusted Controller Chassis and a remote Expander Chassis.

The Positive Emitter Coupled Logic (PECL) signal from the Trusted Expander Interface Module in the Controller Chassis is connected to the Unit by a Trusted Expander Cable TC-302. The signal is fed through an isolator, then filtered and terminated before being connected to the PECL input of the Fibre-optic Transceiver. The fibre-optic signal is transmitted to a similar Unit at the remote end via a Single Mode Fibre-Optic Cable. The Fibre-optic Transceiver at the remote end of the link converts the signal back to a PECL signal before transmitting it to the Trusted Expander Processor Module via a filter/termination circuit, isolator and ‘π’ filter. Signals originating from the Trusted Expander Processor Module in the remote Expander Chassis are processed in the same manner.

Features:


  • Dual 24 Vdc diode ORed power supply.
  • Easy installation (Din rail mounting).
  • Communications over a distance of 10 km.
  • Independent units therefore easily maintained.
  • Square Connector (SC) type connectors to two fibres (Tx and Rx).
  • Low power consumption.


Frequently Asked Questions:
1.What is the Backplane (IMB) Supply of T8314?
20 Vdc to 32 Vdc

2.What is Retained Variable Storage of T8314?
4 KB total
1 byte per Boolean
4 bytes per Analogue
5 bytes per Timer


3.When does the warranty period start?
One year from the time the client receives the goods.


Datasheet Link:

T8314 ICS TRIPLEX Trusted Fibre TX/RX Unit Brand New PDF Datasheet

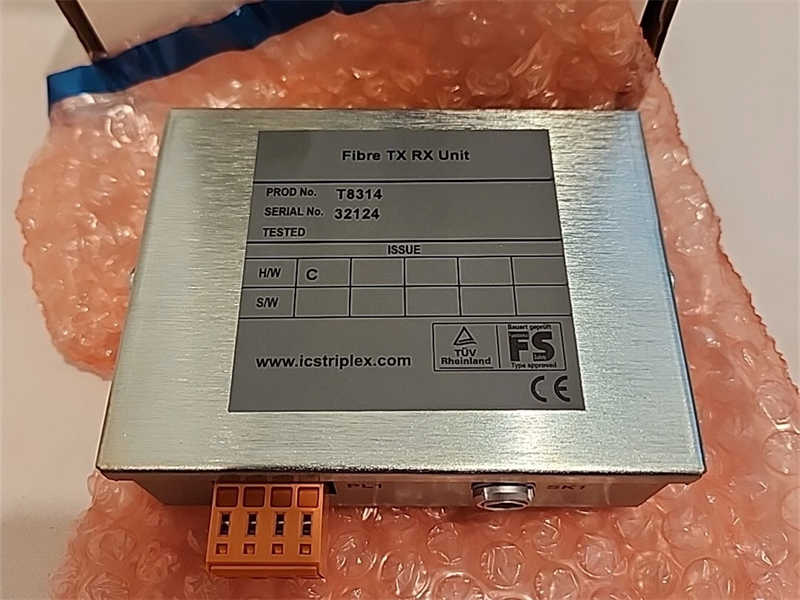

T8314 picture

一年保修插画-一年保修手绘-一年保修卡通图-摄图新视界
