TC-FXX132 Honeywell Experion 13 Slot Chassis

Description:

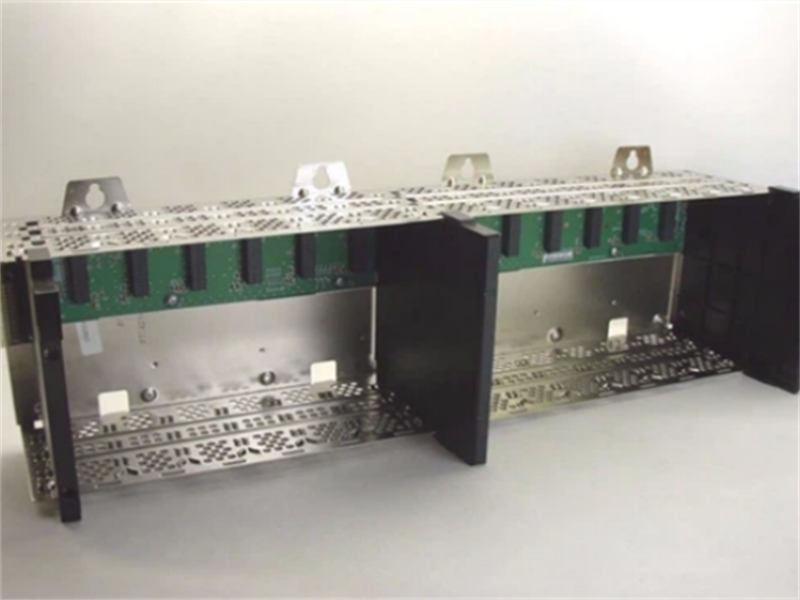

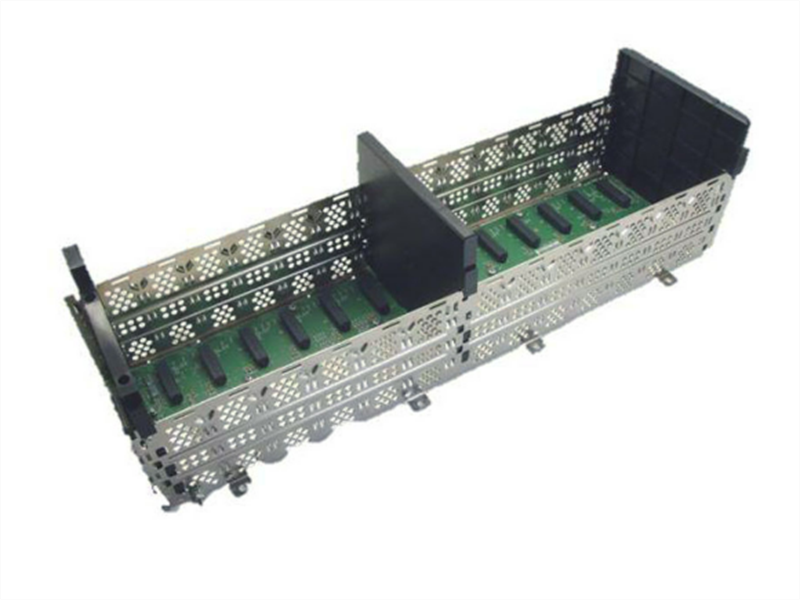

The TC-FXX132 is a compact 13-slot Experion chassis designed specifically for Honeywell C300 controllers, providing stable mechanical support and reliable integration for Honeywell control system architectures. It enables conversion between twisted-pair and fiber optic media in ControlNet networks. Its 13 slots can accommodate up to 13 cards or modules, meeting the needs of systems with high I/O, communication, or processing requirements. Each slot can accommodate different types of modules.

This module supports long-distance communication and enhanced noise immunity, making it ideal for large-scale industrial applications with extremely high data transmission reliability requirements.

Specifications:

Model Number: TC-FXX132
Communication Speed: 5 Mbps
Connectors

• Twisted Pair: DB9 male0
• Fiber Optic: SC or ST (user-selectable)

Communication Interface: RS-485
Relay Outputs: Up to 10
Input Channels: Up to 10

Features:

• Media Conversion

Converts between twisted pair and fiber optic media.

• Long-Distance Communication

Supports extended network reach with reduced signal interference.

• High Reliability

Ensures dependable data transfer over long distances.

• Compact Design

Optimized for space efficiency in control systems.

• Built-in Diagnostics

Provides real-time status and fault detection.

• Robust Performance

Suitable for harsh industrial environments.

• Slot configuration

Honeywell TC-FX132 rack has 13 sots, which can accommodate up to 13 cards or modules. Itis suitable for systems with largerequirements for lo, communicationor procesing power. Each slot can be installed with diferentypes of modules, such as inputoutput ()modules,communication modules, control modules, etc.

• Power requirements

Since HoneywellTC-FX132 rack chassis supports 13 slots, it is necessary to ensure that the power module has enough powertosupporthe power consumption ofallcards. tis necessary to accurately evaluate the curent and powerequirements ofeach moduleto prevent systeminstability due to insufficient power.

• Power management

Honeywell TCFXx132 rackis equipped witha power module to provide the required power for all modules in the rack, and itmustmeet the power consumption requirements of all modules in the chassis. The power capacity of the power module is critical.

• Heat dissipation and space

Multiple high- power modules may be installed in the HoneywellTC-FXX132 chassis. Heat dissipation design is critical. Itisnecessary to ensure that there isenough space around the chassisto support air circulation to avoid overheating of the equipment due to poor heatdissipation.
