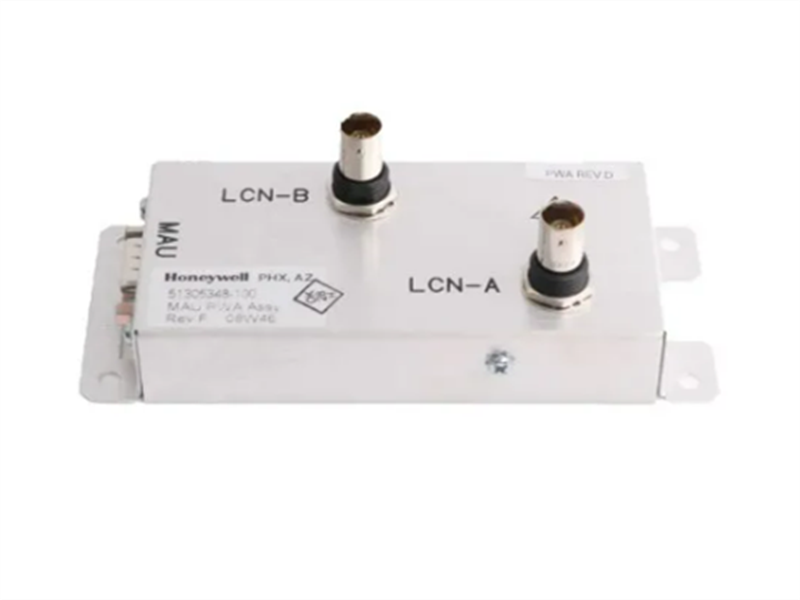

51305348-100 Honeywell MAU ASSY LCN Media Adapter Unit

Description:

The Honeywell 51305348-100 is a high-performance MAU LAN interface board designed to enhance communication within the TDC 3000 distributed control system. It ensures seamless real-time data exchange between the Local Control Network (LCN) and field devices, supporting efficient process automation. Designed to Honeywell's stringent quality standards, this module provides unparalleled stability and accuracy for critical industrial applications.

This rugged industrial-grade module features high-speed data transmission and is fully compatible with the TDC 3000 LCN architecture. Its advanced signal processing technology minimizes latency and interference, ensuring seamless integration with controllers, sensors, and other automation components.

As a critical network communication component in the DCS architecture, it ensures reliable data exchange between the system MAU (Multiplex Access Unit) and the Local Area Network (LAN), guaranteeing smooth transmission of control commands and process data.

Utilizing a robust industrial-grade circuit design and premium materials, this board maintains excellent electromagnetic interference immunity and stability even in harsh industrial environments with high dust levels, fluctuating humidity, and extreme temperatures.

The 51305348-100 LCN media adapter is ideal for industries such as oil and gas, chemicals, power generation, and large-scale manufacturing, enhancing system flexibility and scalability. It enables reliable process control and monitoring, helping operators maintain optimal performance.

Specifications:

Product Number: 51305348-100
Product Type: MC-PAOX03 Analog Output (AO)

Power Supply: Matched with TDC3000 / TPS system power supply (typically 24VDC)
Communication Protocol: Compatible with TDC3000 system LAN communication protoco
Operating Voltage Tolerance: ±10% of rated voltage
Certifications: CE, UL compliant
Operating Temperature: -40°C to 85°C
Storage Temperature: -40°C to 125°C
Relative Humidity: 5% – 95% (non-condensing)
Vibration Resistance: Conforms to IEC 60068-2-6 standard
Hardware accuracy (CMV = 0 V): ± 0.075% of full scale (23.5°C ± 2°C), ± 0.15% of full scale (0 to 50°C)

Features:

• High-density channel design

Equipped with 16 independent output channels, it can simultaneously control multiple devices, reducing the number of modules required and optimizing rack space utilization.

• Dual output type selection

Supports relay output and solid-state output, flexibly adapting to different load types. Relay output is suitable for high-power devices, while solid-state output is suitable for low-power, high-speed switching applications.

• Enhanced isolation

Isolation design between channels and between channels and ground minimizes electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring signal transmission integrity in noisy industrial environments.

• Diagnostic functions

Built-in diagnostic functions detect output faults (such as short circuits, overloads) and open circuit problems, and are equipped with LED status indicators for easy troubleshooting and maintenance.

• Overload protection

Each channel includes an overload protection mechanism to prevent overcurrent damage to the module, improving module durability and reliability.

Datasheet Link:

51305348-100 Honeywell MAU ASSY LCN Media Adapter Unit PDF Datasheet
