TK-3E 177313-01-01 Bently Nevada Proximity System Test Kit

Description:

     The TK-3 Proximity System Test Kit simulates shaft vibration and position for calibrating Bently Nevada monitors. It verifies the operating condition of the monitor readouts as well as the condition of the proximity transducer system. A properly calibrated system ensures that the transducer inputs and the resulting
monitor readings are accurate.

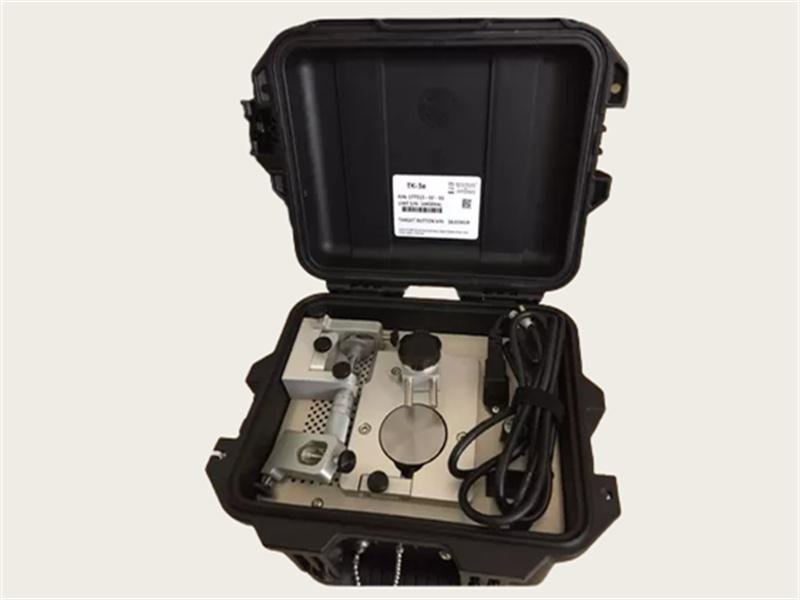

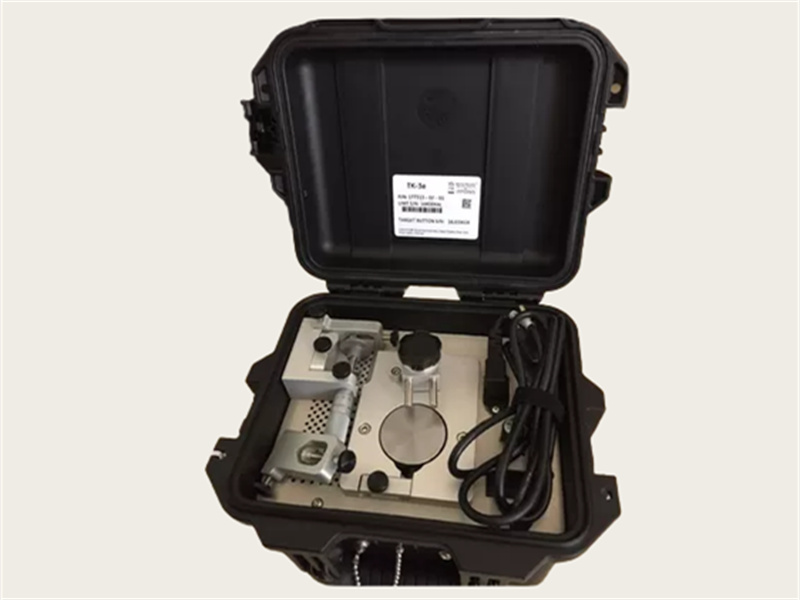

     The TK-3 uses a removable spindle micrometer assembly to check the transducer system and position monitor calibration. This assembly features a universal probe mount that will accommodate probe diameters from 5 mm to 19 mm (0.197 in to 0.75 in). The mount holds the probe while the user moves the target toward or away from the probe tip in calibrated increments and records the output from the Proximitor® Sensor using a voltmeter. The spindle micrometer assembly also features a convenient magnetic base for ease of use
in the field.

Features:

Advanced monitoring and diagnostic features
Real-time data acquisition
High-quality construction for durability
Easy installation and configuration
Compatible with a wide range of industrial systems and protocols
SPECIFICATIONS:

• Power Requirements

Datasheet Link:

TK-3E 177313-01-01 Bently Nevada Proximity System Test Kit PDF Datasheet
