TQ403 111-403-000-013 A1-B1-C086-D000-E050-F2-G048-H05 Proximity Probe

Description:

The TQ403, EA403 and IQS900 form a proximity measurement system from Meggitt’s vibro-meter® product line. This proximity measurement system allows contactless measurement of the relative displacement of moving machine elements.

TQ4xx-based proximity measurement systems are particularly suitable for measuring the relative vibration and axial position of rotating machine shafts, such as those found in steam, gas and hydraulic turbines, as well as in alternators, turbocompressors and pumps

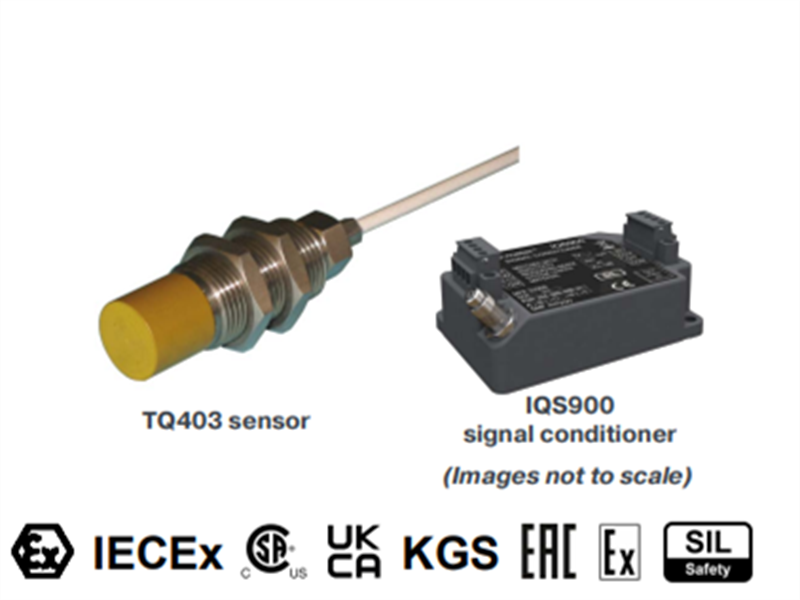

The system is based around a TQ403 non-contact sensor and an IQS900 signal conditioner. Together, these form a calibrated proximity measurement system in which each component is interchangeable.The system outputs a voltage or a current proportional to the distance between the transducer tip and the target, such as a machine shaft.

The active part of the transducer is a coil of wire that is moulded inside the tip of the device, made of Torlon® (polyamide-imide). The transducer body is made of stainless steel. The target material must, in all cases, be metallic.

The transducer body is available only with metric thread. The TQ403 has an integral coaxial cable, terminated with a self-locking miniature coaxial connector. Various cable lengths (integral and extension) can be ordered.

The IQS900 signal conditioner contains a highfrequency modulator/demodulator that supplies a  driving signal to the transducer. This generates the necessary electromagnetic field used to measure the gap. The conditioner circuitry is made of high-quality components and is mounted in a painted aluminium housing.

Note: The IQS900 signal conditioner matches or betters the outstanding measurement performance and specifications of the IQS450 signal conditioner, which it replaces. Accordingly, the IQS900 is compatible with all TQ9xx and TQ4xx proximity sensors / measurement chains.

In addition, the IQS900 signal conditioner includes improvements such as: SIL 2 “by design”, improved frame-voltage immunity, improved electromagnetic immunity and emissions, smaller output impedance (voltage output), optional diagnostic circuitry (that is, built-in self-test (BIST)), raw output pin, test input pin, new DIN-rail mounting adaptor and removable screw-terminal connectors for easier installation.

The TQ403 transducer can be matched with a single EA403 extension cable to effectively lengthen the front-end. Optional housings, junction boxes and interconnection protectors are available for the mechanical and environmental protection of the connection between the integral and extension cables.

TQ4xx-based proximity measurement systems can be powered by associated machinery monitoring systems such as VM600Mk2/VM600 modules (cards) or VibroSmart® modules, or by another power supply.

Parameters:

Product Model: TQ403 111-403-000-013 A1-B1-C086-D000-E050-F2-G048-H05
Nonlinearity and Hysteresis: ≤ 0.3% FS
Rise Time (High Frequency Model): < 10 µs
Electrical Interface: Aviation plug, M12 or DIN connector
Port/Thread Type: G¼ / ½ NPT, M12×1.5, M20×1.5, etc.

Features:

• Designed for the contactless measurement of relative vibration and axial displacement in turbines, compressors, pumps and fans
• 12 mm measurement range (Ø18 mm sensor)
• −40 to 180 °C operating temperature, IP68 protection rating
• 1.0, 5.0 or 10.0 m integral coaxial cable
• Certified for use in potentially explosive atmospheres

Applications

1. For use with TQxxx proximity measurement chains/systems
2. Allows easier probe (sensor) installation and gap adjustment
3. Ex applications
