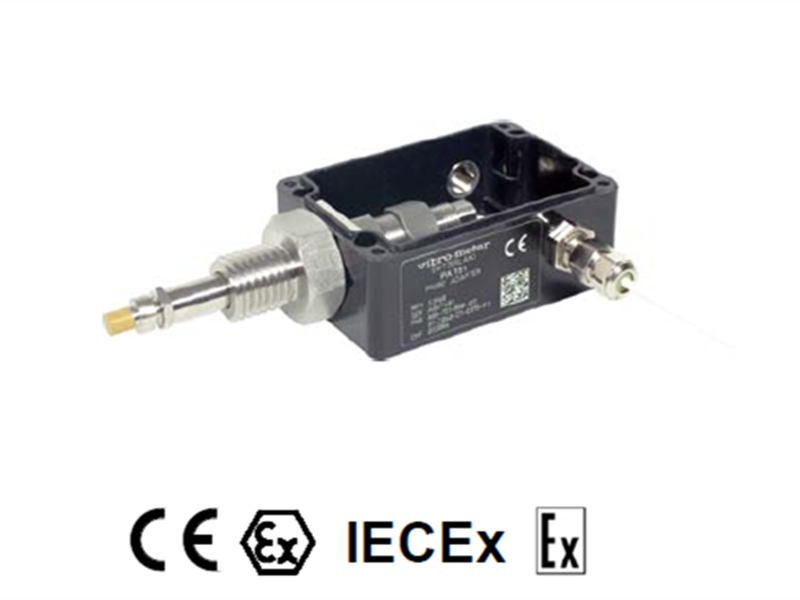

PA151 800-151-000-11x-B1-C240-D3-E015-F03 Probe Mounting Adaptor

Description:

The PA151 probe mounting adaptor is designed for use with TQxxx proximity measurement chains/ systems, from Meggitt’s vibro-meter® product line.

The PA151 probe mounting adaptor facilitates the external mounting of a reverse-mount proximity sensor such as the TQ912, without the need for machine disassembly. The removable housing and U-shaped retainer make it easier to adjust the gap or replace the sensor, even while the machine is running.

Designed for harsh industrial environments and certified for use in hazardous areas (potentially explosive atmospheres), the adjustable stainless-steel rod and polyester housing assembly protects the proximity sensor and the sensor to extension cable connection.

The PA151 probe mounting adaptor, together with a matching extension cable, optional protection (flexible stainless-steel hose) and cable feedthroughs makes installation easier and heps ensure the proper functioning of a proximity measurement chain/system.

Parameters:

Product Model: 800-151-000-11x-B1-C240-D3-E015-F03
Nonlinearity and Hysteresis: ≤ 0.3% FS
Rise Time (High Frequency Model): < 10 µs
Electrical Interface: Aviation plug, M12 or DIN connector
Port/Thread Type: G¼ / ½ NPT, M12×1.5, M20×1.5, etc.

Features:

• From the vibro-meter® product line

• For the external mounting of TQxxx proximity sensors

• Ex certified for use in hazardous areas (potentially explosive atmospheres)

• Removable housing, with a U-shaped retainer, that allows easier probe (sensor) installation and gap adjustment

• Sealed die-cast polyester housing

• Stainless steel rod available in lengths from 50 to 800 mm, with mounting position adjustable to ±10 mm

• Range of adaptor threads and lengths

• Choice of cable fittings (stuffing glands)

Applications

1. For use with TQxxx proximity measurement chains/systems
2. Allows easier probe (sensor) installation and gap adjustment
3. Ex applications
