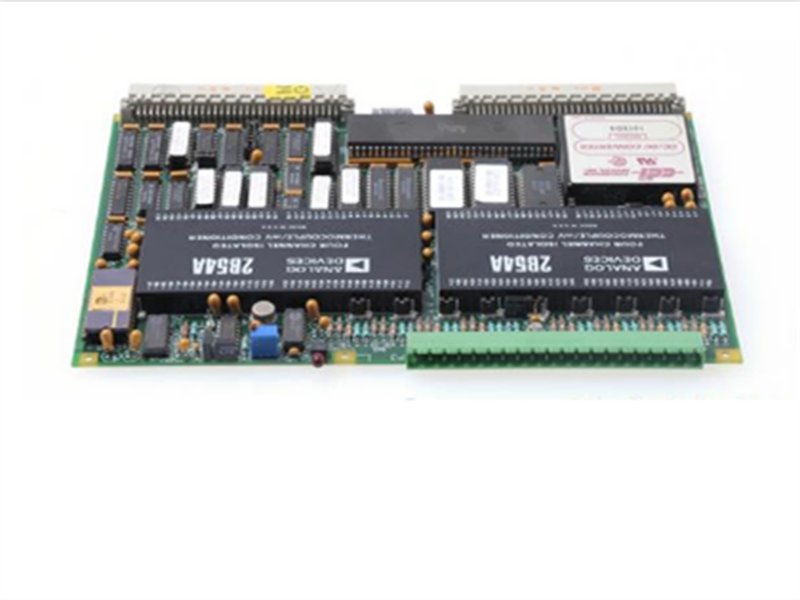

VMIC VMIVME-3230 GE Fanuc 8-Channel Thermocouple Board

Description:

This module is the VMIC/GE Fanuc VMIVME-3230 is an 8 channel, low level input board, designed for use with thermocouple inputs.

The board performs reference junction compensation for cold temperatures, and is able to provide linearization for a variety of thermocouple integrated products. All of the VMIVME-3230 inputs are both filtered and isolated. This ensures that this model’s inputs are protected against and possible normal overvoltage. There is also an optional configuration for this model, that is able to offer high-level inputs.

The thermocouple connections are made at a screw terminal block which connects directly to the front panel P3 connector.

The VMIVME-3230 unit is outfitted with a VMEbus Address Modifier, which is able to decode either of the I/O access. There is a single jumper module that is provided to support short supervisory access.

This unit is able designed with the application functions to monitor in the temperature measurement, as well as managing industrial control systems. There’s a set of machine instrumentation functions,and there is also an integrated Current loop receiver module.

SPECIFICATIONS:

Part Number: VMIVME-3230

Temperature range: -200℃ to +1372℃ (Type K thermocouple)
Linearity error: <0.1%FS (full scale)
Long-term stability: Drift ≤0.1℃/year
Operating temperature: -40℃ to +70℃ (requires heat dissipation module)
Interference immunity: 4kV ESD protection, compliant with IEC 61000-4-2 standard
Mechanical strength: Vibration resistance 10Grms (10-2000Hz), shock resistance 50Grms

Features:

-(8) Isolated, Differential Input Channels
-On-Board 16-Bit Microcomputer
-Accepts Multiple Thermocouple Types Simultaneously
-A/D Converter, 12-Bits Plus Sign
-Local or Remote Cold Junction Compensation

Datasheet Link:

VMIC VMIVME-3230 GE Fanuc 8-Channel Thermocouple Board PDF Datasheet
