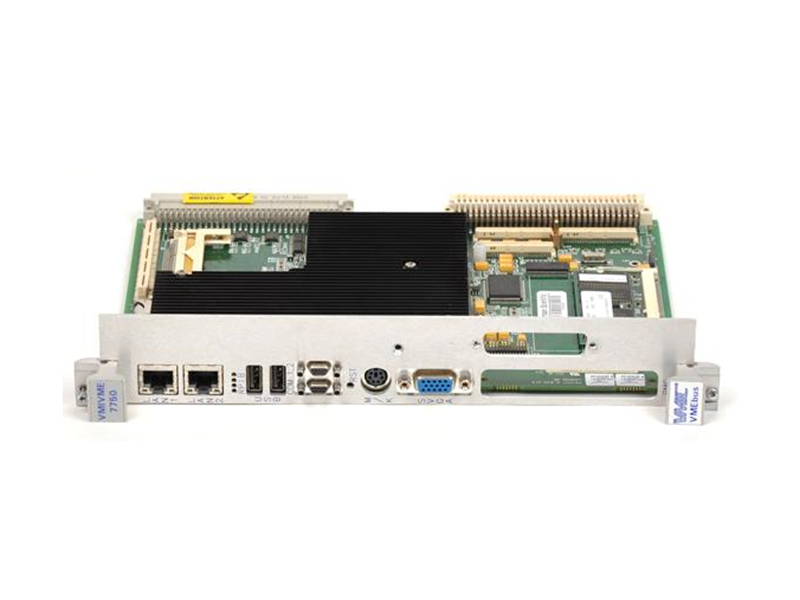

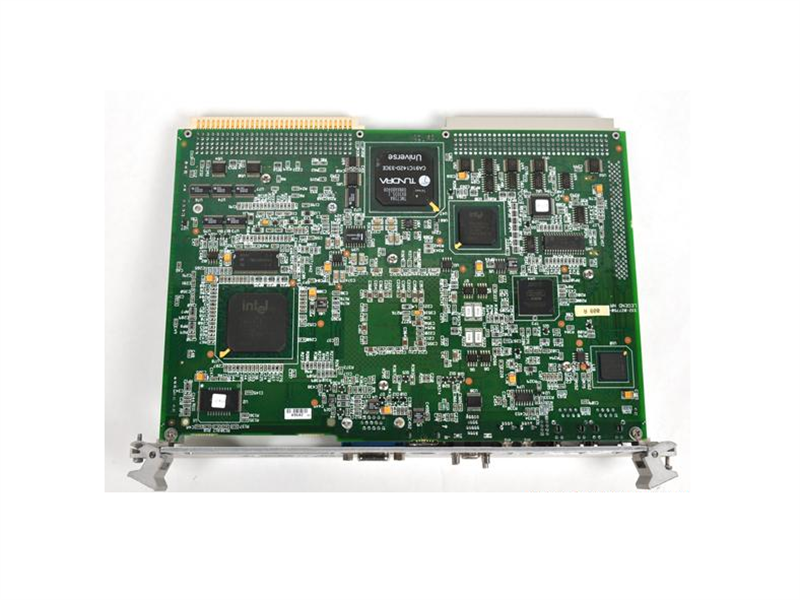

VMIVME-7750 GE Pentium III Processor-Based VME Single Board Computer

Description:

The GE VMIVME-7750 CPU is a processor-based VME (VMEbus) single board computer designed for high-performance applications requiring real-time control and monitoring.

It is built around the Intel® Pentium® III Processor, offering up to 1.26 GHz processing power with 512 Kbyte advanced transfer cache. The system supports up to 512 Mbyte PC133 SDRAM using a single SODIMM and features an internal AGP SVGA controller with 4 Mbyte display cache. It operates on a 133 MHz system bus via Intel® 815E chipset controllers, supporting 10BaseT and 100BaseTX Ethernet interfaces and dual Ethernet interfaces for networking.

SPECIFICATIONS:
Part Number: VMIVME-7750

• Up to 512 MB PC133 SDRAM
• Dual Ethernet
• Up to 1.26 GHz Pentium III processor with 512 KB advanced transfer cache
• PMC expansion site

Features:

• Up to 1.26 GHz Pentium® III processor with 512 Kbyte advanced transfer cache
• Up to 512 Mbyte PC133 SDRAM using a single SODIMM
• Internal AGP SVGA controller with 4 Mbyte display cache
• 133 MHz system bus via Intel® 815E chipset
• Dual Ethernet controllers supporting 10BaseT and 100BaseTX
• Remote Ethernet booting
• PMC expansion site
• Operating system support for Windows XP, Windows 2000,VxWorks@, SolarisTM, QNX@, LynxOS, and LinuxR

Datasheet Link:

VMIVME-7750 GE Pentium III Processor-Based VME Single Board Computer PDF Datasheet
