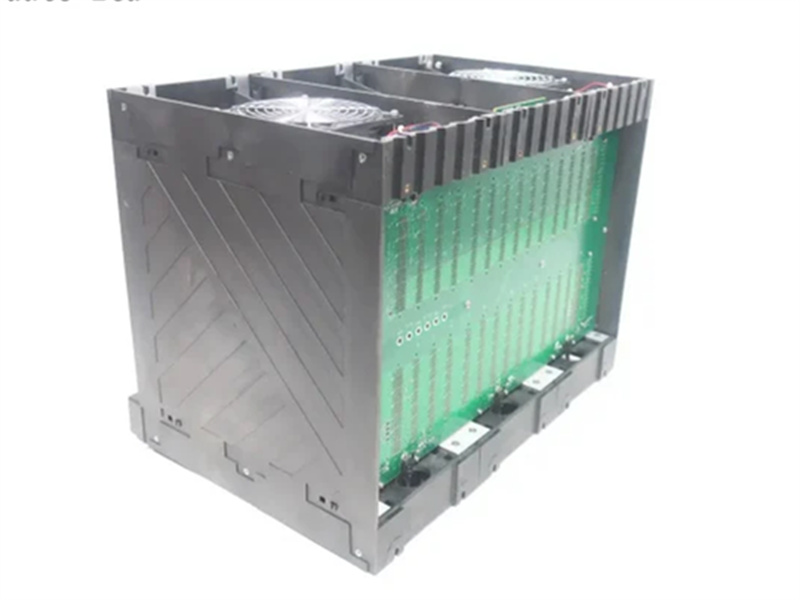

Woodward 5453-759 MicroNet Plus 14-Slot Redundant Chassis with Smart Fans

Description:

The Woodward 5453-759 MicroNet Plus 14‑Slot Redundant Chassis is a high‑availability enclosure designed for the MicroNet Plus digital control system. It features 14 slots for VME I/O modules, redundant power supply capability, and integrated smart fans for enhanced thermal management. The chassis supports hot‑swappable modules, allowing replacement without system shutdown. It is suitable for Class I Division 2 hazardous locations and is certified for marine applications (ABS, DNV, LRS). The backplane provides power distribution and communication buses (VME, CAN, etc.) between the CPU and I/O modules. This chassis is ideal for demanding turbine, engine, and generator control applications requiring high reliability and fault tolerance.

Key capabilities

• 14 slots for VME I/O modules (compatible with MicroNet Plus CPU and I/O cards)

• Supports redundant power supplies (24V DC, 120V AC/DC, or 220V AC)

• Integrated smart fans for forced airflow cooling (operating temperature range 0…+55 °C)

• Hot‑swappable module replacement without system power‑down

• Rugged construction suitable for industrial and marine environments

• Certified for Class I Division 2 hazardous locations (UL, ATEX Zone 2)

• Marine approvals: ABS, DNV, LRS (ENV1/ENV2)

• Backplane with VME bus, CAN bus, and power distribution (24V DC, up to 3 A per side connector)

• Sound level <70 dBA

• Compliant with CE (EMC and LVD) and RoHS

Applications

• Gas and steam turbine control systems

• Generator and power plant automation

• Compressor, pump, and fan control

• Marine propulsion control (ABS/DNV/LRS certified)

• High‑availability redundant control systems for critical processes

• Distributed I/O networks (LINKnet, RTCnet) as a central controller chassis

Quality Assurance

100% brand new original. 1-year warranty. In stock for fast delivery (1-3 weeks).
