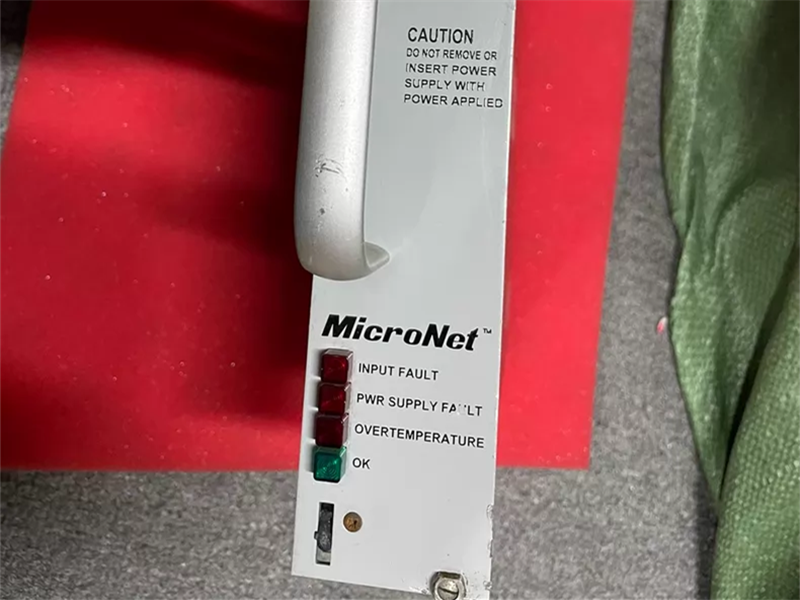

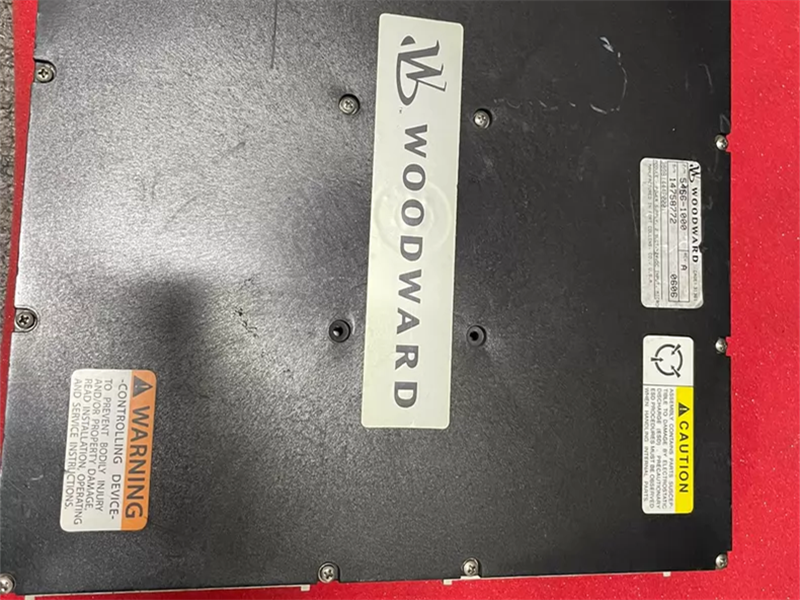

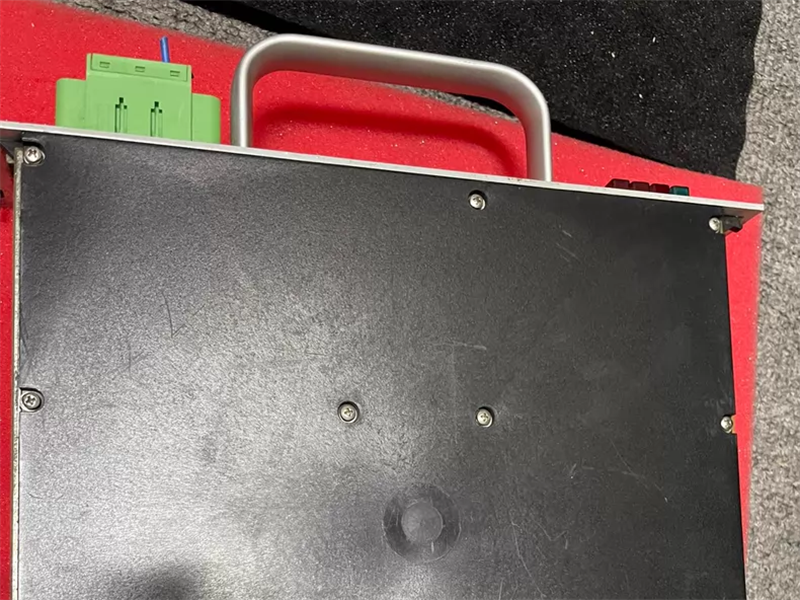

Woodward 5466-1000 MicroNet Plus 2-Slot Power Supply (24 VDC Input)

Description:

The Woodward 5466-1000 MicroNet Plus 2‑Slot Power Supply is a 24 VDC input power supply module designed for the MicroNet Plus control system chassis. It occupies two slots and provides regulated power to the backplane for CPU and I/O modules. This unit serves as a direct alternative to the 110 VAC/125 VDC version (5466‑1001), which is temporarily unavailable due to supply chain constraints. The 5466‑1000 is suitable for high‑availability industrial control applications and can be used in redundant power supply configurations. It complies with relevant safety and EMC standards for industrial environments.

Key capabilities

• Input voltage: 24 VDC nominal

• Occupies 2 slots in a MicroNet Plus chassis

• Supports redundant power supply configurations for increased system availability

• Provides reliable power to CPU, I/O, and communication modules

• Designed for industrial control environments (turbine, engine, generator controls)

• Compatible with MicroNet Plus 14‑slot and 8‑slot chassis

• Certified for use in Class I Division 2 hazardous locations

• Marine approvals available (ABS, DNV, LRS depending on system configuration)

Applications

• MicroNet Plus control system power for gas and steam turbines

• Generator and power plant automation

• Compressor and pump control systems

• Marine propulsion control (with applicable certifications)

• Redundant power supply setups for critical processes

Quality Assurance

100% brand new original. 1-year warranty. In stock for fast delivery (1-3 weeks).

Frequently Asked Questions

Q1: What is the input voltage of the 5466-1000?
A1: It accepts 24 VDC input. For 110 VAC/125 VDC or 220 VAC/250 VAC applications, see Woodward part numbers 5466‑1001 and 5466‑1002, respectively.

Q2: Is this module a direct replacement for the 5466-1001?
A2: Yes, it is a functional alternative but requires a 24 VDC power source instead of 110 VAC/125 VDC. System design must accommodate the different input voltage.

Q3: How many slots does it occupy?
A3: Two slots in a MicroNet Plus chassis.

Q4: Can I use two of these for redundant power?
A4: Yes, the MicroNet Plus chassis supports redundant power supply configurations. Two 5466‑1000 units can be installed for redundancy.

Q5: What is the weight of the module?
A5: Approximately 0.6 kg (1.3 lb). For exact specifications, refer to Woodward manual 26166V1.

Q6: Is the module certified for hazardous locations?
A6: Yes, it is suitable for Class I Division 2 hazardous locations when installed according to Woodward guidelines and with appropriate enclosure.
